Siemens 3RT2035-1NB34-3MA0 — Contactors

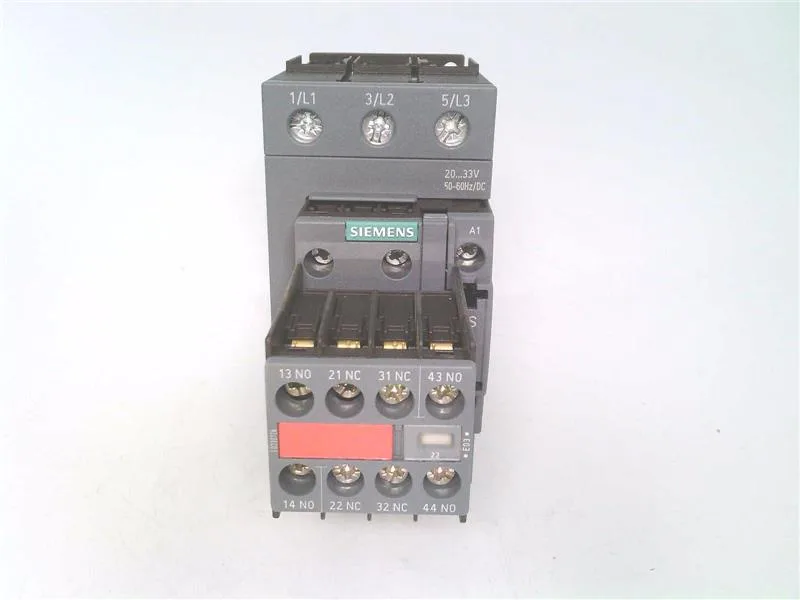

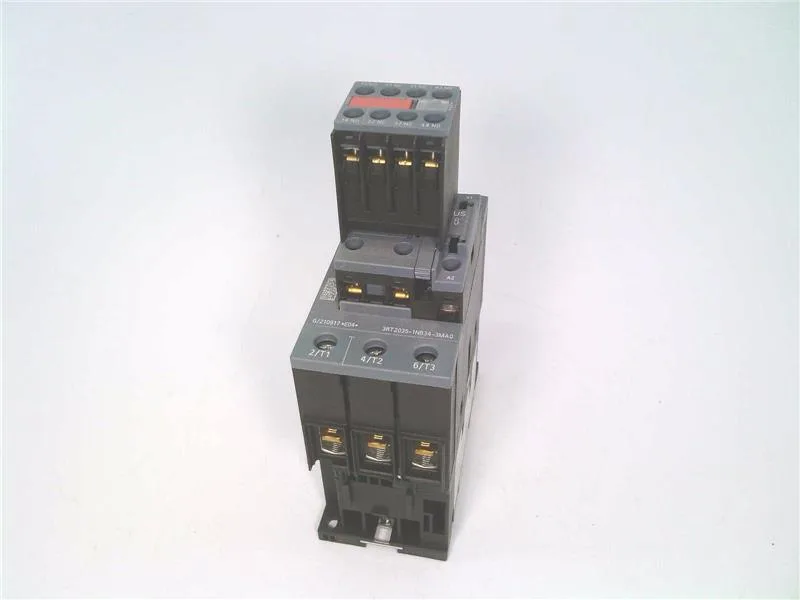

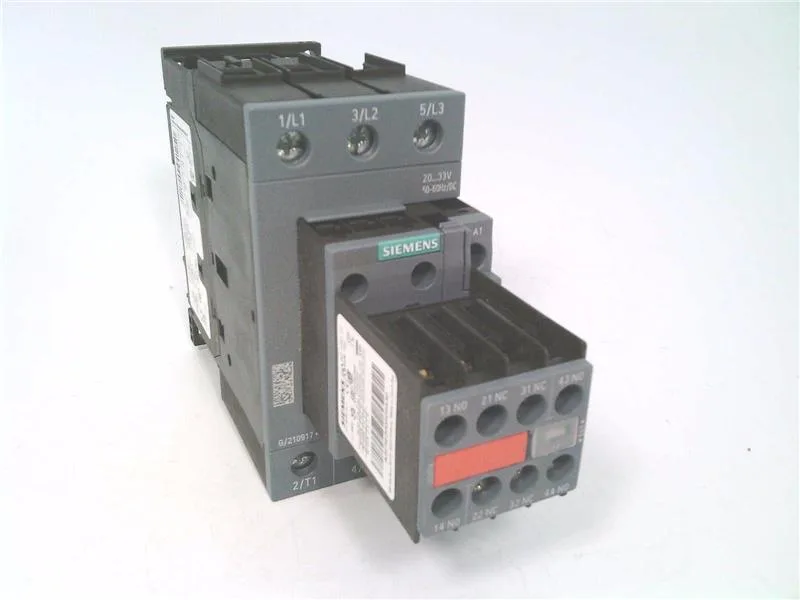

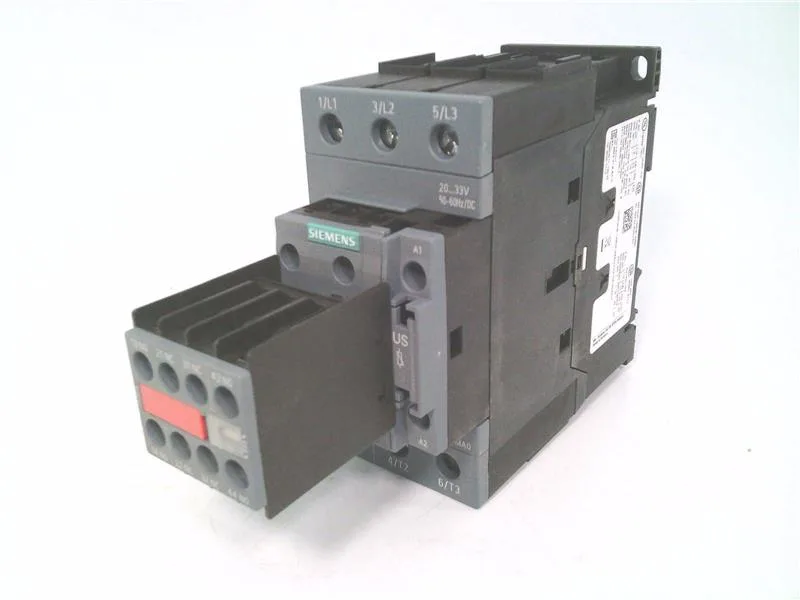

Siemens 3RT2035-1NB34-3MA0 SIRIUS Power Contactor, 55 mm

MPN3RT2035-1NB34-3MA0
Active

Siemens SIRIUS power contactor, size S2, 3RT2035-1NB34-3MA0, 55 mm width, 174 mm depth, screw-type coil terminals, 20–33 V coil, DIN rail mount.

$104.14Ref. price · indicative, final on quote
Siemens 3RT2035-1NB34-3MA0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RT2035-1NB34-3MA0 — Identification
ParameterValue
Contactor frame sizeS2
3RT2035-1NB34-3MA0 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V35 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V7.5 hp
Rated value @ 24 V6 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2035-1NB34-3MA0 — Control & Coil
ParameterValue
Control supply voltage typeAC/DC
Rated value @ 50 Hz2 VA
Rated value @ 50 Hz20 ... 33 V
3RT2035-1NB34-3MA0 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2035-1NB34-3MA0 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 160 A (690 V, 100 kA), aM: 80 A (690 V, 100 kA), BS88: 125 A (415 V, 80 kA)
Short-circuit coordination type 2, fusegG: 80A (690V,100kA), aM: 50A (690V,100kA), BS88: 63A (415V,80kA)
Aux. switch short-circuit protection, fusegG: 10 A (500 V, 1 kA)
3RT2035-1NB34-3MA0 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mountingYes
3RT2035-1NB34-3MA0 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2035-1NB34-3MA0 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2035-1NB34-3MA0 — Mechanical
ParameterValue
Width55 mm
Height114 mm
Depth174 mm
3RT2035-1NB34-3MA0 — Specifications
ParameterValue
At AC30 ... 55 ms

Product details

Siemens SIRIUS 3RT2035-1NB34-3MA0 — Power Contactor, Size S2

The coil accepts 20 to 33 V, with an inrush current peak of 3 A and holding current that drops from 6 A at 24 V to 0.3 A at 220 V. Coil terminals are screw-type, accepting 2x (0.5 to 1.5 mm²) or 2x (0.75 to 2.5 mm²) solid or stranded wire. Switching rates vary by duty: 1,200 cycles/hour at AC-1 maximum, 750 at AC-2, 1,000 at AC-3, and 300 at AC-4.

Dimensions are 55 mm wide, 114 mm high, and 174 mm deep. The contactor can be mounted on a vertical surface with +/-180° rotation and +/-22.5° forward/backward tilt. Clearance requirements: 10 mm upward, downward, and forward; 6 mm at the sides.

Frequently asked questions

Who supplies 3RT2035-1NB34-3MA0 and how is it quoted for volume purchases?

This part is supplied through independent distribution channels. Volume purchases are quoted against an RFQ; availability and pricing are confirmed at the time of quotation.

What is 3RT2035-1NB34-3MA0's listed depth (174 mm) on this component line?

The depth is 174 mm, with a width of 55 mm and height of 114 mm. Clearance of 10 mm is required upward, downward, and forward; 6 mm at the sides.

What compliance documentation does this brand provide for 3RT2035-1NB34-3MA0 (RoHS, REACH, UL, IEC)?

As a Siemens SIRIUS product, this contactor is designed to meet applicable IEC and UL standards. Specific compliance declarations (RoHS, REACH, UL file numbers) are available from the manufacturer's documentation portal.
