Siemens 3RT2036-1AB00 — Contactors

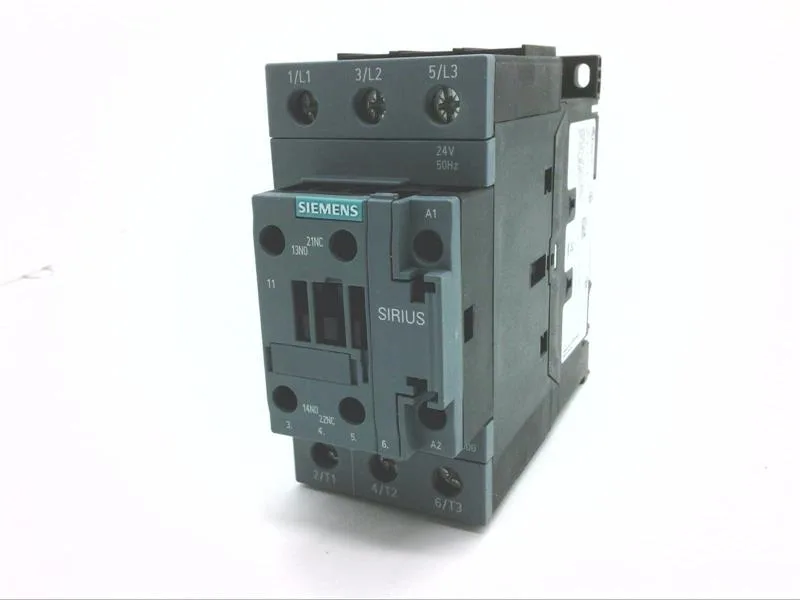

Siemens 3RT2036-1AB00 SIRIUS Power Contactor, 52 A at 480 V

MPN3RT2036-1AB00
Active

Siemens SIRIUS power contactor, 3RT2036-1AB00, size S2, 52 A rated current at 480 V AC-3, screw-type coil terminals, screw and snap-on mounting on 35 mm DIN rail.

$80.01Ref. price · indicative, final on quote
Siemens 3RT2036-1AB00 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT2036-1AB00 — Identification
ParameterValue
Contactor frame sizeS2
3RT2036-1AB00 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V41 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V10 hp
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2036-1AB00 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.37
Rated value @ 50 Hz24 V
3RT2036-1AB00 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2036-1AB00 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 160 A (690 V, 100 kA), aM: 80 A (690 V, 100 kA), BS88: 125 A (415 V, 80 kA)
Short-circuit coordination type 2, fusegG: 80A (690V,100kA), aM: 50A (690V,100kA), BS88: 63A (415V,80kA)
Aux. switch short-circuit protection, fusegG: 10 A (500 V, 1 kA)
3RT2036-1AB00 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mountingYes
3RT2036-1AB00 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2036-1AB00 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2036-1AB00 — Mechanical
ParameterValue
Width55 mm
Height114 mm
Depth130 mm
3RT2036-1AB00 — Specifications
ParameterValue
At AC10 ... 18 ms

Product details

The contactor is rated 52 A at 480 V AC-3, which covers the majority of 30–40 hp motor applications at that voltage.

Maximum switching rate varies by duty: 1,000 cycles per hour at AC-1 (resistive), 800 at AC-3 (motor start/run), 600 at AC-2 (slip-ring motor), and 250 at AC-4 (plugging/inching). Arcing time spans 10 to 20 ms, and the contactor's opening time at AC is 10 to 18 ms. Those numbers matter for coordination with upstream short-circuit protection — the breaker or fuse needs to clear before the contactor welds on a fault.

The S2 footprint is 55 mm wide, 114 mm tall, and 130 mm deep. Wire range for main contacts accepts two conductors per clamp: 0.5 to 1.5 mm² or 0.75 to 2.5 mm² solid or stranded. That covers standard panel wiring up to 12 AWG.

Frequently asked questions

Will 3RT2036-1AB00 drop into a panel specified around 3RT2016-1AD02 without rewiring?

The 3RT2036-1AB00 is a size S2 contactor, while the 3RT2016-1AD02 is a smaller frame. Panel cutouts and DIN rail spacing differ — verify the S2 footprint (55 mm wide, 114 mm tall, 130 mm deep) against the existing enclosure layout before substitution.
