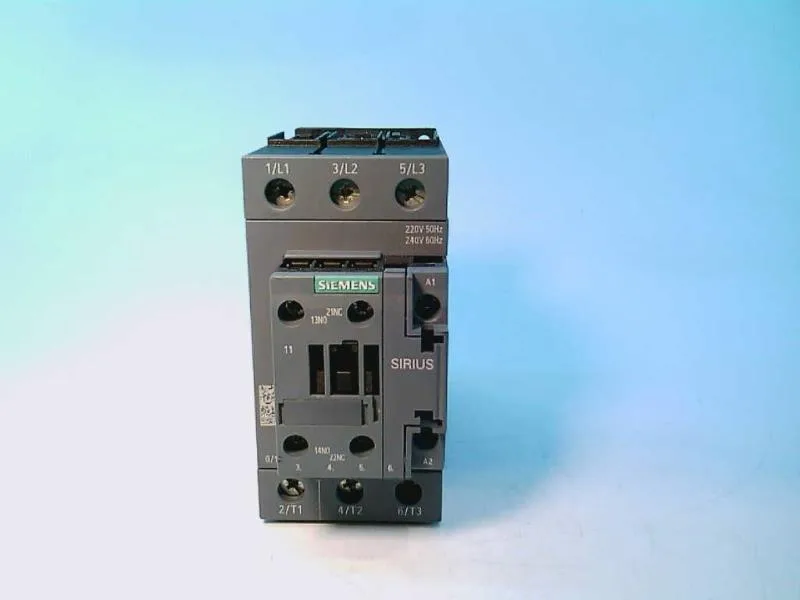

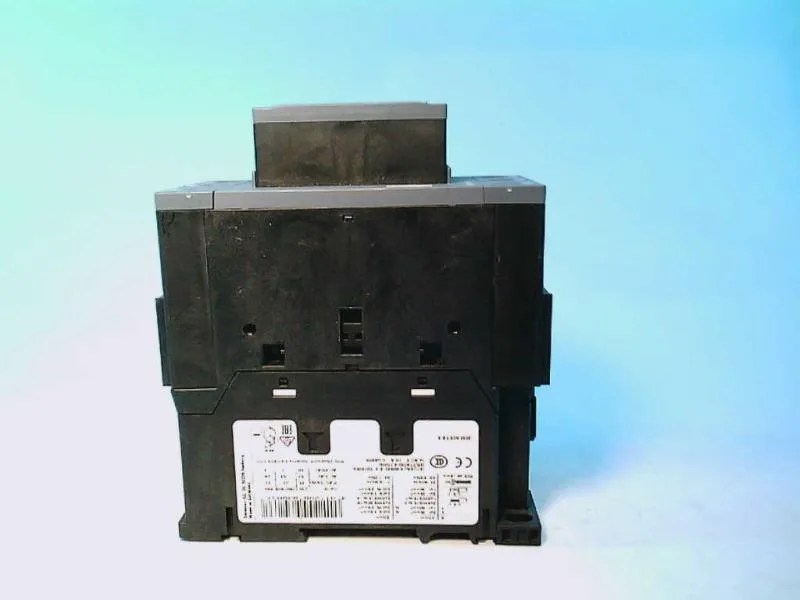

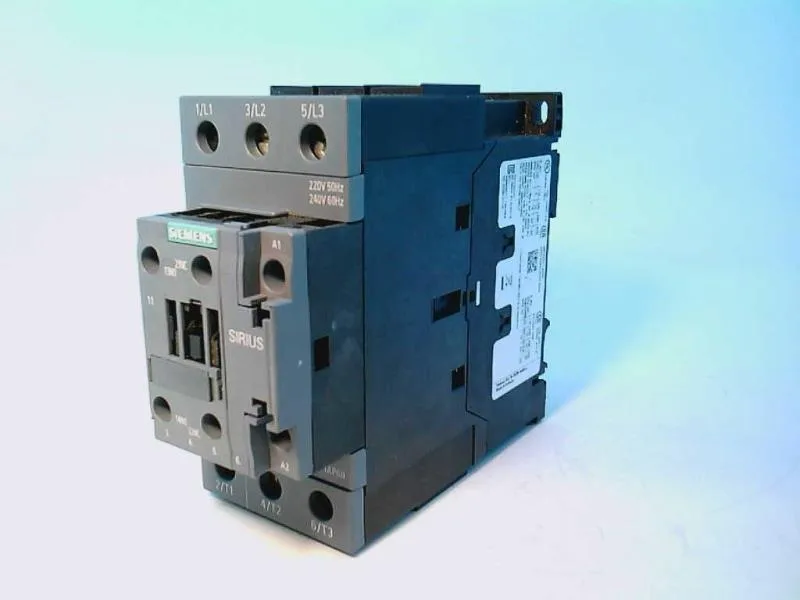

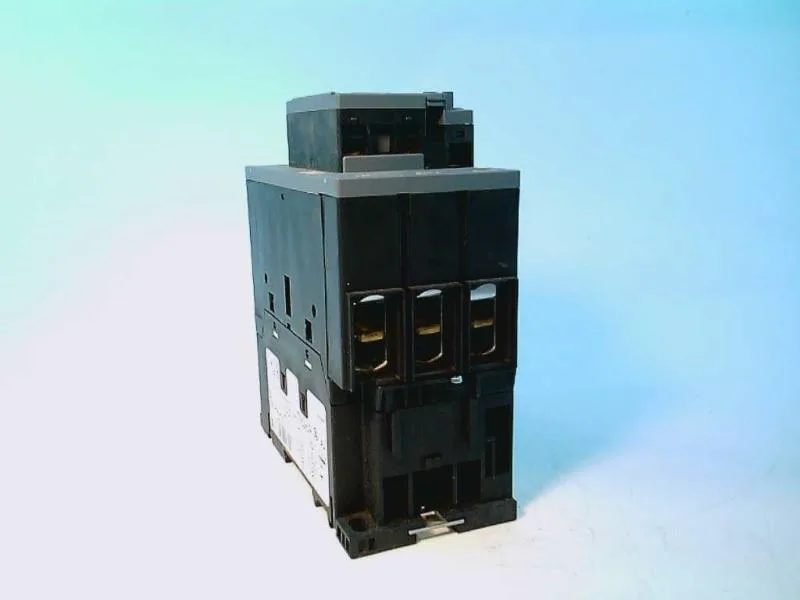

Siemens 3RT2036-1AP60 — Contactors

Siemens 3RT2036-1AP60 SIRIUS Power Contactor, Size S2, 52 A

MPN3RT2036-1AP60
Active

Siemens SIRIUS power contactor, Size S2, order code 3RT2036-1AP60, screw-type coil terminals, snap-on DIN rail, 52 A at 480 V.

$80.01Ref. price · indicative, final on quote
Siemens 3RT2036-1AP60 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RT2036-1AP60 — Identification
ParameterValue
Contactor frame sizeS2
3RT2036-1AP60 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V41 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V10 hp
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2036-1AP60 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.36
Rated value @ 50 Hz220 V
3RT2036-1AP60 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2036-1AP60 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 160 A (690 V, 100 kA), aM: 80 A (690 V, 100 kA), BS88: 125 A (415 V, 80 kA)
Short-circuit coordination type 2, fusegG: 80A (690V,100kA), aM: 50A (690V,100kA), BS88: 63A (415V,80kA)
Aux. switch short-circuit protection, fusegG: 10 A (500 V, 1 kA)
3RT2036-1AP60 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mountingYes
3RT2036-1AP60 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2036-1AP60 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2036-1AP60 — Mechanical
ParameterValue
Width55 mm
Height114 mm
Depth130 mm
3RT2036-1AP60 — Specifications
ParameterValue
At AC10 ... 18 ms

Product details

SIRIUS S2 Power Contactor — 3RT2036-1AP60

Its main contact configuration is 18...1, and it carries a 480 V rated value of 52 A — the headline figure for motor switching under AC-3 duty.

Duty Cycle and Mechanical Life

Mechanical switching rates vary by duty: 1 000 1/h at AC-1 (resistive), 800 1/h at AC-3 and AC-3e (motor start/run), 600 1/h at AC-2 (slip-ring motor), and 250 1/h at AC-4 (plugging/inching). Typical mechanical life is 10 000 000 operations. Arcing time is 10...20 ms, with a closing time of 10...18 ms at AC — important for coordination with upstream protection.

Dimensions and Wiring

Dimensions: 130 mm depth, 55 mm width, 114 mm height. Main contact terminals accept 2x (0.5...1.5 mm²) or 2x (0.75...2.5 mm²) solid or stranded wire.

Frequently asked questions

What is the depth of 3RT2036-1AP60?

The depth is 130 mm.

What is the width of 3RT2036-1AP60?

The width is 55 mm.

Where can I buy 3RT2036-1AP60?

This part is sourced and quoted to order against an RFQ through independent distribution, with availability and current pricing confirmed at quote time.

Will 3RT2036-1AP60 drop into a panel designed for 3RT2016-1AG62?

Both are SIRIUS contactors, but the 3RT2036-1AP60 is a Size S2 frame with a 52 A rating at 480 V, while the 3RT2016-1AG62 is a smaller frame. Panel cutouts and busbar spacing for the larger S2 footprint must be verified before substitution.
