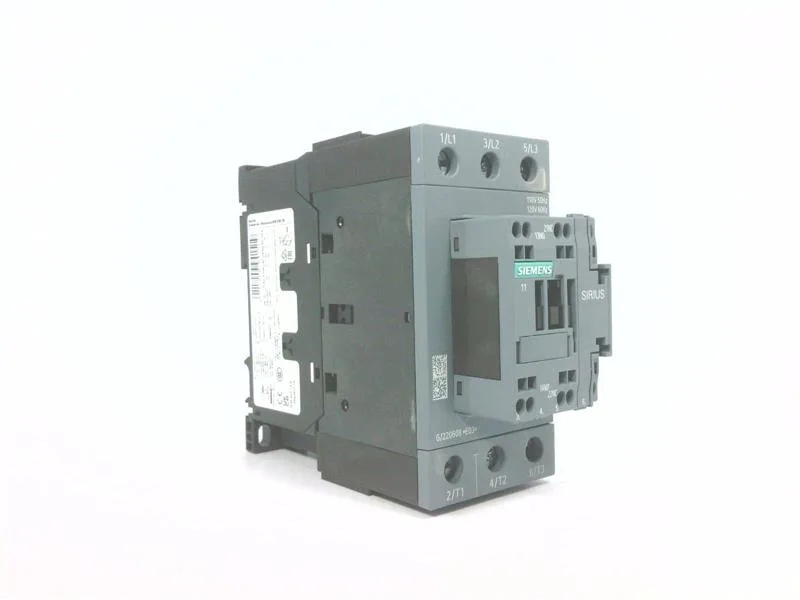

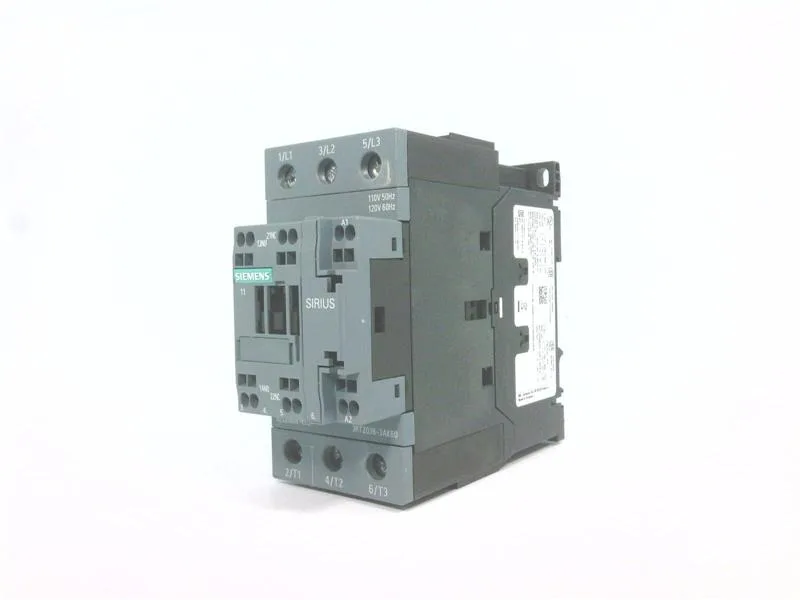

Siemens SIRIUS S2 power contactor in the 3RT2036-3AK60 configuration, built for motor switching on 35 mm DIN rail. Spring-type terminals on the magnet coil eliminate exposed screw heads — fewer crevices to trap debris in washdown zones. Mounts in any rotation up to ±180° on vertical surfaces, with ±22.5° forward/backward tilt, so you can orient it to drain condensation. Operating range -25 to +60 °C suits refrigerated or heated plant floors; storage holds -55 to +80 °C for spares.
Switching duty and thermal limitations
Rated for 800 operations per hour at AC-3 (motor switching) and 1 000 ops/h at AC-1 (resistive). AC-4 (plugging/inching) caps at 250 ops/h — stay within the lower cycle rate for high-inertia loads where the arcing time (10–20 ms) accumulates heat. The 10 million typical mechanical life means the coil spring and contacts outlast most line life; you'll replace the panel before the contactor wears out.
Active production, standard BOM line
Lifecycle stage is marked 'current' — still fully manufactured, no phase-out date. Sourced through Siemens authorized channels. We quote to order against your blanket or single-shot PO.
Snaps onto 35 mm DIN rail per DIN EN 60715; screw mount also possible. Clearance: 10 mm above, below, and forward, 6 mm side. Wire size 2x 0.5–2.5 mm² solid or stranded.
