Siemens 3RT2037-1AG60 — Contactors

Siemens 3RT2037-1AG60 SIRIUS Power Contactor, 65 A at 480 V

MPN3RT2037-1AG60
Active

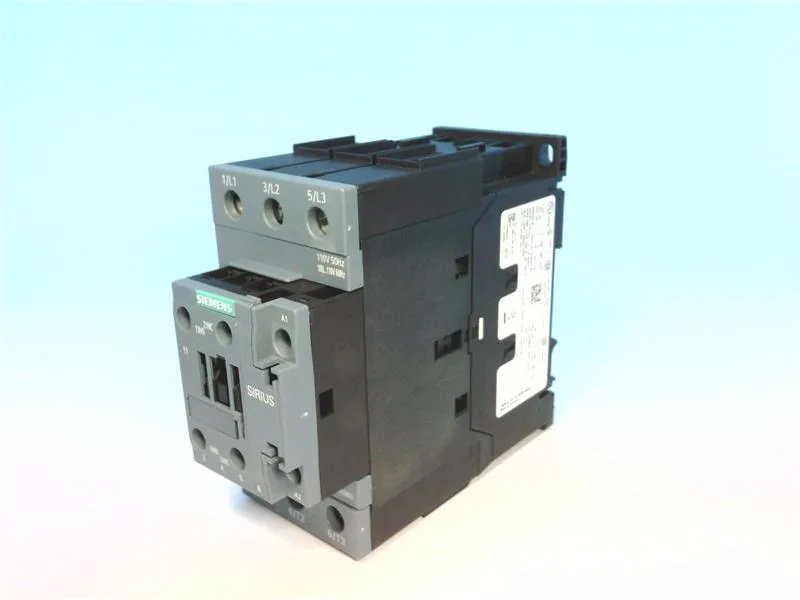

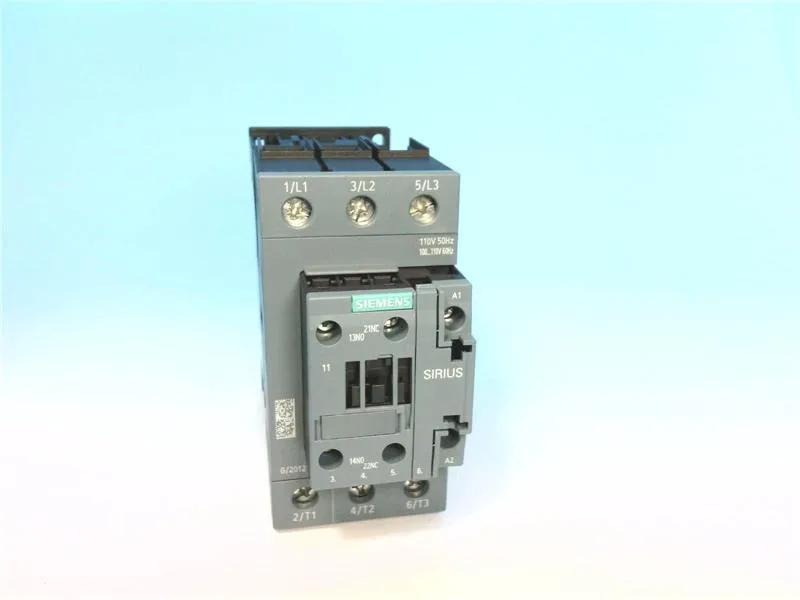

Siemens SIRIUS, power contactor, 3RT2037-1AG60, Size S2, 65 A at 480 V, screw-type coil terminals, screw and snap-on mounting on 35 mm DIN rail.

$114.30Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT2037-1AG60 — Identification
ParameterValue
Contactor frame sizeS2
3RT2037-1AG60 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V55 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V10 hp
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2037-1AG60 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.36
Rated value @ 50 Hz100 V
3RT2037-1AG60 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2037-1AG60 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 250 A (690 V, 100 kA), aM: 160 A (690 V, 100 kA), BS88: 200 A (415 V, 80 kA)
Short-circuit coordination type 2, fusegG: 125A (690V,100kA), aM: 63A (690V,100kA), BS88: 100A (415V,80kA)
Aux. switch short-circuit protection, fusegG: 10 A (500 V, 1 kA)
3RT2037-1AG60 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mountingYes
3RT2037-1AG60 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2037-1AG60 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2037-1AG60 — Mechanical
ParameterValue
Width55 mm
Height114 mm
Depth130 mm
3RT2037-1AG60 — Specifications
ParameterValue
At AC10 ... 18 ms

Product details

The Siemens SIRIUS 3RT2037-1AG60 is a Size S2 power contactor rated for 65 A at 480 V — that's the AC-3 motor-switching current, so it handles a 65 A induction motor load at that voltage without welding the main contacts. The coil is screw-type terminals, which means the control wiring lands under a screw clamp, not a spring cage; factor that into your panel wiring labor. It mounts via screw and snap-on onto 35 mm DIN rail per DIN EN 60715, and the mounting position is flexible: ±180° rotation on a vertical surface, plus ±22.5° tilt forward/backward — useful when you're squeezing it into a tight enclosure.

The depth is 130 mm, width 55 mm, height 114 mm, so it fits a standard 55 mm-wide DIN-rail slot.

Switching performance and auxiliary contacts

It comes with an auxiliary switch (1 NO + 1 NC configuration for the main contacts). Maximum switching rates vary by duty: 800 operations/hour at AC-1 (resistive), 700 at AC-3 (motor), 400 at AC-2 (slip-ring motor), and 200 at AC-4 (plugging/inching). The coil operates at 100 V, 50 Hz with a power factor of 0.36; at 60 Hz it draws 0.39 A.

Frequently asked questions

Where can I buy 3RT2037-1AG60?

Sourced and quoted to order against an RFQ through independent distribution; availability and current pricing are confirmed at quote time.

What is the depth of 3RT2037-1AG60?

The depth is 130 mm.

What is the width of 3RT2037-1AG60?

The width is 55 mm.

Will 3RT2037-1AG60 drop into a panel specified for 3RT2016-1AG62 without rewiring?

The 3RT2037-1AG60 is a Size S2 contactor; the 3RT2016-1AG62 is a smaller frame. The footprint and terminal spacing differ — expect to redrill the mounting holes and re-lay the power wiring. The coil voltage and auxiliary contact arrangement may also differ, so verify the control circuit before swapping.
