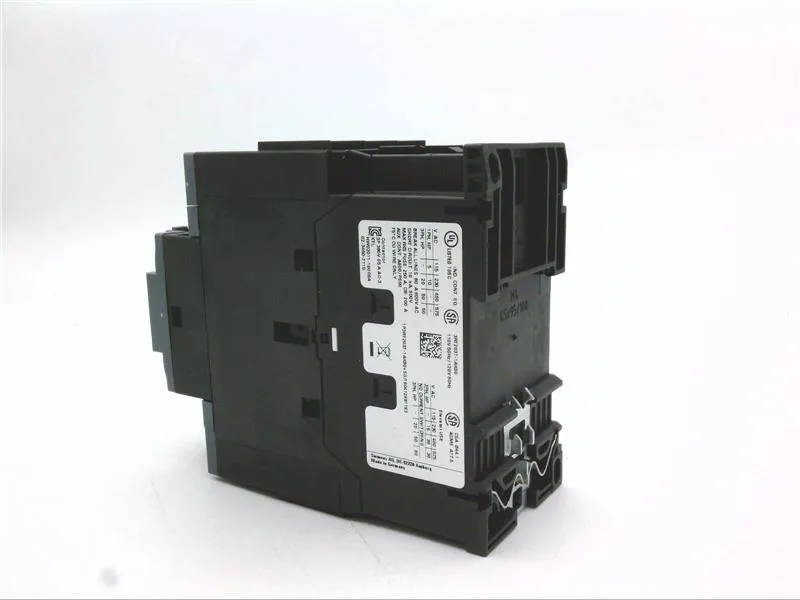

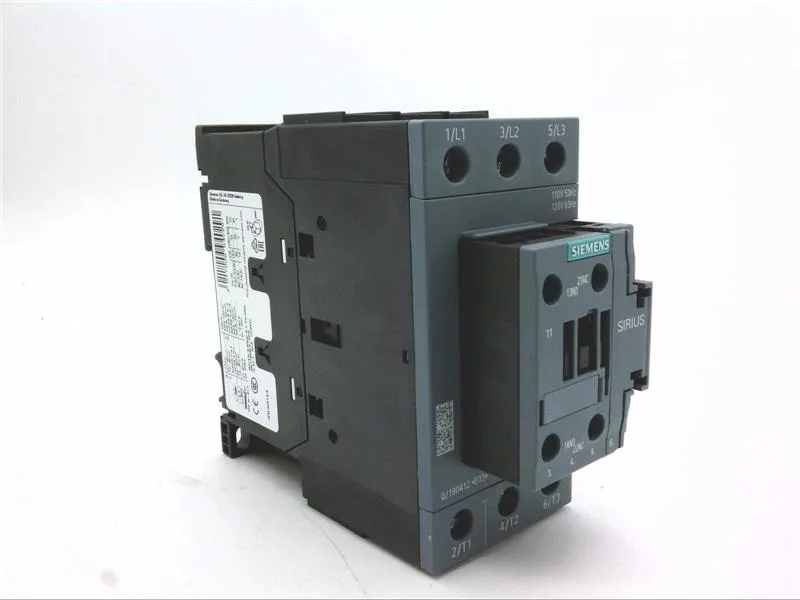

Siemens SIRIUS 3RT2037-1AK60 power contactor, S2 frame, 65 A rated operational current at 480 V, coil 110 V 50 Hz, 1 NO + 1 NC auxiliary, screw terminals, -25 to +60 °C.
| Parameter | Value |
|---|---|
| Contactor frame size | S2 |
| Parameter | Value |
|---|---|
| Rated operational current, AC-12, max. | 10 A |
| Rated operational current, AC-4 @ 400 V | 55 A |
| Rated value @ 400 V | 3 A |
| Rated value @ 500 V | 2 A |
| Rated value @ 690 V | 1 A |
| Rated value @ 230 V | 10 hp |
| Rated value @ 24 V | 10 A |
| Rated value @ 60 V | 2 A |
| Rated value @ 110 V | 1 A |
| Rated value @ 220 V | 0.3 A |
| Parameter | Value |
|---|---|
| Control supply voltage type | AC |
| Rated value @ 50 Hz | 0.36 |
| Rated value @ 50 Hz | 110 V |
| Parameter | Value |
|---|---|
| Main poles | 3 |
| Main NO contacts | 3 |
| Auxiliary contact reliability | 1 faulty switching per 100 million (17 V, 1 mA) |
| Parameter | Value |
|---|---|
| Short-circuit coordination type 1, fuse | gG: 250 A (690 V, 100 kA), aM: 160 A (690 V, 100 kA), BS88: 200 A (415 V, 80 kA) |
| Short-circuit coordination type 2, fuse | gG: 125A (690V,100kA), aM: 63A (690V,100kA), BS88: 100A (415V,80kA) |
| Aux. switch short-circuit protection, fuse | gG: 10 A (500 V, 1 kA) |
| Parameter | Value |
|---|---|
| Main circuit connection | screw-type terminals |
| Aux. / control circuit connection | screw-type terminals |
| Conductor cross-section, solid or stranded | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Conductor cross-section, finely stranded w/ ferrule | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Mounting method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715 |
| Side-by-side mounting | Yes |
| Parameter | Value |
|---|---|
| Durability (operating cycles, typ.) | 10 000 000 |
| Durability with aux. switch block (cycles, typ.) | 10 000 000 |
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -55 ... +80 °C |
| Installation altitude, max. | 2 000 m |
| Parameter | Value |
|---|---|
| Width | 55 mm |
| Height | 114 mm |
| Depth | 130 mm |
| Parameter | Value |
|---|---|
| At AC | 10 ... 18 ms |
Clearance left side 6 mm – that is the tightest gap for heat rise. Upwards, forwards, downwards each 10 mm; stacking contactors side-by-side at 6 mm pitch is acceptable within ratings. Mounting orientation: +/-180° rotation on vertical surface, +/-22.5° tilt forward/backward – covers awkward cabinet orientations.
Lifecycle status reflects current production.
65 A at 480 V AC (from the spec table). Equivalent motor rating is 10 hp at 230 V.
Left side 6 mm minimum; upwards, forwards, and downwards each 10 mm.
