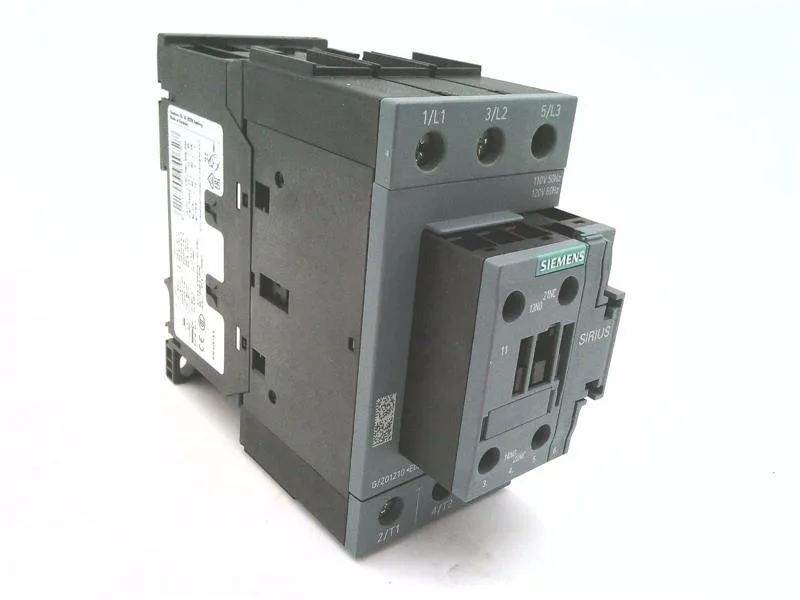

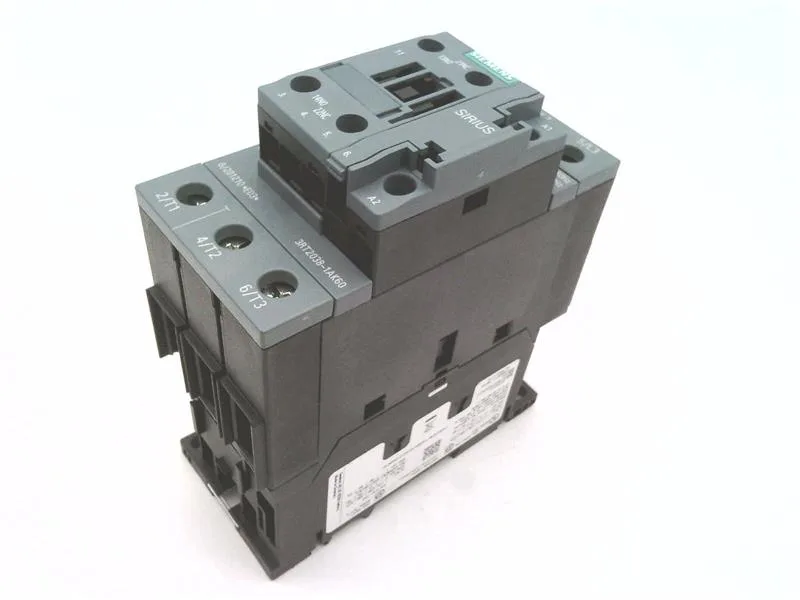

Siemens SIRIUS power contactor, size S2, order code 3RT2038-1AK60, rated 65 A at 480 V, 10,000,000 mechanical operations.
Siemens 3RT2038-1AK60 SIRIUS Contactor, 65 A at 480 V
MPN3RT2038-1AK60
Active
Siemens SIRIUS power contactor, size S2, order code 3RT2038-1AK60, rated 65 A at 480 V, 10,000,000 mechanical operations.
$113.03Ref. price · indicative, final on quote
StockContact for availability
Lead timeCall for availability wk
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Contactor frame size | S2 |
Ratings & Performance
| Parameter | Value |
|---|---|
| Rated operational current, AC-12, max. | 10 A |
| Rated operational current, AC-4 @ 400 V | 55 A |
| Rated value @ 400 V | 3 A |
| Rated value @ 500 V | 2 A |
| Rated value @ 690 V | 1 A |
| Rated value @ 230 V | 15 hp |
| Rated value @ 24 V | 10 A |
| Rated value @ 60 V | 2 A |
| Rated value @ 110 V | 1 A |
| Rated value @ 220 V | 0.3 A |
Control & Coil
| Parameter | Value |
|---|---|
| Control supply voltage type | AC |
| Rated value @ 50 Hz | 0.36 |
| Rated value @ 50 Hz | 110 V |
Contacts & Poles
| Parameter | Value |
|---|---|
| Main poles | 3 |
| Main NO contacts | 3 |
| Auxiliary contact reliability | 1 faulty switching per 100 million (17 V, 1 mA) |
Protection & Coordination
| Parameter | Value |
|---|---|
| Short-circuit coordination type 1, fuse | gG: 250 A (690 V, 100 kA), aM: 160 A (690 V, 100 kA), BS88: 200 A (415 V, 80 kA) |
| Short-circuit coordination type 2, fuse | gG: 160A (690V,100kA), aM: 80A (690V,100kA), BS88: 125A (415V,80kA) |
| Aux. switch short-circuit protection, fuse | gG: 10 A (500 V, 1 kA) |
Connection & Mounting
| Parameter | Value |
|---|---|
| Main circuit connection | screw-type terminals |
| Aux. / control circuit connection | screw-type terminals |
| Conductor cross-section, solid or stranded | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Conductor cross-section, finely stranded w/ ferrule | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Mounting method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715 |
| Side-by-side mounting | Yes |
Durability
| Parameter | Value |
|---|---|
| Durability (operating cycles, typ.) | 10 000 000 |
| Durability with aux. switch block (cycles, typ.) | 10 000 000 |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -55 ... +80 °C |
| Installation altitude, max. | 2 000 m |
Mechanical
| Parameter | Value |
|---|---|
| Width | 55 mm |
| Height | 114 mm |
| Depth | 130 mm |
Specifications
| Parameter | Value |
|---|---|
| At AC | 10 ... 18 ms |
Product details
Frequently asked questions
What is the depth of the 3RT2038-1AK60?
The depth is 130 mm.
What is the width of the 3RT2038-1AK60?
The width is 55 mm.
What is the mechanical life of the 3RT2038-1AK60?
The typical mechanical life is 10,000,000 operations.
