Siemens 3RT2045-1AP60 — Contactors

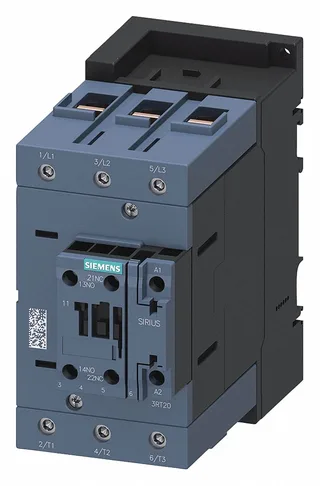

Siemens 3RT2045-1AP60 SIRIUS Power Contactor, S3, Auxiliary

MPN3RT2045-1AP60
Active

Siemens SIRIUS 3RT2045-1AP60 S3 power contactor, screw-type coil terminals, auxiliary switch, 152 mm depth.

$742.83Ref. price · indicative, final on quote
Siemens 3RT2045-1AP60 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RT2045-1AP60 — Identification
ParameterValue
Contactor frame sizeS3
3RT2045-1AP60 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V66 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V15 hp
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2045-1AP60 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.36
Rated value @ 50 Hz220 V
3RT2045-1AP60 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2045-1AP60 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 250 A (690 V, 100 kA), aM: 160 A (690 V, 100 kA), BS88: 200 A (415 V, 80 kA)
Short-circuit coordination type 2, fusegG: 160A (690V,100kA), aM: 80A (690V,100kA), BS88: 125A (415V,80kA)
Aux. switch short-circuit protection, fusegG: 10 A (500 V, 1 kA)
3RT2045-1AP60 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid2.5 ... 16 mm²
Conductor cross-section, solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715
Side-by-side mountingYes
3RT2045-1AP60 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2045-1AP60 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2045-1AP60 — Mechanical
ParameterValue
Width70 mm
Height140 mm
Depth152 mm
3RT2045-1AP60 — Specifications
ParameterValue
At AC10 ... 21 ms

Product details

The 3RT2045-1AP60: Mount it screw-and-snap onto 35 mm DIN rail. Clearances: 10 mm upwards, downwards, and to the side; 20 mm forward. Wire terminals accept solid from 2.5 to 16 mm², stranded from 6 to 70 mm²—big enough for the power feeds without needing pin lugs on most panel builds. The control circuit (coil) takes 2x (0.5 to 1.5 mm²) or 2x (0.75 to 2.5 mm²) solid or stranded.

If you're planning a panel variant, the S3 frame size is shared with other amps in the 3RT2 family. The auxiliary contact block integrates on the front. No known substitution without verifying the current spec—this one is sized at the S3 frame.

Frequently asked questions

What is the depth of 3RT2045-1AP60?

The depth is 152 mm. This includes the contactor body; allow additional clearance for wiring and arc space as per the clearances listed (10 mm above/below/side, 20 mm forward).

What solid wire range does 3RT2045-1AP60 accept?

The main power terminals accept solid conductors from 2.5 to 16 mm². Stranded conductors are accepted from 6 to 70 mm².

What are the ambient operating and storage temperatures?

During operation, the ambient temperature range is -25 to +60 °C. During storage, the range is -55 to +80 °C.
