Siemens 3RT2046-1AH00 — Contactors

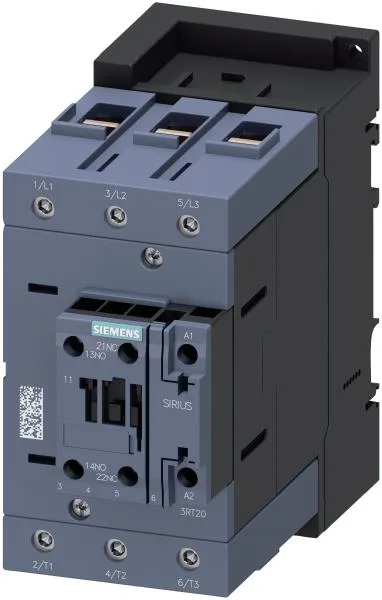

Siemens 3RT2046-1AH00 SIRIUS Power Contactor, 96 A at 480 V

MPN3RT2046-1AH00
Active

Siemens SIRIUS power contactor, size S3, 3RT2046-1AH00, 96 A at 480 V AC-3, screw-type terminals, snap-on 35 mm DIN rail.

$172.72Ref. price · indicative, final on quote
Siemens 3RT2046-1AH00 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT2046-1AH00 — Identification
ParameterValue
Contactor frame sizeS3
3RT2046-1AH00 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V80 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V20 hp
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2046-1AH00 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.38
Rated value @ 50 Hz48 V
3RT2046-1AH00 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2046-1AH00 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 250 A (690 V, 100 kA), aM: 160 A (690 V, 100 kA), BS88: 200 A (415 V, 80 kA)
Short-circuit coordination type 2, fusegG: 160 A (690 V, 100 kA), aM: 100 A (690 V, 100 kA), BS88: 125 A (415 V, 80 kA)
Aux. switch short-circuit protection, fusegG: 10 A (500 V, 1 kA)
3RT2046-1AH00 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid2.5 ... 16 mm²
Conductor cross-section, solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mountingYes
3RT2046-1AH00 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2046-1AH00 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2046-1AH00 — Mechanical
ParameterValue
Width70 mm
Height140 mm
Depth152 mm
3RT2046-1AH00 — Specifications
ParameterValue
At AC10 ... 21 ms

Product details

SIRIUS S3 power contactor — 96 A at 480 V, screw terminals

The Siemens SIRIUS 3RT2046-1AH00 is a size S3 power contactor rated for 96 A at 480 V in AC-3 duty, making it suitable for switching three-phase motor loads up to that current in industrial control panels. Coil termination uses screw-type terminals; the same terminal type is used for power and auxiliary connections.

Fastens via screw and snap-on mounting onto 35 mm DIN rail per DIN EN 60715, with a width of 70 mm, height 140 mm, and depth 152 mm — fits standard panel layouts.

Duty ratings and switching frequency

Switching frequency varies by duty: AC-1 (resistive) max 900 cycles/hour, AC-2 (slip-ring motor) max 350, AC-3 (squirrel-cage motor) max 850, AC-3e (enhanced) also 850, AC-4 (plugging/inching) max 250 cycles/hour. Arcing time is 10–20 ms; operate time at AC is 10–21 ms.

Lifecycle stage is current. Mechanical life typical 10 million operations. Wire range: solid 2.5–16 mm², stranded 6–70 mm²; auxiliary contacts accept 2x (0.5–1.5 mm²) or 2x (0.75–2.5 mm²).

Frequently asked questions

What is the closest functional second-source to 3RT2046-1AH00?

The 3RT2037-1AL20-ZX95 is a smaller SIRIUS contactor; it will not drop into the same panel without rewiring because the S3 frame (70 mm wide, 152 mm deep) differs from the smaller S2 frame.

What compliance documentation does this contactor carry?

The product is designed to meet IEC/EN 60947-4-1 and UL/CSA standards for contactors; documentation includes RoHS and REACH declarations from Siemens.
