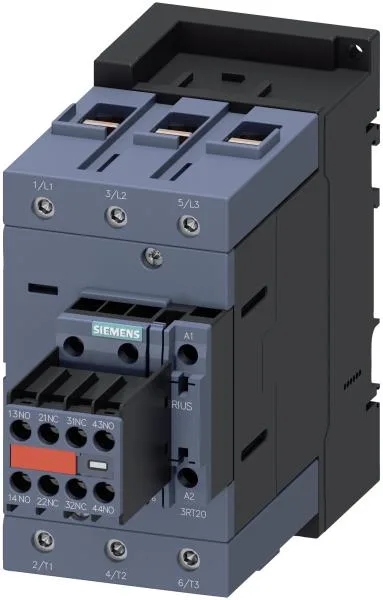

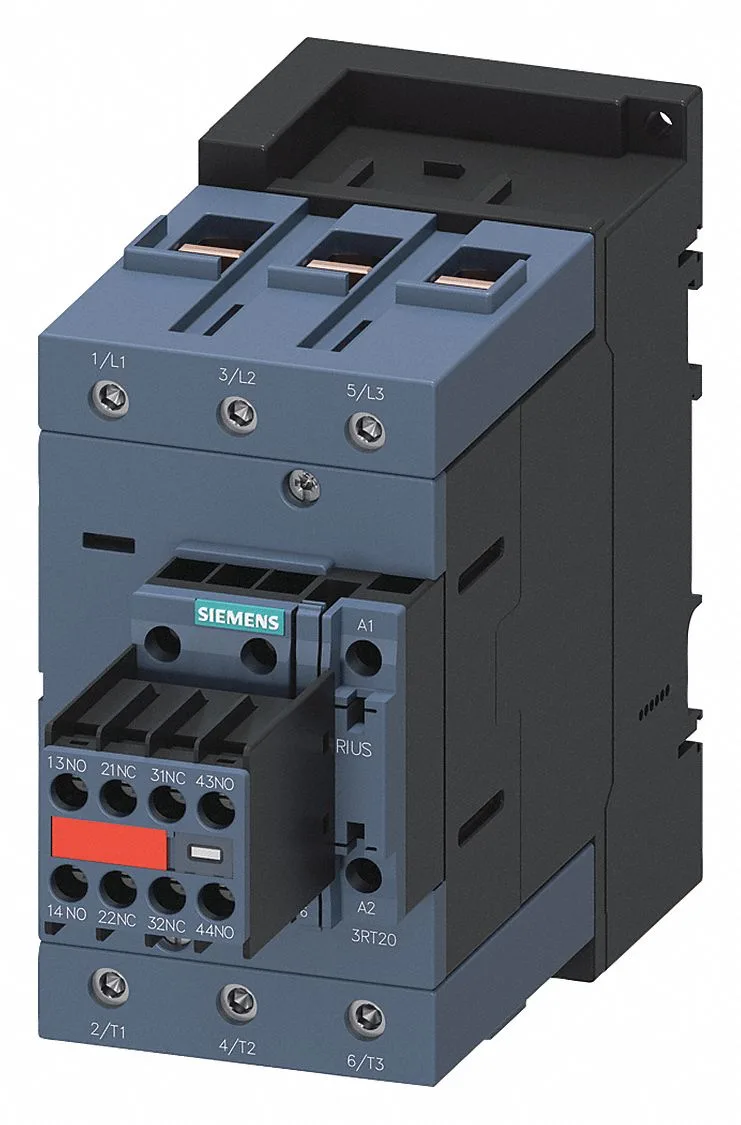

Siemens SIRIUS power contactor, S3 frame, 3RT2046-1AK64-3MA0, 195 mm depth, 70 mm width, screw-type coil terminals.
| Parameter | Value |
|---|---|
| Contactor frame size | S3 |
| Parameter | Value |
|---|---|
| Rated operational current, AC-12, max. | 10 A |
| Rated operational current, AC-4 @ 400 V | 80 A |
| Rated value @ 400 V | 3 A |
| Rated value @ 500 V | 2 A |
| Rated value @ 690 V | 1 A |
| Rated value @ 230 V | 20 hp |
| Rated value @ 24 V | 6 A |
| Rated value @ 60 V | 2 A |
| Rated value @ 110 V | 1 A |
| Rated value @ 220 V | 0.3 A |
| Parameter | Value |
|---|---|
| Control supply voltage type | AC |
| Rated value @ 50 Hz | 0.36 |
| Rated value @ 50 Hz | 110 V |
| Parameter | Value |
|---|---|
| Main poles | 3 |
| Main NO contacts | 3 |
| Auxiliary contact reliability | 1 faulty switching per 100 million (17 V, 1 mA) |
| Parameter | Value |
|---|---|
| Short-circuit coordination type 1, fuse | gG: 250 A (690 V, 100 kA), aM: 160 A (690 V, 100 kA), BS88: 200 A (415 V, 80 kA) |
| Short-circuit coordination type 2, fuse | gG: 160 A (690 V, 100 kA), aM: 100 A (690 V, 100 kA), BS88: 125 A (415 V, 80 kA) |
| Aux. switch short-circuit protection, fuse | gG: 10 A (500 V, 1 kA) |
| Parameter | Value |
|---|---|
| Main circuit connection | screw-type terminals |
| Aux. / control circuit connection | screw-type terminals |
| Conductor cross-section, solid | 2.5 ... 16 mm² |
| Conductor cross-section, solid or stranded | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Conductor cross-section, finely stranded w/ ferrule | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Mounting method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715 |
| Side-by-side mounting | Yes |
| Parameter | Value |
|---|---|
| Durability (operating cycles, typ.) | 10 000 000 |
| Durability with aux. switch block (cycles, typ.) | 10 000 000 |
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -55 ... +80 °C |
| Installation altitude, max. | 2 000 m |
| Parameter | Value |
|---|---|
| Width | 70 mm |
| Height | 140 mm |
| Depth | 195 mm |
| Parameter | Value |
|---|---|
| At AC | 10 ... 21 ms |
The 3RT2046-1AK64-3MA0: Its footprint is 195 mm deep, 70 mm wide, and 140 mm high, so it occupies one S3 slot on a DIN rail. Wire termination: main contacts accept solid 2.5–16 mm² or stranded 6–70 mm². Coil connections are screw-type terminals; auxiliary switch is included on the contactor. Switching rates: 850 cycles/hour in AC-3 motor duty, 900 1/h in AC-1 resistive, and 250 1/h in AC-4.
No, the 3RT2046 is an S3 frame contactor, while the 3RT2028-1BB40 is a different frame size. Panel wiring and mounting differ.
195 mm deep, 70 mm wide, 140 mm tall.
Solid conductors 2.5...16 mm² and stranded conductors 6...70 mm².
