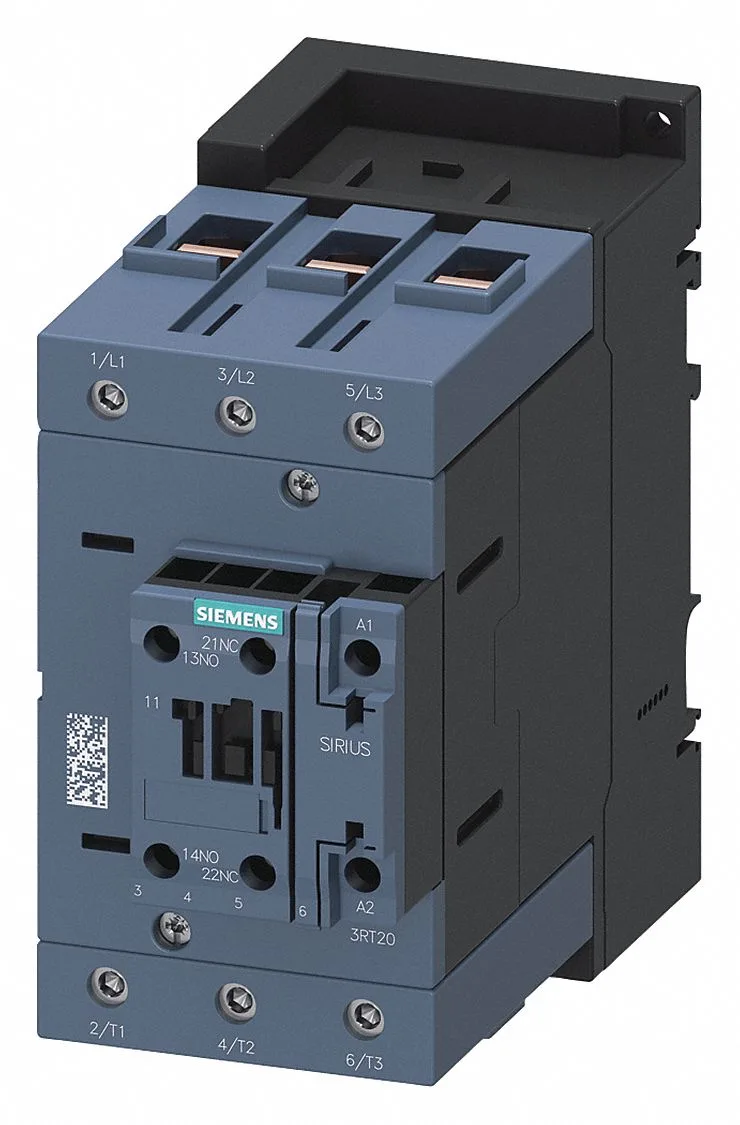

Siemens 3RT2046-1AM20 SIRIUS Power Contactor, S3, 850 ops/h

MPN3RT2046-1AM20

Active

Siemens SIRIUS 3RT2046-1AM20 power contactor, size S3, screw terminals, AC-3 max 850 switching cycles/h, 152 mm depth.

$719.31Ref. price · indicative, final on quote

Add to RFQ

Siemens 3RT2046-1AM20 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RT2046-1AM20 — Identification
Parameter	Value
Contactor frame size	S3

3RT2046-1AM20 — Ratings & Performance
Parameter	Value
Rated operational current, AC-12, max.	10 A
Rated operational current, AC-4 @ 400 V	80 A
Rated value @ 400 V	3 A
Rated value @ 500 V	2 A
Rated value @ 690 V	1 A
Rated value @ 230 V	20 hp
Rated value @ 24 V	10 A
Rated value @ 60 V	2 A
Rated value @ 110 V	1 A
Rated value @ 220 V	0.3 A

3RT2046-1AM20 — Control & Coil
Parameter	Value
Control supply voltage type	AC
Rated value @ 50 Hz	0.35
Rated value @ 50 Hz	208 V

3RT2046-1AM20 — Contacts & Poles
Parameter	Value
Main poles	3
Main NO contacts	3
Auxiliary contact reliability	1 faulty switching per 100 million (17 V, 1 mA)

3RT2046-1AM20 — Protection & Coordination
Parameter	Value
Short-circuit coordination type 1, fuse	gG: 250 A (690 V, 100 kA), aM: 160 A (690 V, 100 kA), BS88: 200 A (415 V, 80 kA)
Short-circuit coordination type 2, fuse	gG: 160 A (690 V, 100 kA), aM: 100 A (690 V, 100 kA), BS88: 125 A (415 V, 80 kA)
Aux. switch short-circuit protection, fuse	gG: 10 A (500 V, 1 kA)

3RT2046-1AM20 — Connection & Mounting
Parameter	Value
Main circuit connection	screw-type terminals
Aux. / control circuit connection	screw-type terminals
Conductor cross-section, solid	2.5 ... 16 mm²
Conductor cross-section, solid or stranded	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, finely stranded w/ ferrule	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting method	screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mounting	Yes

3RT2046-1AM20 — Durability
Parameter	Value
Durability (operating cycles, typ.)	10 000 000
Durability with aux. switch block (cycles, typ.)	10 000 000

3RT2046-1AM20 — Environmental
Parameter	Value
Operating temperature range	-25 ... +60 °C
Storage temperature range	-55 ... +80 °C
Installation altitude, max.	2 000 m

3RT2046-1AM20 — Mechanical
Parameter	Value
Width	70 mm
Height	140 mm
Depth	152 mm

3RT2046-1AM20 — Specifications
Parameter	Value
At AC	10 ... 21 ms

Product details

Its AC-3 duty rating permits up to 850 switching cycles per hour at full motor current — a figure that sets the cycle budget for starting and stopping induction motors under load. An auxiliary switch is built in, so feedback to the PLC or safety circuit is available without an external add-on block.

Solid conductors from 2.5 to 16 mm² and stranded conductors up to 70 mm² are accepted at the screw-type coil terminals. The unit occupies 70 mm width, 140 mm height, and 152 mm depth.
