It is rated for 9 A at 400 V in AC-3 duty, delivering 4 kW motor switching at that voltage. The coil picks up at 0.8 x rated voltage and drops out at 0.1 x rated, with operating times of 7 to 13 ms on DC and arcing times of 10 to 15 ms.
Mechanical and Mounting

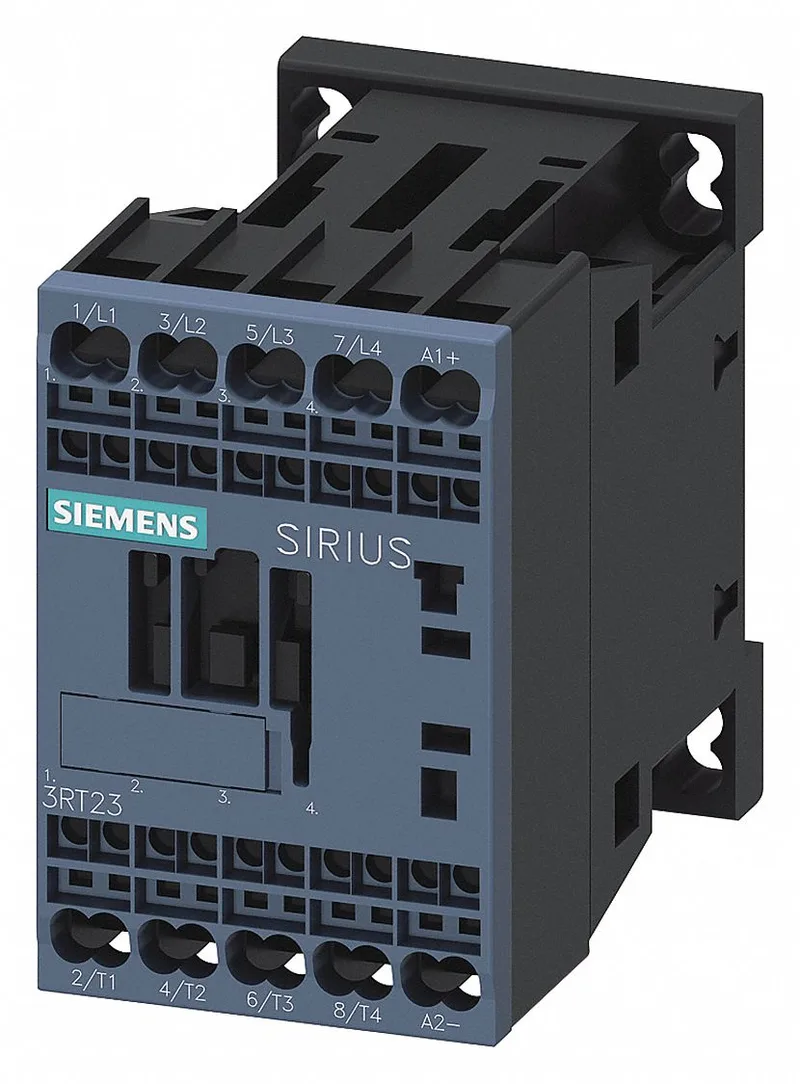

The contactor measures 45 mm wide, 70 mm high, and 73 mm deep.
Wiring and Connections
Main current circuit uses spring-loaded terminals. Solid wire accepts 2 x (0.5 to 2.5 mm²); stranded accepts 0.5 to 4 mm², or 2 x (0.5 to 4 mm²). The magnet coil connection is also spring-type. Up to two auxiliary contacts can be attached.
Electrical Ratings and Protection
Power loss at AC in hot operating state is 4.4 W. The contactor handles AC-3 and AC-4 loads equally at 4 kW at 400 V. For a direct comparison, the sibling 3RT2024-2BB40 is a size S0 contactor with a higher current rating — the 3RT2316-2BB40 is the correct choice when panel space and lower current (9 A) are the constraints.
