Siemens 3RT2317-1AF00 — Contactors

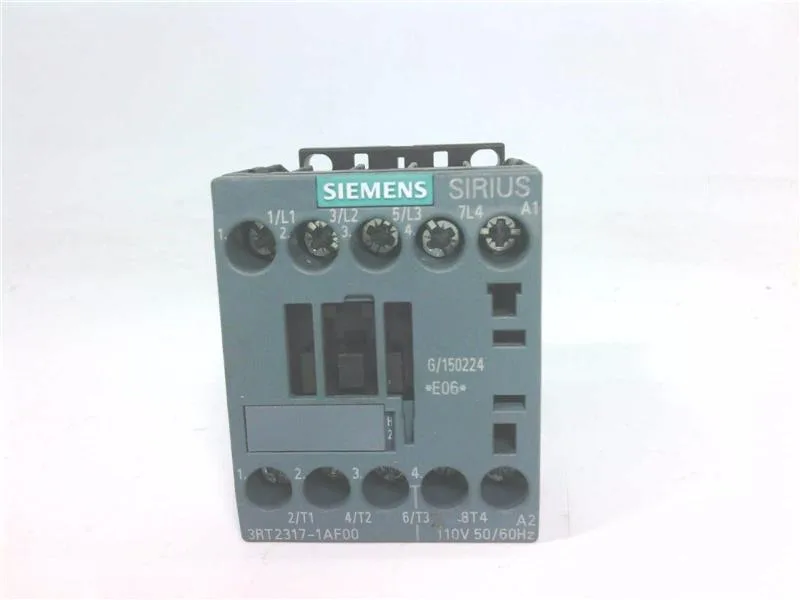

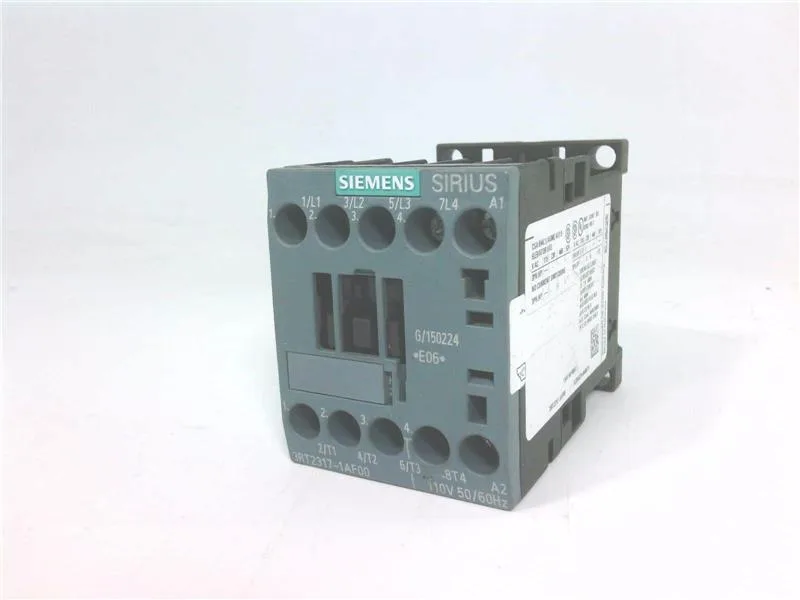

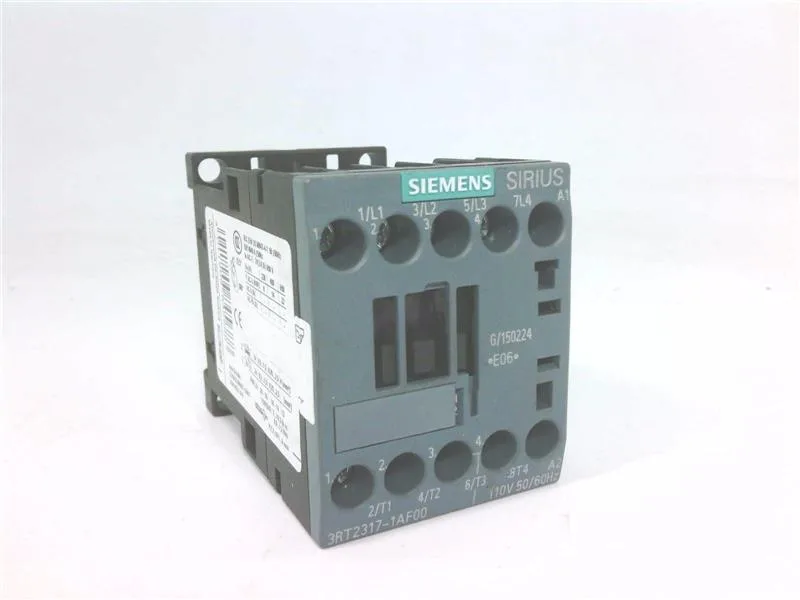

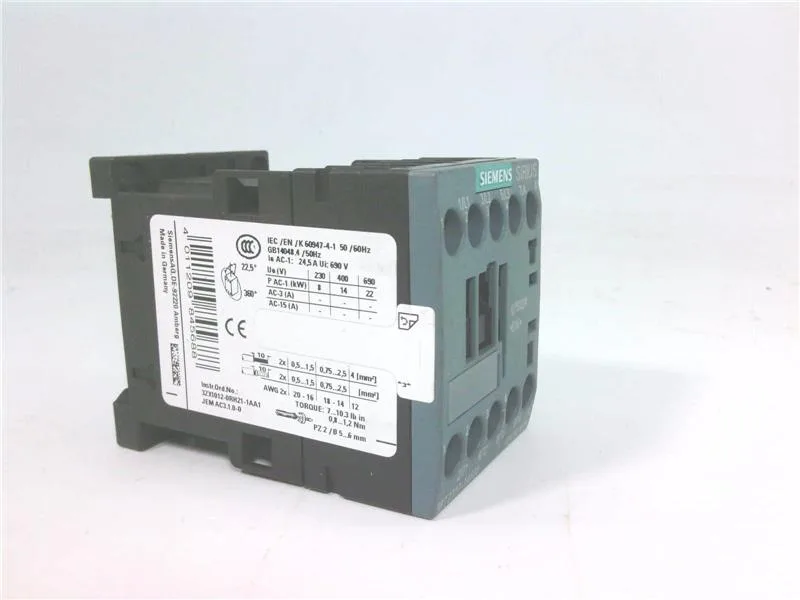

Siemens 3RT2317-1AF00 SIRIUS Contactor, 5.5 kW AC-3, 110 VAC

MPN3RT2317-1AF00
Active

Siemens SIRIUS contactor, size S00, 3RT2317-1AF00, 5.5 kW at 400 V AC-3, 110 VAC 50/60 Hz coil, screw terminals, 45 mm width.

$24.13Ref. price · indicative, final on quote
Siemens 3RT2317-1AF00 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RT2317-1AF00 — Identification
ParameterValue
Contactor frame sizeS00
3RT2317-1AF00 — Ratings & Performance
ParameterValue
Rated operational current, AC-4 @ 400 V4 kW
Rated value @ 400 V12 A
3RT2317-1AF00 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.25
Rated value @ 50 Hz110 V
3RT2317-1AF00 — Contacts & Poles
ParameterValue
Main poles4
Main NO contacts4
3RT2317-1AF00 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 35 A (690 V, 100 kA)
Short-circuit coordination type 2, fusegG: 20 A (690 V, 100 kA)
Aux. switch short-circuit protection, fusegG: 10 A (690 V, 1 kA)
3RT2317-1AF00 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mountingYes
3RT2317-1AF00 — Durability
ParameterValue
Durability (operating cycles, typ.)30 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2317-1AF00 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2317-1AF00 — Mechanical
ParameterValue
Width45 mm
Height58 mm
Depth73 mm
3RT2317-1AF00 — Specifications
ParameterValue
At AC7 ... 13 ms

Product details

SIRIUS Size S00 Contactor for Motor Switching

The Siemens 3RT2317-1AF00 is a SIRIUS-brand contactor in size S00, rated for 5.5 kW motor switching at 400 V in AC-3 duty. The coil pulls 110 VAC at both 50 and 60 Hz, so it works on either mains frequency without a coil change. Rated operational current at 400 V is 12 A.

Width is 45 mm, depth 73 mm, height 58 mm — that's a compact footprint for a 5.5 kW contactor, leaving room on the rail for an overload relay and a terminal block. Main and auxiliary contacts use screw-type terminals. Solid or stranded wire: 2x (0.5…1.5 mm²), 2x (0.75…2.5 mm²), and up to 2x 4 mm² for the main circuit. That covers standard motor and control wiring sizes.

Frequently asked questions

How do I get current pricing and availability for 3RT2317-1AF00?

Submit an RFQ through this listing. Pricing and stock are confirmed at quote time through independent distribution channels.

What is 3RT2317-1AF00's motor power rating?

Rated 5.5 kW at 400 V in AC-3 duty. That is the motor-switching rating for induction motors.

What compliance documentation does this brand provide for 3RT2317-1AF00?

The product carries a RoHS substance prohibition date of 10/01/2009, indicating RoHS compliance. Standard Siemens SIRIUS documentation includes the declaration of conformity and CE marking.
