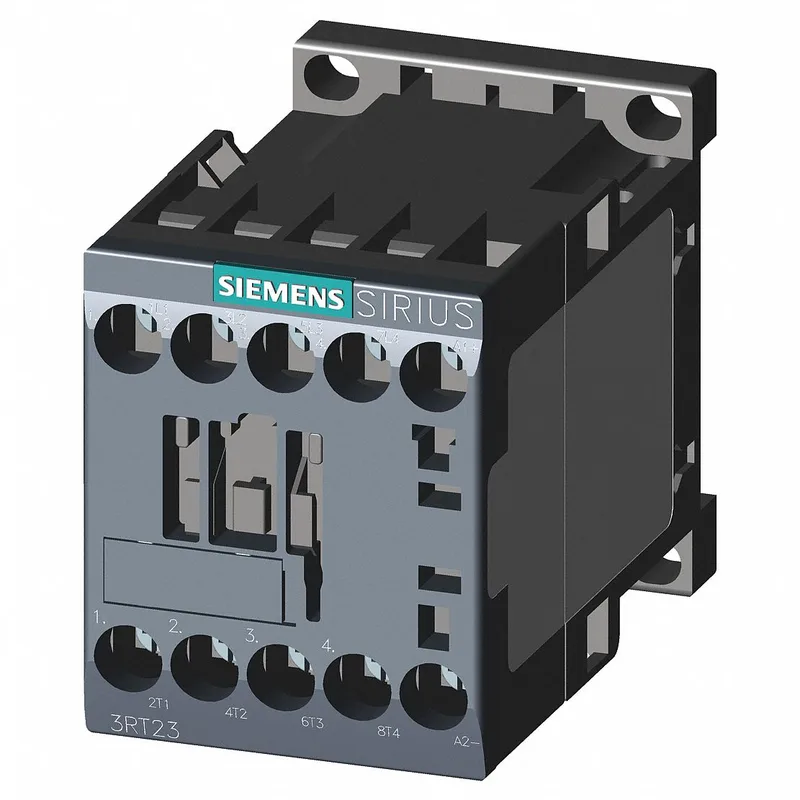

Siemens SIRIUS, contactor, size S00, 3RT2317-1BB40, 24 V DC coil, 5.5 kW at 400 V AC-3, 12 A rated current, screw-type terminals, 45 mm width.
| Parameter | Value |
|---|---|
| Contactor frame size | S00 |
| Parameter | Value |
|---|---|
| Rated operational current, AC-4 @ 400 V | 4 kW |
| Rated value @ 400 V | 12 A |
| Parameter | Value |
|---|---|
| Control supply voltage type | DC |
| Parameter | Value |
|---|---|
| Main poles | 4 |
| Main NO contacts | 4 |
| Parameter | Value |
|---|---|
| Short-circuit coordination type 1, fuse | gG: 35 A (690 V, 100 kA) |
| Short-circuit coordination type 2, fuse | gG: 20 A (690 V, 100 kA) |
| Aux. switch short-circuit protection, fuse | gG: 10 A (690 V, 1 kA) |
| Parameter | Value |
|---|---|
| Main circuit connection | screw-type terminals |
| Aux. / control circuit connection | screw-type terminals |
| Conductor cross-section, solid | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Conductor cross-section, solid or stranded | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm² |
| Conductor cross-section, finely stranded w/ ferrule | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Mounting method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715 |
| Side-by-side mounting | Yes |
| Parameter | Value |
|---|---|
| Durability (operating cycles, typ.) | 30 000 000 |
| Durability with aux. switch block (cycles, typ.) | 10 000 000 |
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -55 ... +80 °C |
| Installation altitude, max. | 2 000 m |
| Parameter | Value |
|---|---|
| Width | 45 mm |
| Height | 58 mm |
| Depth | 73 mm |
The 45 mm width leaves room for adjacent devices on the rail.
AC-4 rating of 4 kW at 400 V covers inching and plugging duty. The main contact arcing time is 10 to 15 ms; the DC coil operates at 24 V with a pick-up dropout ratio of 0.8 to 1.1 of rated value.
This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
AC-3 motor power is 5.5 kW at 400 V, rated current is 12 A at 400 V, coil is 24 V DC, and the contactor is size S00 with screw-type terminals.
Width is 45 mm, height 58 mm, depth 73 mm. It snaps onto 35 mm DIN rail with 10 mm clearance upward, downward, and forward, and 6 mm at the sides.
