Siemens SIRIUS 3RT2325-1AB00 contactor, size S0, 24 VAC 50 Hz coil, screw-type terminals, 10 A rated operational current at 24 V, screw and snap-on mounting onto 35 mm DIN rail.
| Parameter | Value |
|---|---|
| Contactor frame size | S0 |
| Parameter | Value |
|---|---|
| Rated operational current, AC-12, max. | 10 A |
| Rated operational current, AC-4 @ 400 V | 7.5 kW |
| Rated value @ 400 V | 3 A |
| Rated value @ 500 V | 2 A |
| Rated value @ 690 V | 1 A |
| Rated value @ 230 V | 10 A |
| Rated value @ 24 V | 10 A |
| Rated value @ 60 V | 6 A |
| Rated value @ 110 V | 1 A |
| Rated value @ 220 V | 0.3 A |
| Parameter | Value |
|---|---|
| Control supply voltage type | AC |
| Rated value @ 50 Hz | 0.25 |
| Rated value @ 50 Hz | 24 V |
| Parameter | Value |
|---|---|
| Main poles | 4 |
| Main NO contacts | 4 |
| Auxiliary contact reliability | 1 faulty switching per 100 million (17 V, 1 mA) |
| Parameter | Value |
|---|---|
| Short-circuit coordination type 1, fuse | gG: 63 A (690 V, 100 kA) |
| Short-circuit coordination type 2, fuse | gG: 20 A (690 V, 100 kA) |
| Aux. switch short-circuit protection, fuse | gG: 10 A (690 V, 1 kA) |
| Parameter | Value |
|---|---|
| Main circuit connection | screw-type terminals |
| Aux. / control circuit connection | screw-type terminals |
| Conductor cross-section, solid | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Conductor cross-section, solid or stranded | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Conductor cross-section, finely stranded w/ ferrule | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Mounting method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715 |
| Side-by-side mounting | Yes |
| Parameter | Value |
|---|---|
| Durability (operating cycles, typ.) | 10 000 000 |
| Durability with aux. switch block (cycles, typ.) | 10 000 000 |
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -55 ... +80 °C |
| Installation altitude, max. | 2 000 m |
| Parameter | Value |
|---|---|
| Width | 60 mm |
| Height | 85 mm |
| Depth | 97 mm |
| Parameter | Value |
|---|---|
| At AC | 4 ... 16 ms |

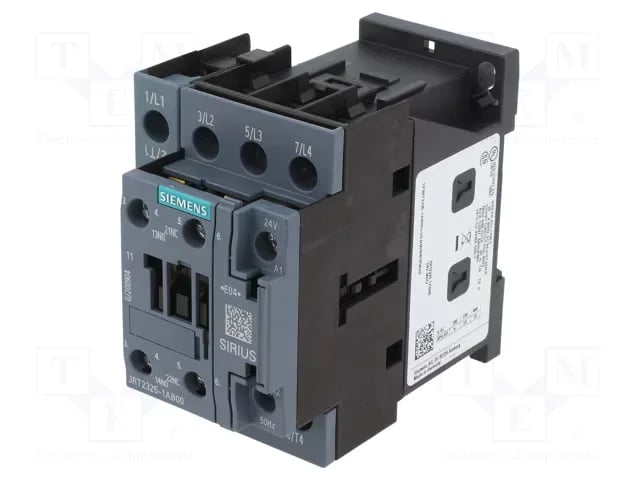

The 3RT2325-1AB00: The magnet coil is rated 24 V at 50 Hz (AC) with screw-type terminals, drawing 0.25 A at 50 Hz.
The contactor footprint is 60 mm wide, 85 mm high, and 97 mm deep.
The contactor includes an auxiliary switch (1 instantaneous contact) and supports up to 2 attachable auxiliary switch blocks.
As a Siemens SIRIUS component, the 3RT2325-1AB00 is manufactured under IEC/EN standards for contactors. Specific declarations of conformity (CE, UKCA, EAC) and material compliance (RoHS, REACH) are available from Siemens upon request. The product carries no UL/CSA listing in the on-record data.
