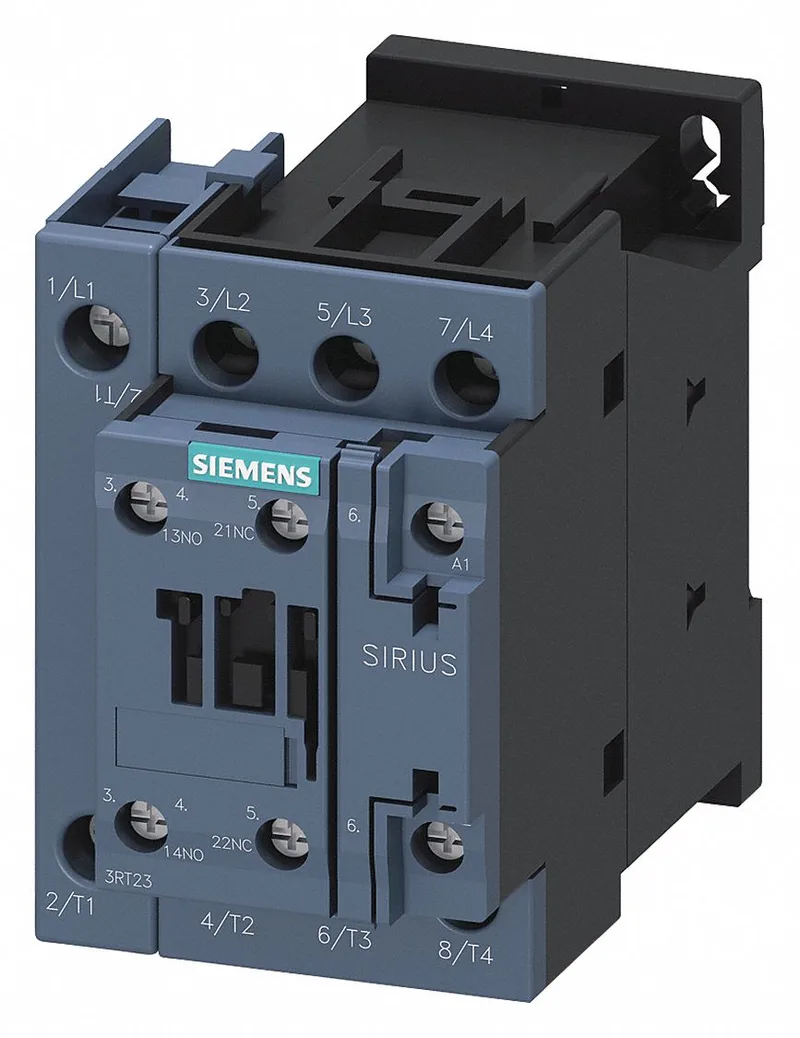

Siemens 3RT2325-1AM20 SIRIUS Contactor, S0, 10A at 230V AC

MPN3RT2325-1AM20

Active

Siemens SIRIUS contactor, order code 3RT2325-1AM20, size S0, 10 A at 230 V AC, screw-type terminals.

$215.96Ref. price · indicative, final on quote

Add to RFQ

Siemens 3RT2325-1AM20 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RT2325-1AM20 — Identification
Parameter	Value
Contactor frame size	S0

3RT2325-1AM20 — Ratings & Performance
Parameter	Value
Rated operational current, AC-12, max.	10 A
Rated operational current, AC-4 @ 400 V	7.5 kW
Rated value @ 400 V	3 A
Rated value @ 500 V	2 A
Rated value @ 690 V	1 A
Rated value @ 230 V	10 A
Rated value @ 24 V	10 A
Rated value @ 60 V	6 A
Rated value @ 110 V	1 A
Rated value @ 220 V	0.3 A

3RT2325-1AM20 — Control & Coil
Parameter	Value
Control supply voltage type	AC
Rated value @ 50 Hz	0.25
Rated value @ 50 Hz	208 V

3RT2325-1AM20 — Contacts & Poles
Parameter	Value
Main poles	4
Main NO contacts	4
Auxiliary contact reliability	1 faulty switching per 100 million (17 V, 1 mA)

3RT2325-1AM20 — Protection & Coordination
Parameter	Value
Short-circuit coordination type 1, fuse	gG: 63 A (690 V, 100 kA)
Short-circuit coordination type 2, fuse	gG: 20 A (690 V, 100 kA)
Aux. switch short-circuit protection, fuse	gG: 10 A (690 V, 1 kA)

3RT2325-1AM20 — Connection & Mounting
Parameter	Value
Main circuit connection	screw-type terminals
Aux. / control circuit connection	screw-type terminals
Conductor cross-section, solid	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, solid or stranded	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, finely stranded w/ ferrule	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting method	screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mounting	Yes

3RT2325-1AM20 — Durability
Parameter	Value
Durability (operating cycles, typ.)	10 000 000
Durability with aux. switch block (cycles, typ.)	10 000 000

3RT2325-1AM20 — Environmental
Parameter	Value
Operating temperature range	-25 ... +60 °C
Storage temperature range	-55 ... +80 °C
Installation altitude, max.	2 000 m

3RT2325-1AM20 — Mechanical
Parameter	Value
Width	60 mm
Height	85 mm
Depth	97 mm

3RT2325-1AM20 — Specifications
Parameter	Value
At AC	4 ... 16 ms

Product details

The 3RT2325-1AM20: Fastens via screw and snap-on onto 35 mm DIN rail per DIN EN 60715. Mounting position is flexible: ±180° rotation on a vertical surface, plus ±22.5° tilt forward/backward. Ambient operating range is -25 to +60 °C; storage range -55 to +80 °C. Clearance to adjacent devices: 10 mm upward, downward, and forward; 6 mm to the side.

Auxiliary circuits use two pairs of screw terminals: 2x (0.5 to 1.5 mm²) and 2x (0.75 to 2.5 mm²). Coil connection is screw-type as well.
