Siemens 3RT2325-2CK60 — Contactors

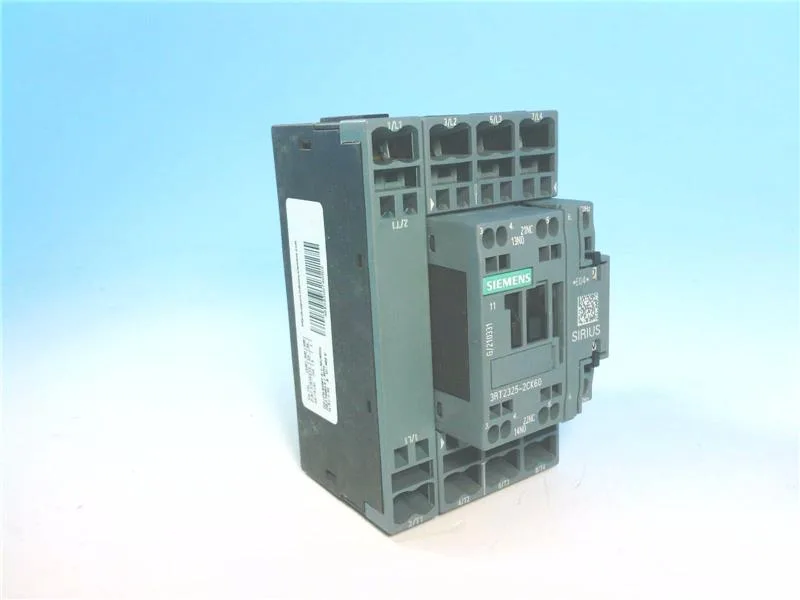

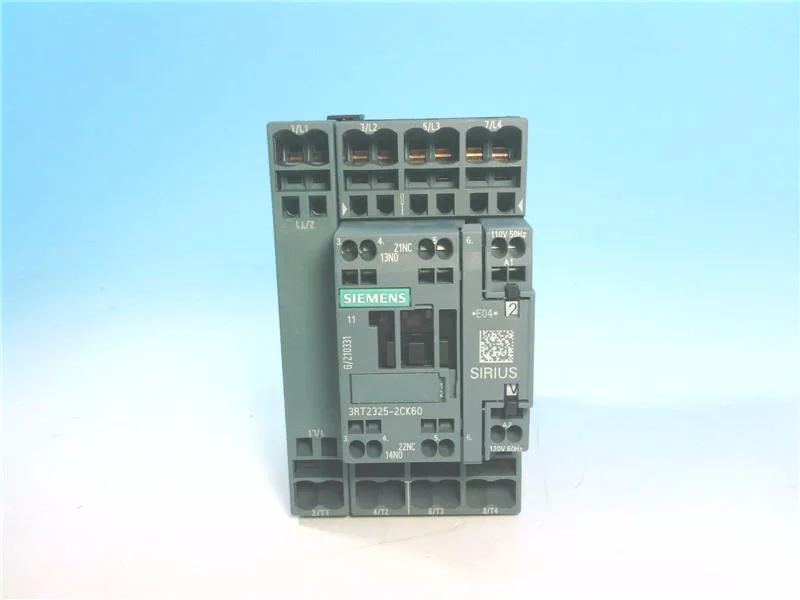

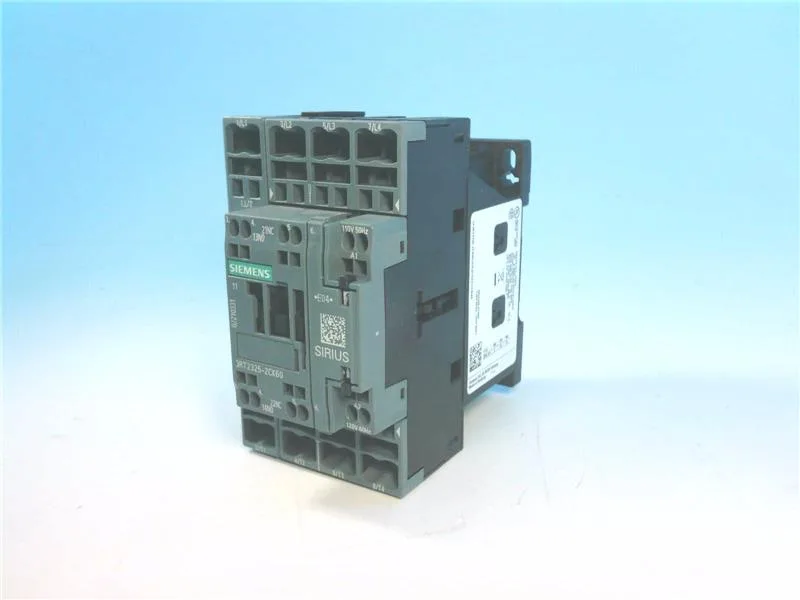

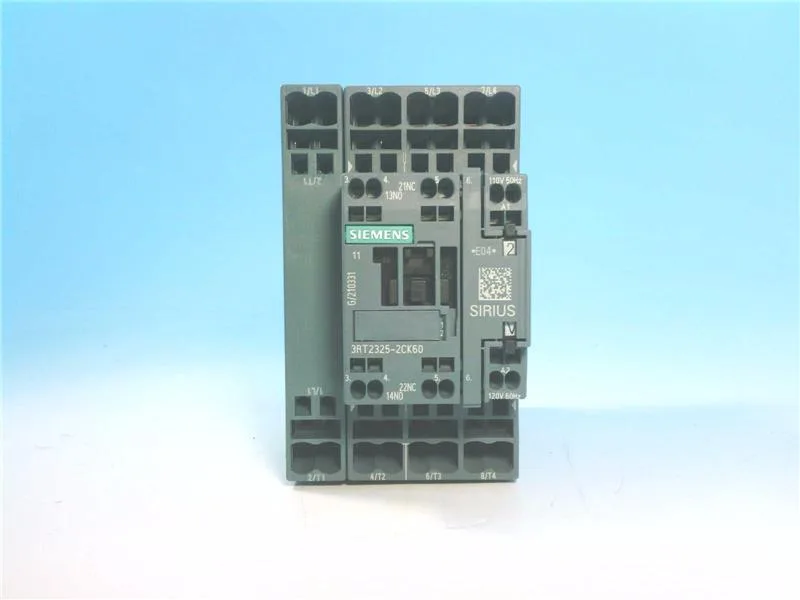

Siemens 3RT2325-2CK60 SIRIUS Contactor, S0 Frame, AC Coil

MPN3RT2325-2CK60
Active

Siemens SIRIUS 3RT2325-2CK60 contactor, size S0, AC coil voltage, screw and snap-on 35mm DIN rail mounting, spring-type coil terminals.

$38.10Ref. price · indicative, final on quote
Siemens 3RT2325-2CK60 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT2325-2CK60 — Identification
ParameterValue
Contactor frame sizeS0
3RT2325-2CK60 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V7.5 kW
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V10 A
Rated value @ 24 V10 A
Rated value @ 60 V6 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2325-2CK60 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.25
Rated value @ 50 Hz110 V
3RT2325-2CK60 — Contacts & Poles
ParameterValue
Main poles4
Main NO contacts4
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2325-2CK60 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 63 A (690 V, 100 kA)
Short-circuit coordination type 2, fusegG: 20 A (690 V, 100 kA)
Aux. switch short-circuit protection, fusegG: 10 A (690 V, 1 kA)
3RT2325-2CK60 — Connection & Mounting
ParameterValue
Main circuit connectionspring-loaded terminals
Aux. / control circuit connectionspring-loaded terminals
Conductor cross-section, solid2x (0.5 ... 2.5 mm²)
Conductor cross-section, solid or stranded2x (0.5 ... 2.5 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mountingYes
3RT2325-2CK60 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2325-2CK60 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2325-2CK60 — Mechanical
ParameterValue
Width60 mm
Height102 mm
Depth97 mm
3RT2325-2CK60 — Specifications
ParameterValue
At AC4 ... 16 ms

Product details

AC coil voltage means it pulls in from an AC control supply — no DC rectifier needed on the coil side. The coil terminals are spring-type, so you're not hunting for a screwdriver on a tight panel layout.

At 230 V AC it's still good for 10 A, so it handles pilot duty loads like indicator lights and small solenoid valves without derating.

Mounting and Wiring Notes

That helps when you're cramming it into a panel with an existing wireway layout. Main circuit terminals accept solid wire from 2x 0.5 mm² up to 2.5 mm², or stranded from 1 mm² up to 10 mm².

Frequently asked questions

What are the key mounting dimensions for panel planning?

The contactor is 102 mm high, 60 mm wide, and 97 mm deep. It mounts on 35 mm DIN rail. Clearance requirements are 10 mm upward, 10 mm forward, 10 mm downward, and 6 mm at the side.

What wire sizes does the main circuit accept?

Solid wire: 2x (0.5 to 2.5 mm²). Stranded wire: 1 to 10 mm². The coil terminals are spring-type, accepting solid 2x (0.5 to 2.5 mm²).

What is the auxiliary contact rating at common control voltages?

The auxiliary switch is rated 10 A at 24 V AC and 10 A at 230 V AC. It also carries 3 A at 400 V AC and 2 A at 500 V AC.
