Siemens 3RT2516-1AB00 — Contactors

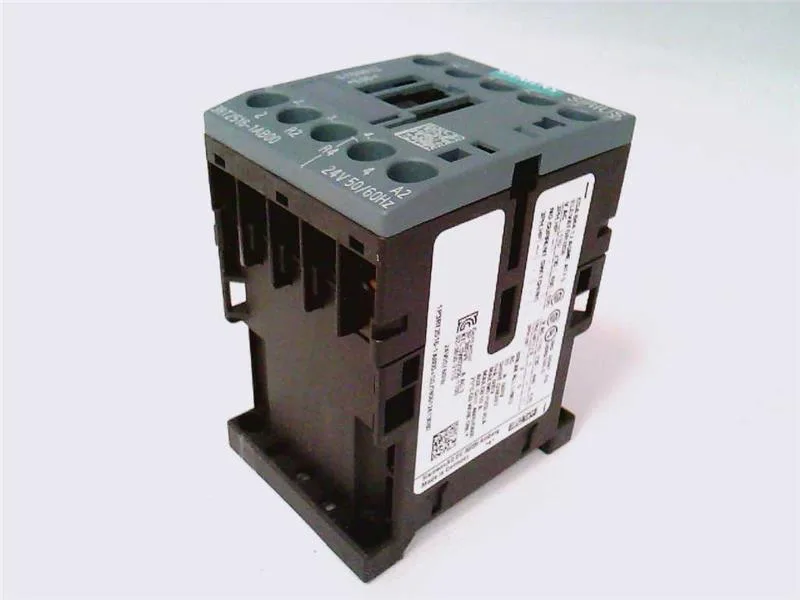

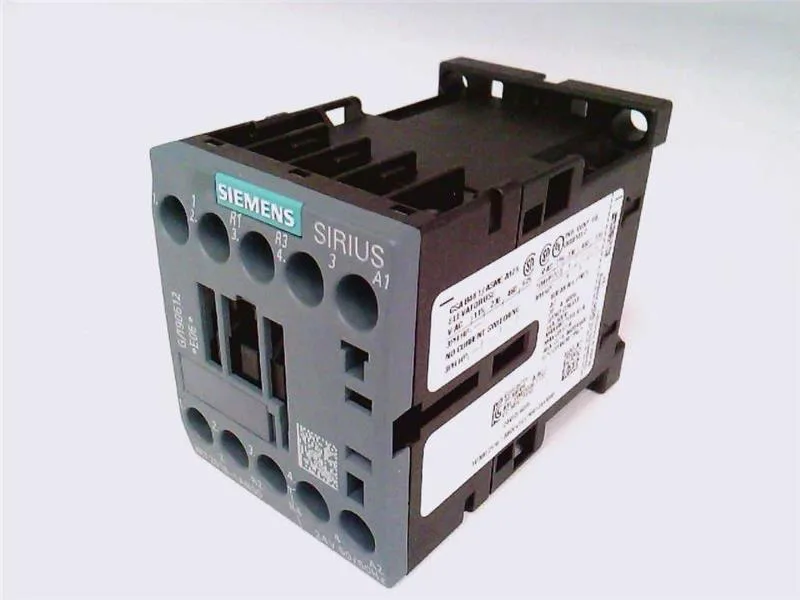

Siemens SIRIUS 3RT2516-1AB00 Contactor, 24 V 50/60 Hz, 10 A

MPN3RT2516-1AB00
Active

Siemens SIRIUS 3RT2516-1AB00 contactor, size S00, 24 V 50/60 Hz coil, screw-type terminals, 45 mm wide, 10 A at 230 V.

$19.05Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT2516-1AB00 — Identification
ParameterValue
Contactor frame sizeS00
3RT2516-1AB00 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated value @ 400 V3 A
Rated value @ 230 V10 A
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2516-1AB00 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.25
Rated value @ 50 Hz24 V
3RT2516-1AB00 — Contacts & Poles
ParameterValue
Main poles4
Main NO contacts2
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2516-1AB00 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 35 A (690 V, 100 kA)
Short-circuit coordination type 2, fusegG: 20A (690V, 100kA)
Aux. switch short-circuit protection, fusefuse gG: 10 A
3RT2516-1AB00 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
Conductor cross-section, solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022
Side-by-side mountingYes
3RT2516-1AB00 — Durability
ParameterValue
Durability (operating cycles, typ.)30 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2516-1AB00 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2516-1AB00 — Mechanical
ParameterValue
Width45 mm
Height57.5 mm
Depth73 mm
3RT2516-1AB00 — Specifications
ParameterValue
At AC4 ... 15 ms

Product details

The Siemens SIRIUS 3RT2516-1AB00 is a size S00 contactor with a 24 V 50/60 Hz coil and screw-type terminals. It switches resistive loads up to 10 A at 230 V AC-1, and motor loads up to 10 A at 24 V DC. The 45 mm wide body snaps onto a 35 mm DIN rail per EN 50022, and the mounting position allows ±180° rotation on a vertical surface plus ±22.5° tilt forward and backward — useful when routing cables in a tight gland plate.

Screw-type terminals accept 2x (0.5…1.5 mm²), 2x (0.75…2.5 mm²), or 2x 4 mm² solid or stranded conductors.

Frequently asked questions

What are the key ratings of this contactor?

Coil voltage is 24 V at 50/60 Hz. Rated switching current is 10 A at 24 V DC and 10 A at 230 V AC. The contactor is size S00 with screw-type terminals.

What clearance is needed around the contactor?

Zero clearance above, below, forward, and backward; 6 mm clearance required at the side. This allows dense packing on the DIN rail.
