Siemens 3RT2517-1AB00 SIRIUS Contactor, Size S00

MPN3RT2517-1AB00

Active

Siemens SIRIUS contactor, size S00, 3RT2517-1AB00, 24 VAC 50/60 Hz coil, screw-type terminals, auxiliary switch, 45 mm wide.

$22.86Ref. price · indicative, final on quote

Add to RFQ

Siemens 3RT2517-1AB00 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RT2517-1AB00 — Identification
Parameter	Value
Contactor frame size	S00

3RT2517-1AB00 — Ratings & Performance
Parameter	Value
Rated operational current, AC-12, max.	10 A
Rated value @ 400 V	3 A
Rated value @ 230 V	10 A
Rated value @ 24 V	10 A
Rated value @ 60 V	2 A
Rated value @ 110 V	1 A
Rated value @ 220 V	0.3 A

3RT2517-1AB00 — Control & Coil
Parameter	Value
Control supply voltage type	AC
Rated value @ 50 Hz	0.25
Rated value @ 50 Hz	24 V

3RT2517-1AB00 — Contacts & Poles
Parameter	Value
Main poles	4
Main NO contacts	2
Auxiliary contact reliability	1 faulty switching per 100 million (17 V, 1 mA)

3RT2517-1AB00 — Protection & Coordination
Parameter	Value
Short-circuit coordination type 1, fuse	gG: 35 A (690 V, 100 kA)
Short-circuit coordination type 2, fuse	gG: 20A (690V, 100kA)
Aux. switch short-circuit protection, fuse	fuse gG: 10 A

3RT2517-1AB00 — Connection & Mounting
Parameter	Value
Main circuit connection	screw-type terminals
Aux. / control circuit connection	screw-type terminals
Conductor cross-section, solid	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
Conductor cross-section, solid or stranded	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
Conductor cross-section, finely stranded w/ ferrule	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting method	screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022
Side-by-side mounting	Yes

3RT2517-1AB00 — Durability
Parameter	Value
Durability (operating cycles, typ.)	30 000 000
Durability with aux. switch block (cycles, typ.)	10 000 000

3RT2517-1AB00 — Environmental
Parameter	Value
Operating temperature range	-25 ... +60 °C
Storage temperature range	-55 ... +80 °C
Installation altitude, max.	2 000 m

3RT2517-1AB00 — Mechanical
Parameter	Value
Width	45 mm
Height	57.5 mm
Depth	73 mm

3RT2517-1AB00 — Specifications
Parameter	Value
At AC	4 ... 15 ms

Product details

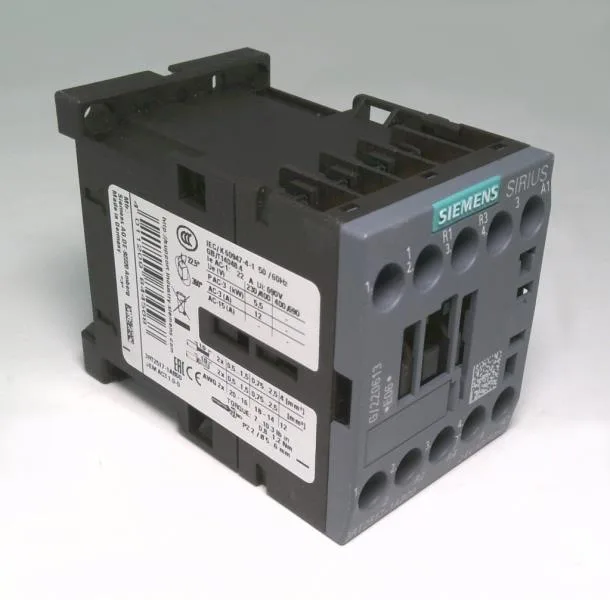

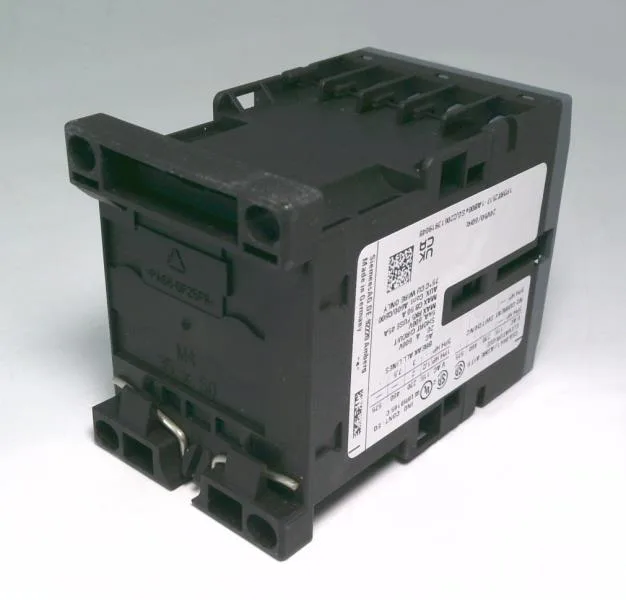

Contactor – SIRIUS 3RT2517-1AB00

It carries a 24 VAC 50/60 Hz coil and includes an integrated auxiliary switch, so it handles both main power and signal feedback from a single device. Rated operational current on the auxiliary contacts reaches 10 A at 24 V or 230 V (AC), and 2 A at 48 V or 125 V — covering common control-circuit voltages for PLC outputs and relay logic.

Width is 45 mm, height 57.5 mm, depth 73 mm — the S00 footprint fits tightly on a 35 mm DIN rail per DIN EN 50022, with screw and snap-on fastening. Side-by-side mounting is permitted, but maintain 6 mm clearance to the side for arc dissipation.
