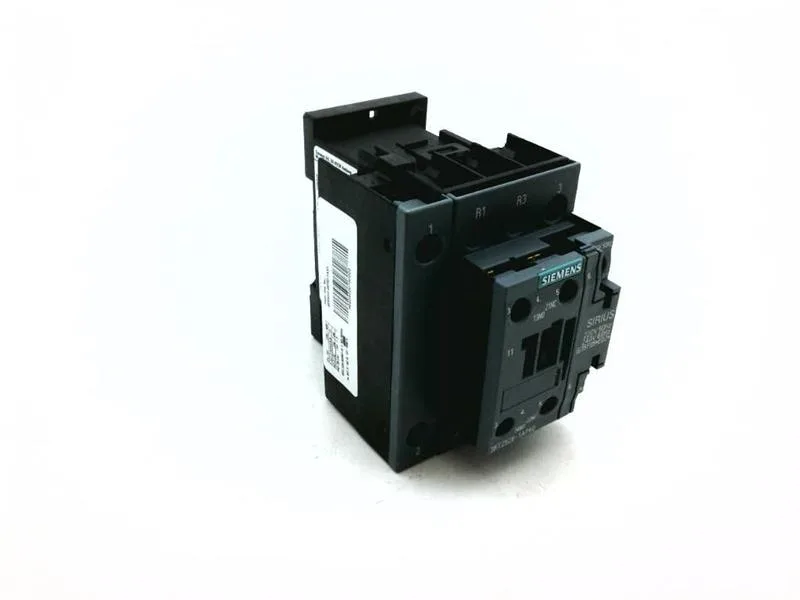

Siemens SIRIUS contactor 3RT2526-1AP60, Size S0, screw-type terminals, integrated auxiliary switch, rated 10 A at 24 V DC, operating range -25 to +60 °C.
| Parameter | Value |
|---|---|
| Contactor frame size | S0 |
| Parameter | Value |
|---|---|
| Rated operational current, AC-12, max. | 10 A |
| Rated value @ 400 V | 3 A |
| Rated value @ 500 V | 2 A |
| Rated value @ 690 V | 1 A |
| Rated value @ 230 V | 10 A |
| Rated value @ 24 V | 10 A |
| Rated value @ 60 V | 2 A |
| Rated value @ 110 V | 1 A |
| Rated value @ 220 V | 0.3 A |
| Parameter | Value |
|---|---|
| Control supply voltage type | AC |
| Rated value @ 50 Hz | 0.28 |
| Rated value @ 50 Hz | 220 V |
| Parameter | Value |
|---|---|
| Main poles | 4 |
| Main NO contacts | 2 |
| Auxiliary contact reliability | 1 faulty switching per 100 million (17 V, 1 mA) |
| Parameter | Value |
|---|---|
| Short-circuit coordination type 1, fuse | gG: 63 A (690 V, 100 kA) |
| Short-circuit coordination type 2, fuse | gG: 35 A (690 V, 50 kA) |
| Aux. switch short-circuit protection, fuse | fuse gG: 10 A |
| Parameter | Value |
|---|---|
| Main circuit connection | screw-type terminals |
| Aux. / control circuit connection | screw-type terminals |
| Conductor cross-section, solid | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Conductor cross-section, solid or stranded | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Conductor cross-section, finely stranded w/ ferrule | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Mounting method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022 |
| Side-by-side mounting | Yes |
| Parameter | Value |
|---|---|
| Durability (operating cycles, typ.) | 10 000 000 |
| Durability with aux. switch block (cycles, typ.) | 10 000 000 |
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -55 ... +80 °C |
| Installation altitude, max. | 2 000 m |
| Parameter | Value |
|---|---|
| Width | 61 mm |
| Height | 85 mm |
| Depth | 97 mm |
| Parameter | Value |
|---|---|
| At AC | 4 ... 16 ms |
Dimensions are 85 mm high, 61 mm wide, 97 mm deep — standard S0 footprint. Clearances: 6 mm to the side, zero clearances top, bottom, front, and back — tight panel spacing works.
Terminals accept 2x solid or stranded wires: 2x (0.5 … 1.5 mm²) and 2x (0.75 … 2.5 mm²) per the screw clamp. Sturdy for common panel wire sizes.
97 mm.
It accepts 2x (0.5 … 1.5 mm²) and 2x (0.75 … 2.5 mm²) solid or stranded wire per terminal.
