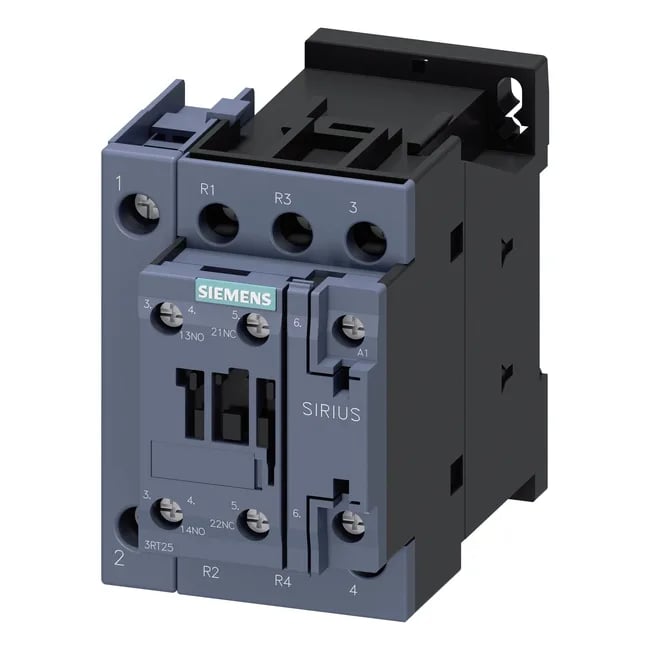

Siemens 3RT2526-2AF00 — Contactors

Siemens 3RT2526-2AF00 SIRIUS Contactor, S0, 110V 50Hz Coil

MPN3RT2526-2AF00
Active

Siemens SIRIUS contactor, size S0, 3RT2526-2AF00, 110 V 50 Hz coil, spring-type terminals, 1 NO + 1 NC auxiliary switch, screw and snap-on DIN rail mounting.

Siemens 3RT2526-2AF00 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT2526-2AF00 — Identification
ParameterValue
Contactor frame sizeS0
3RT2526-2AF00 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V10 A
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2526-2AF00 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.25
Rated value @ 50 Hz110 V
3RT2526-2AF00 — Contacts & Poles
ParameterValue
Main poles4
Main NO contacts2
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2526-2AF00 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 63 A (690 V, 100 kA)
Short-circuit coordination type 2, fusegG: 35 A (690 V, 50 kA)
Aux. switch short-circuit protection, fusefuse gG: 10 A
3RT2526-2AF00 — Connection & Mounting
ParameterValue
Main circuit connectionspring-loaded terminals
Aux. / control circuit connectionspring-loaded terminals
Conductor cross-section, solid2x (0.5 ... 2.5 mm²)
Conductor cross-section, solid or stranded2x (0.5 ... 2.5 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
Side-by-side mountingYes
3RT2526-2AF00 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2526-2AF00 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2526-2AF00 — Mechanical
ParameterValue
Width61 mm
Height102 mm
Depth97 mm
3RT2526-2AF00 — Specifications
ParameterValue
At AC4 ... 16 ms

Product details

What is the 3RT2526-2AF00?

It carries a 110 V 50 Hz coil with spring-type terminals on the coil side, and includes a built-in auxiliary switch block (1 NO + 1 NC).

Coil voltage and frequency — what the 110 V 50 Hz rating means

The coil is rated for 110 V at 50 Hz, drawing 10 A at the rated value. At 60 Hz the coil impedance shifts, so this variant is specified for 50 Hz networks only — if your line runs 60 Hz, the 3RT2526-2AF00 is not the correct coil tap. The spring-type coil terminals accept 2x (0.5... 2.5 mm²) solid or stranded wire, which simplifies wiring in panels where screw terminals are being phased out for vibration-resistant connections.

The 3RT2526-2AF00 is at a current-production lifecycle stage, meaning it remains in active manufacture and supply. No official successor has been issued, and the part is still the standard offering for this coil voltage and frame size.

Frequently asked questions

Where can I buy 3RT2526-2AF00 and what is the price?

The 3RT2526-2AF00 is available to order against an RFQ through independent distribution channels.
