Siemens 3RT2536-1AK60 — Contactors

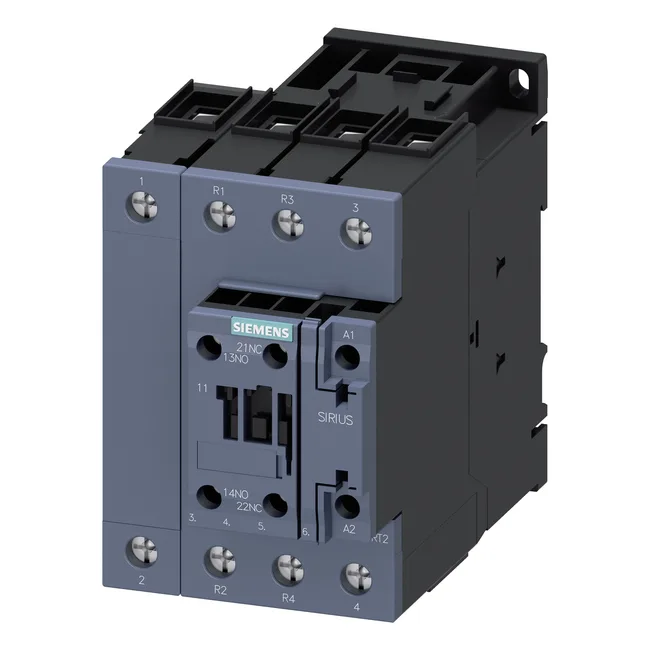

Siemens 3RT2536-1AK60 SIRIUS Contactor, S2, 24V DC Coil, 10A

MPN3RT2536-1AK60
Active

Siemens SIRIUS contactor, size S2, 24 V DC coil, screw terminals, 10 A rated at 24 V, 3 A at 400 V AC, auxiliary switch included, 3RT2536-1AK60.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT2536-1AK60 — Identification
ParameterValue
Contactor frame sizeS2
3RT2536-1AK60 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V6 A
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2536-1AK60 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.36
Rated value @ 50 Hz110 V
3RT2536-1AK60 — Contacts & Poles
ParameterValue
Main poles4
Main NO contacts2
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2536-1AK60 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 160 A (690 V, 100 kA)
Short-circuit coordination type 2, fusegG: 80 A (690 V, 100 kA)
Aux. switch short-circuit protection, fusefuse gG: 10 A
3RT2536-1AK60 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022
Side-by-side mountingYes
3RT2536-1AK60 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2536-1AK60 — Environmental
ParameterValue
Operating temperature range-40 ... +70 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2536-1AK60 — Mechanical
ParameterValue
Width75 mm
Height114 mm
Depth130 mm
3RT2536-1AK60 — Specifications
ParameterValue
At AC10 ... 18 ms

Product details

The coil pulls 24 V DC nominal; at that voltage the main contacts are rated 10 A, and at 400 V AC they handle 3 A.

The 10 A rating at 24 V DC covers the kind of DC loads you see in battery-backed or low-voltage control circuits — solenoid valves, small DC motors, signal lamps. Storage range goes -55 to +80 °C, which is what matters when the spare sits on a shelf in a warehouse that freezes in winter.

The contactor accepts solid or stranded wire: 2x (0.5 to 1.5 mm²) or 2x (0.75 to 2.5 mm²) per terminal. Coil connections are screw-type terminals, same as the main and auxiliary contacts — one screwdriver size for the whole job. Clearance around the unit: 50 mm above and below, 10 mm to the sides, 0 mm front and back.

Frequently asked questions

Where can I buy the 3RT2536-1AK60?

This part is sourced to order through independent distribution. Submit an RFQ; availability and current pricing are confirmed at quote time.

What is the depth of the 3RT2536-1AK60?

The depth is 130 mm.

What wire sizes does the 3RT2536-1AK60 accept?

It accepts solid or stranded wire: 2x (0.5 to 1.5 mm²) or 2x (0.75 to 2.5 mm²) per terminal.

Will the 3RT2536-1AK60 drop into a panel specified for the 3RT2536-1AF00 without rewiring?

Both are S2 frame contactors with the same mounting footprint on 35 mm DIN rail, so mechanical fit is identical. The difference is the coil voltage — 1AK60 is 24 V DC, 1AF00 is a different coil. Verify coil supply before swapping.

What compliance documentation does Siemens provide for the 3RT2536-1AK60?

As a current-production SIRIUS component, it carries CE marking and is designed to meet relevant IEC/EN standards. Specific RoHS, REACH, and UL documentation is available on request with the RFQ.
