Siemens 3RT2536-1NB30 — Contactors

Siemens 3RT2536-1NB30 SIRIUS S2 Contactor, 24 VDC Coil, 3-Po

MPN3RT2536-1NB30
Active

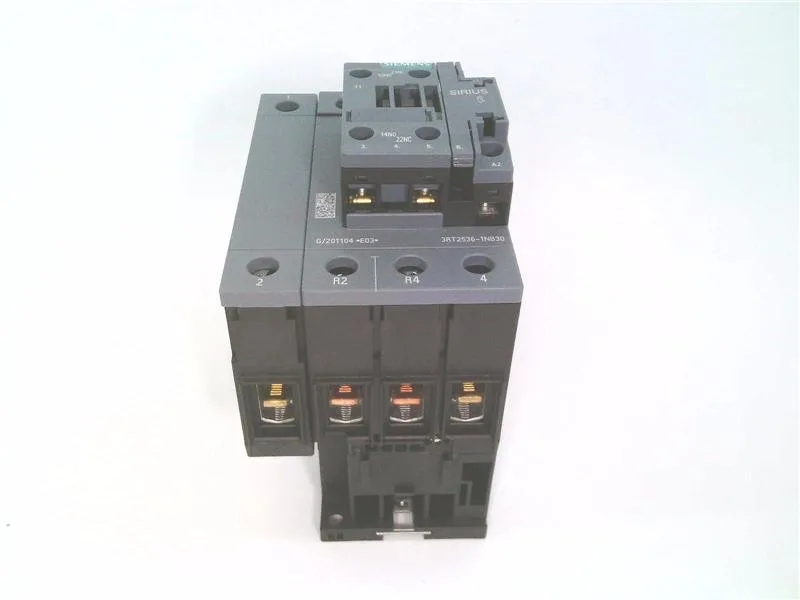

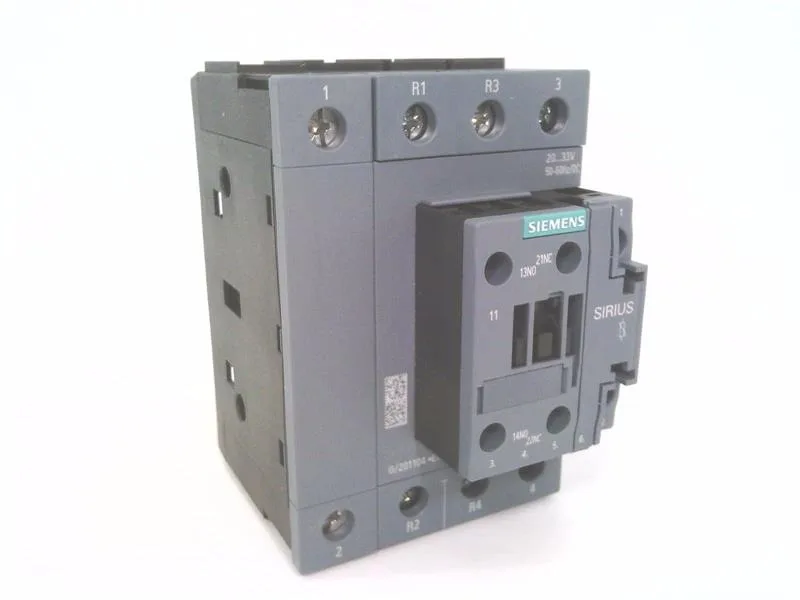

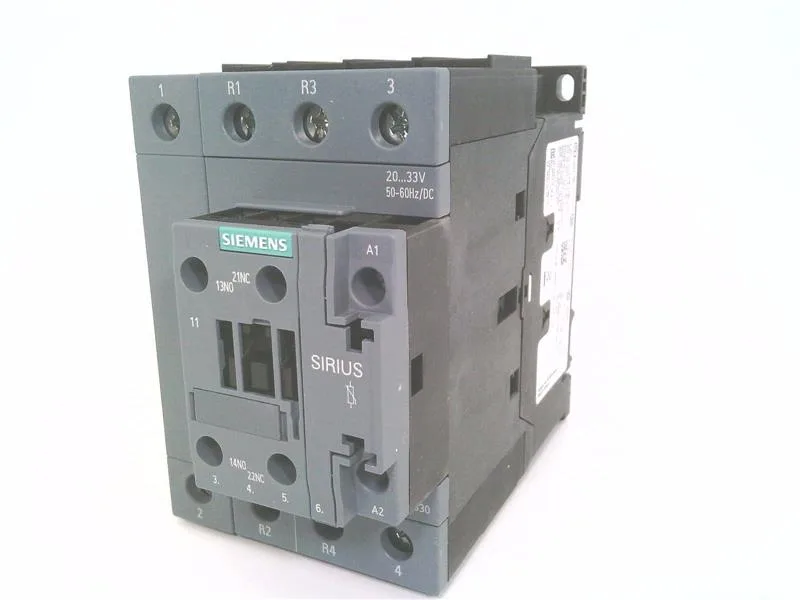

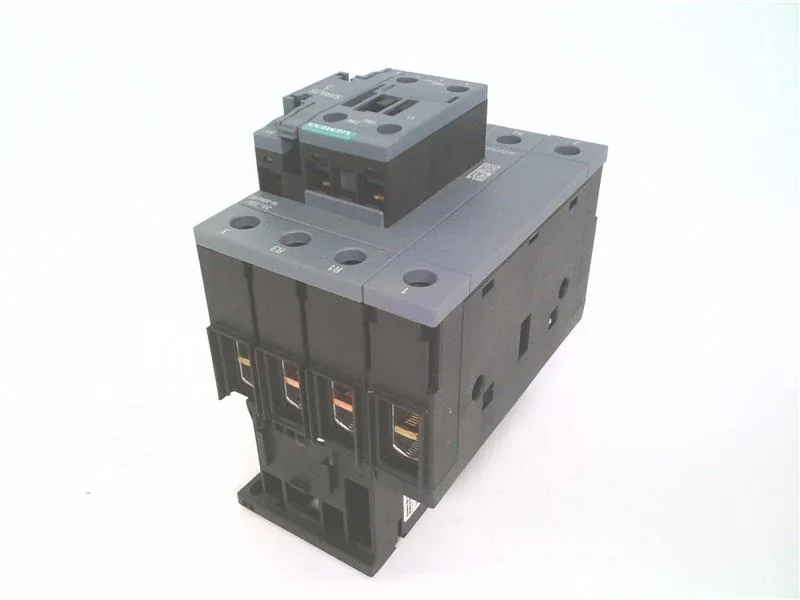

Siemens SIRIUS S2 contactor, 3RT2536-1NB30, 24 VDC coil, 3-pole, screw-type terminals, 75 mm width, snap-on DIN rail mounting.

$146.05Ref. price · indicative, final on quote
Siemens 3RT2536-1NB30 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT2536-1NB30 — Identification
ParameterValue
Contactor frame sizeS2
3RT2536-1NB30 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V6 A
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2536-1NB30 — Control & Coil
ParameterValue
Control supply voltage typeAC/DC
Rated value @ 50 Hz0.95
Rated value @ 50 Hz20 ... 33 V
3RT2536-1NB30 — Contacts & Poles
ParameterValue
Main poles4
Main NO contacts2
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2536-1NB30 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 160 A (690 V, 100 kA)
Short-circuit coordination type 2, fusegG: 80 A (690 V, 100 kA)
Aux. switch short-circuit protection, fusefuse gG: 10 A
3RT2536-1NB30 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022
Side-by-side mountingYes
3RT2536-1NB30 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2536-1NB30 — Environmental
ParameterValue
Operating temperature range-40 ... +70 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2536-1NB30 — Mechanical
ParameterValue
Width75 mm
Height114 mm
Depth130 mm
3RT2536-1NB30 — Specifications
ParameterValue
At AC30 ... 55 ms

Product details

Ratings & So-What

The magnet coil is screw-type terminals rated 20–33 V, with a pickup inrush peak of 12 A. At 24 V rated value the auxiliary contact carries 10 A; at 48 V it drops to 2 A, and at 125 V to 0.9 A — so if you are switching a 48 VDC pilot light or a 125 VDC relay, the contact rating governs the load, not the coil voltage.

Wiring & Termination

Terminals accept solid or stranded conductors: 2x (0.5–1.5 mm²) or 2x (0.75–2.5 mm²). The auxiliary switch is present, so you get one N.O. + one N.C. built in — no separate block needed for basic feedback.
