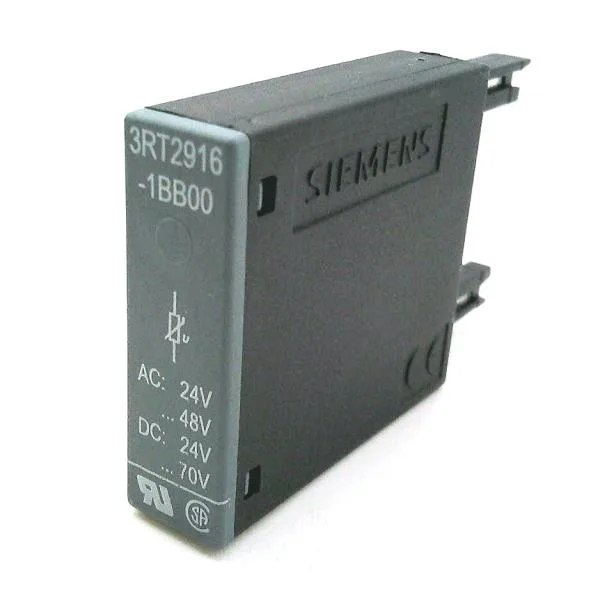

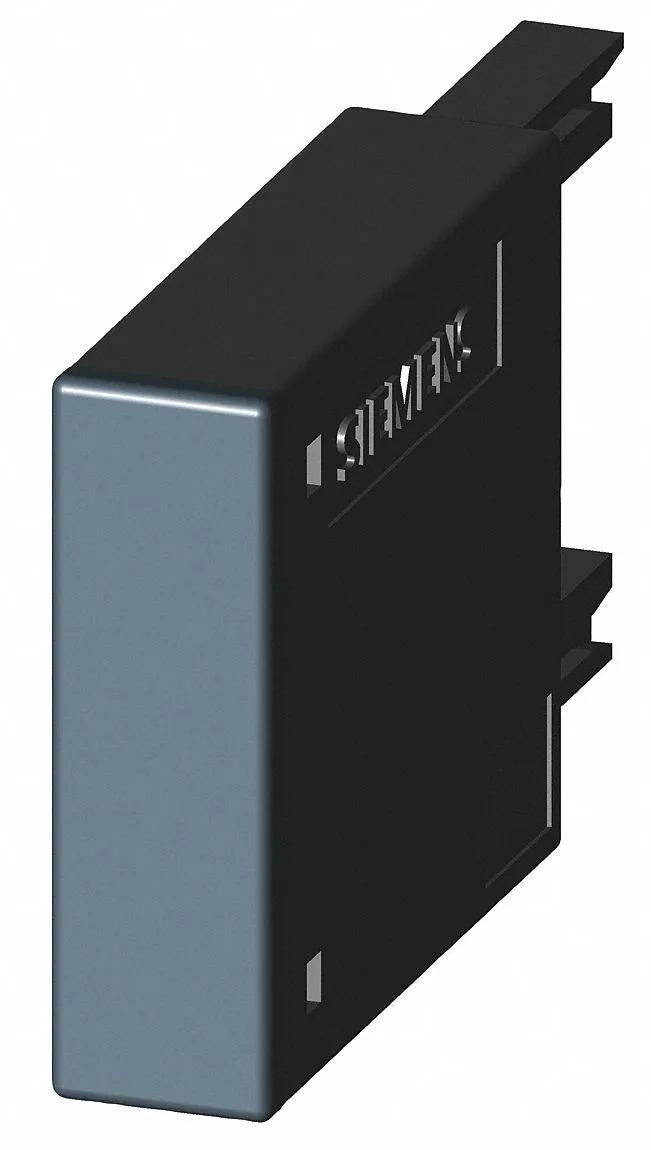

Siemens 3RT2916-1BB00
MPN3RT2916-1BB00
Active
surge suppressor, varistor, 24-48 V AC, 50/60 Hz, 24-70 V DC, for contactors 3RT2.1 and auxiliary contactors 3RH2
$4.31 – $20.20Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Contactor frame size | S00 |
| Parameter | Value |
|---|---|
| Control supply voltage type | AC/DC |
| Rated value @ 50 Hz | 24 ... 48 V |
| Parameter | Value |
|---|---|
| Mounting method | clip-on |
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -40 ... +80 °C |
| Parameter | Value |
|---|---|
| Width | 28 mm |
| Height | 46 mm |
| Depth | 9 mm |
| Parameter | Value |
|---|---|
| At DC | 24 ... 70 V |
| At 60 Hz | 24 ... 48 V |
| 1 rated value | 50 Hz |
| 2 rated value | 60 Hz |
| Mounting position | any |
| Substance prohibitance | 10/01/2009 |
| Design of the surge suppressor | Varistor |
MPN
3RT2916-1BB00
