Siemens 3RT2916-1BF00 — Contactors

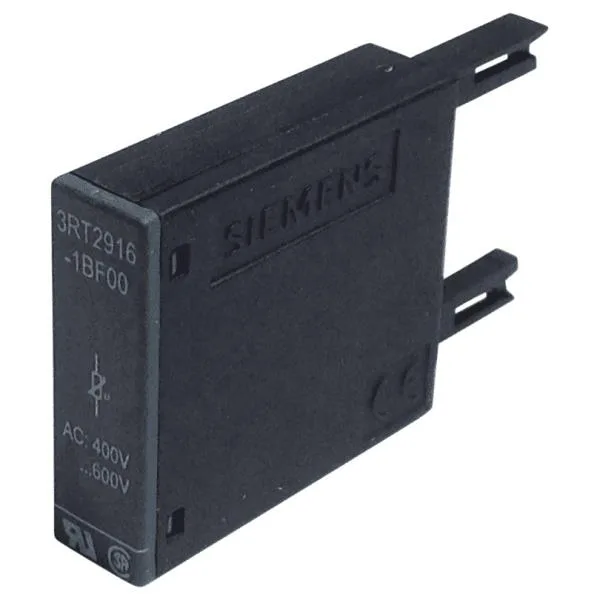

Siemens 3RT2916-1BF00 SIRIUS Surge Suppressor, Varistor, 400

MPN3RT2916-1BF00
Active

Siemens SIRIUS surge suppressor, varistor type, 400-600 V AC 50/60 Hz, for 3RT2 contactors and 3RH2 auxiliary contactors, 9 mm depth, clip-on mounting.

$4.31Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RT2916-1BF00 — Identification
ParameterValue
Contactor frame sizeS00
3RT2916-1BF00 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz400 ... 600V
3RT2916-1BF00 — Connection & Mounting
ParameterValue
Mounting methodclip-on
3RT2916-1BF00 — Environmental
ParameterValue
Operating temperature range-25 ... +60°C
Storage temperature range-40 ... +80°C
3RT2916-1BF00 — Mechanical
ParameterValue
Width28mm
Height46mm
Depth9mm
3RT2916-1BF00 — Other specifications
ParameterValue
At 60 Hz600 ... 400V
1 rated value50Hz
2 rated value60Hz
Mounting positionany
Design of the surge suppressorwith varistor

Product details

The Siemens 3RT2916-1BF00 is a SIRIUS surge suppressor built around a varistor, designed to clamp voltage transients across the coil of 3RT2 contactors and 3RH2 auxiliary contactors. It clips onto the contactor's front face — no extra wiring needed — and shunts spikes that would otherwise eat into the coil insulation or cause nuisance dropouts on a dirty line.

The 9 mm depth and 28 mm width keep it inside the contactor's silhouette — no extra panel depth eaten up, no gland-plate rework when retrofitting into a stuffed enclosure. Clip-on fastening and any mounting position mean it snaps onto the contactor in seconds, oriented however the wire routing demands.

Because it clips onto the contactor rather than occupying its own DIN-rail slot, the 3RT2916-1BF00 doesn't consume rail real estate. In a dense panel where every millimeter of DIN rail is already spoken for, that's the difference between fitting the circuit and needing a sub-panel.

Frequently asked questions

Will 3RT2916-1BF00 drop into a panel specified around 3RT1016-1AG61 without rewiring?

No — the 3RT1016-1AG61 is a power contactor, not a surge suppressor. The 3RT2916-1BF00 is an accessory that clips onto the contactor's coil terminals; it doesn't replace the contactor or change its wiring.

What is the depth of 3RT2916-1BF00?

The listed depth is 9 mm, which keeps it flush with the contactor body when clipped on.
