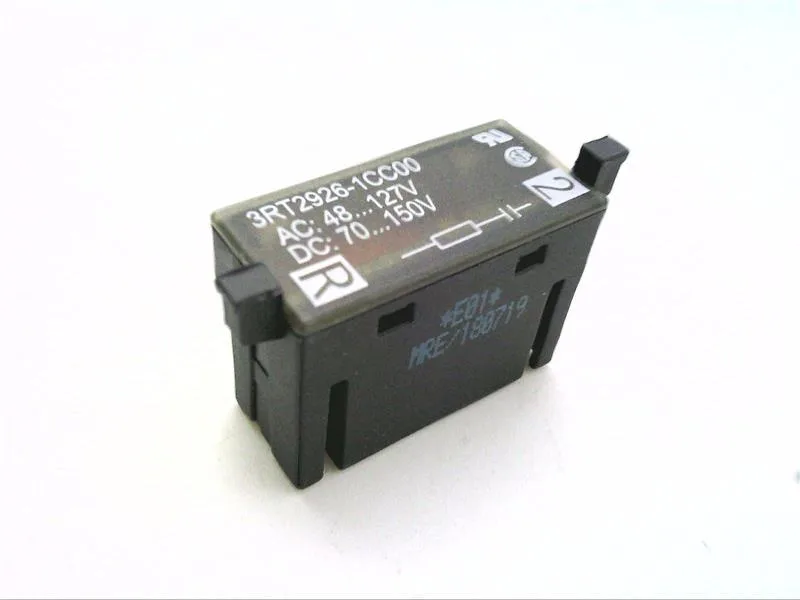

Siemens 3RT2926-1CC00 — Contactors

Siemens 3RT2926-1CC00

MPN3RT2926-1CC00
Active

surge suppressor, RC element, 48-127 V AC, 50/60 Hz, 70-150 V DC, for contactors 3RT2.2

$6.63 – $29.89Ref. price · indicative, final on quote
Siemens 3RT2926-1CC00 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

3RT2926-1CC00 — Identification
ParameterValue
Contactor frame sizeS0
3RT2926-1CC00 — Control & Coil
ParameterValue
Control supply voltage typeAC/DC
Rated value @ 50 Hz48 ... 127V
3RT2926-1CC00 — Connection & Mounting
ParameterValue
Mounting methodclip-on
3RT2926-1CC00 — Environmental
ParameterValue
Operating temperature range-25 ... +60°C
Storage temperature range-40 ... +80°C
3RT2926-1CC00 — Mechanical
ParameterValue
Width30mm
Height19mm
Depth12mm
3RT2926-1CC00 — Other specifications
ParameterValue
At DC70 ... 150V
At 60 Hz48 ... 127V
1 rated value50Hz
2 rated value60Hz
Mounting positionany
Design of the surge suppressorRC element
MPN
3RT2926-1CC00
