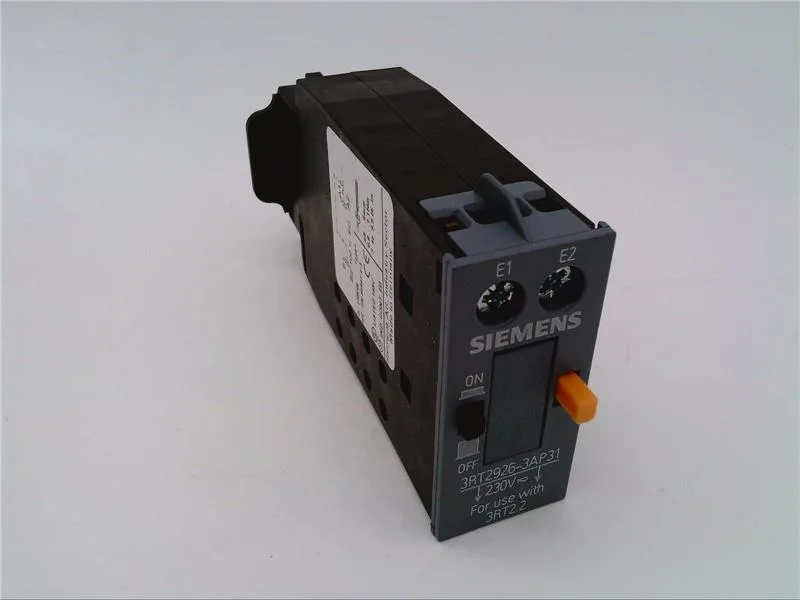

Siemens 3RT2926-3AP31
MPN3RT2926-3AP31
Active
mechanical latch, 230 V AC/DC, for contactors 3RT202, 3RT232, 3RT252
$38.10Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Contactor frame size | S0 |
Control & Coil
| Parameter | Value |
|---|---|
| Control supply voltage type | AC/DC |
| Rated value @ 50 Hz | 0.85 ... 1.1 |
| Rated value @ 50 Hz | 230 V |
Connection & Mounting
| Parameter | Value |
|---|---|
| Conductor cross-section, solid | 2x (0.5 ... 2.5 mm²), 1x 4 mm² |
| Conductor cross-section, solid or stranded | 0.5 ... 4 mm² |
| Conductor cross-section, finely stranded w/ ferrule | 2x (0.5 ... 2.5 mm²), 1x 2.5 mm² |
| Mounting method | clip-on |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -50 ... +80 °C |
Mechanical
| Parameter | Value |
|---|---|
| Width | 22 mm |
| Height | 48.4 mm |
| Depth | 84.3 mm |
MPN
3RT2926-3AP31
