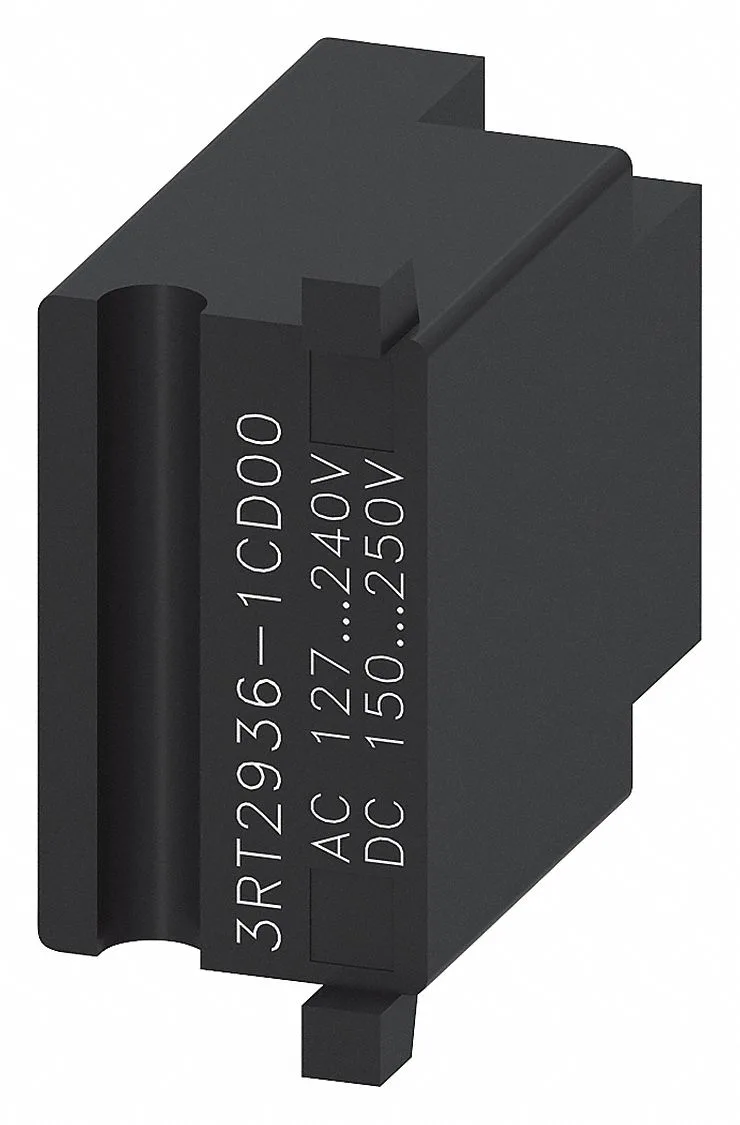

Siemens 3RT2936-1CD00
MPN3RT2936-1CD00
Active
surge suppressor, RC element, 127-240 V AC, 50/60 Hz, 150-250 V DC, for contactors 3RT2.3
$7.38 – $25.11Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Contactor frame size | S2 |
| Parameter | Value |
|---|---|
| Control supply voltage type | AC/DC |
| Rated value @ 50 Hz | 127 ... 240 V |
| Parameter | Value |
|---|---|
| Mounting method | clip-on |
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -40 ... +80 °C |
| Parameter | Value |
|---|---|
| Width | 30 mm |
| Height | 30 mm |
| Depth | 15 mm |
| Parameter | Value |
|---|---|
| At DC | 150 ... 250 V |
| At 60 Hz | 127 ... 240 V |
| 1 rated value | 50 Hz |
| 2 rated value | 60 Hz |
| Mounting position | any |
| Substance prohibitance | 10/01/2014 |
| Design of the surge suppressor | RC element |
MPN
3RT2936-1CD00
