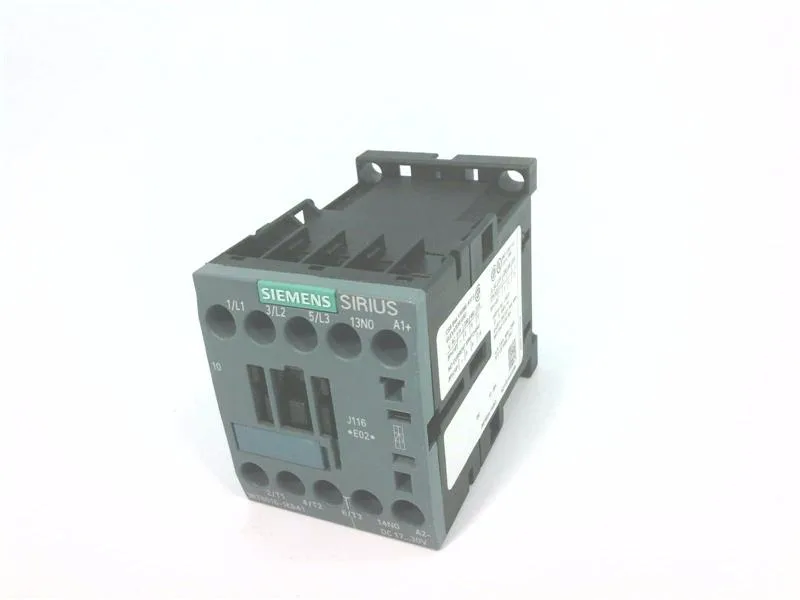

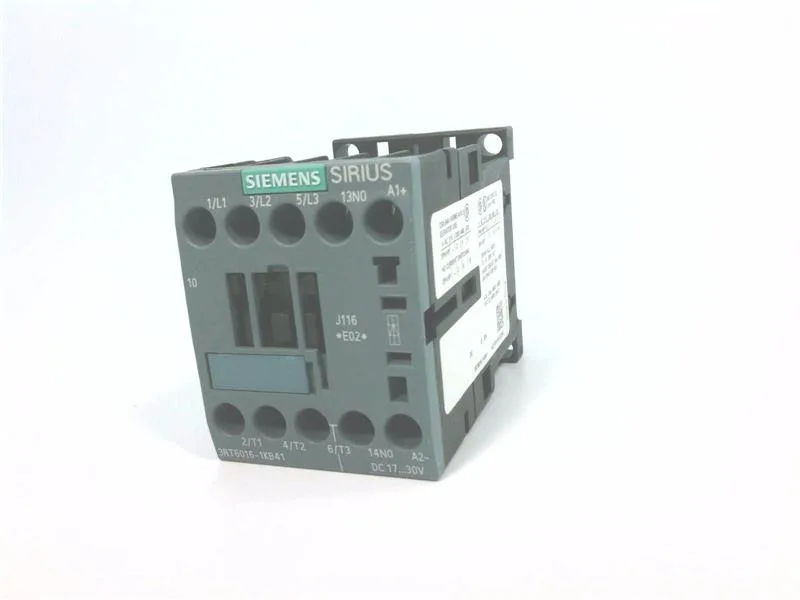

Siemens 3RT6016-1KB41 SIRIUS Coupling Contactor, 24 VDC, 6 A

MPN3RT6016-1KB41

Siemens SIRIUS coupling contactor, Size S00, 24 VDC coil, 6 A rated, screw-type terminals, screw and snap-on mounting onto 35 mm DIN rail (DIN EN 50022).

$76.12Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT6016-1KB41 — Identification
ParameterValue
Contactor frame sizeS00
3RT6016-1KB41 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated value @ 400 V3 A
Rated value @ 690 V1 A
Rated value @ 230 V10 A
Rated value @ 24 V6 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT6016-1KB41 — Control & Coil
ParameterValue
Control supply voltage typeDC
3RT6016-1KB41 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT6016-1KB41 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegL/gG LV HRC 3NA, DIAZED 5SB, NEOZED 5SE: 35 A
Short-circuit coordination type 2, fusegL/gG LV HRC 3NA, DIAZED 5SB, NEOZED 5SE: 20 A
Aux. switch short-circuit protection, fusefuse gL/gG: 10 A
3RT6016-1KB41 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022
Side-by-side mountingYes
3RT6016-1KB41 — Durability
ParameterValue
Durability (operating cycles, typ.)30 000 000
3RT6016-1KB41 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT6016-1KB41 — Mechanical
ParameterValue
Width45 mm
Height57.5 mm
Depth73 mm

Product details

Side-by-side mounting is allowed — no gap needed between units. That 73 mm depth means it clears a standard 80 mm deep enclosure backplate with room for wiring.

Rated insulation voltage 690 V, with AC-3 and AC-3e maximum rated voltage also 690 V — so it's good for 400 V line-to-line motor circuits in most of the world. The AC-3 rating (motor starting, not full-load) governs the real use: at 400 V and 60 °C it's rated for 13 kW motor load; at 690 V and 60 °C, 22 kW. Those are the numbers a panel builder sizes against. Switching frequency maxes out at 750 1/h for AC-3 duty, 1 000 1/h for AC-1 (resistive), and 10 000 1/h for DC switching. Mechanical life typical is 30 million operations — that's a bin that won't cycle out for years in normal service.

RoHS substance prohibition date 05/01/2012 — compliant with the EU RoHS directive as of that date.
