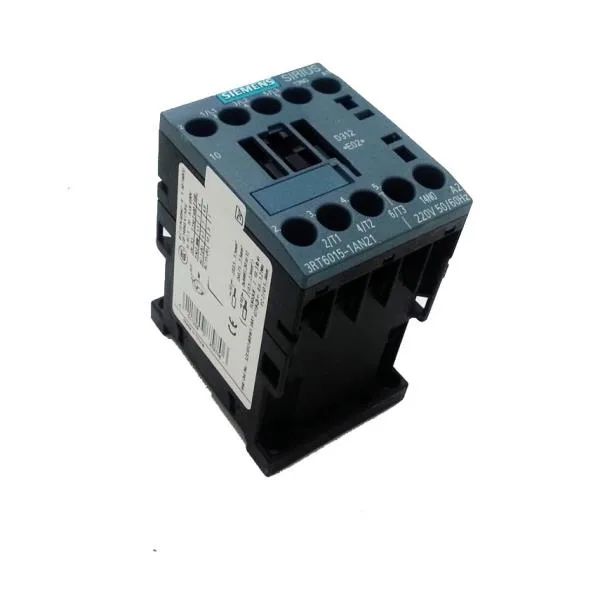

It carries screw-type terminals for the main current circuit and mounts via screw or snap-on onto 35 mm DIN rail per DIN EN 50022, fitting a standard panel footprint at 45 mm wide, 57.5 mm high, and 73 mm deep.
The key selection figures are the motor ratings at 60 °C: 7.5 kW at 230 V, 13 kW at 400 V, and 22 kW at 690 V. These are the continuous switching capacities for a three-phase induction motor in AC-3 duty — the most common load type on a production line. The 400 V rating (13 kW) is the one that typically governs fit for a 400 V three-phase supply in European panels.
Integration notes
The contactor accepts 2× (0.5 to 1.5 mm²), 2× (0.75 to 2.5 mm²), or 2× 4 mm² solid or stranded wire. Minimum conductor size at 40 °C is 4 mm²; at 60 °C it drops to 2.5 mm².
