Siemens 3RU1116-1FB0 — Overload Relays

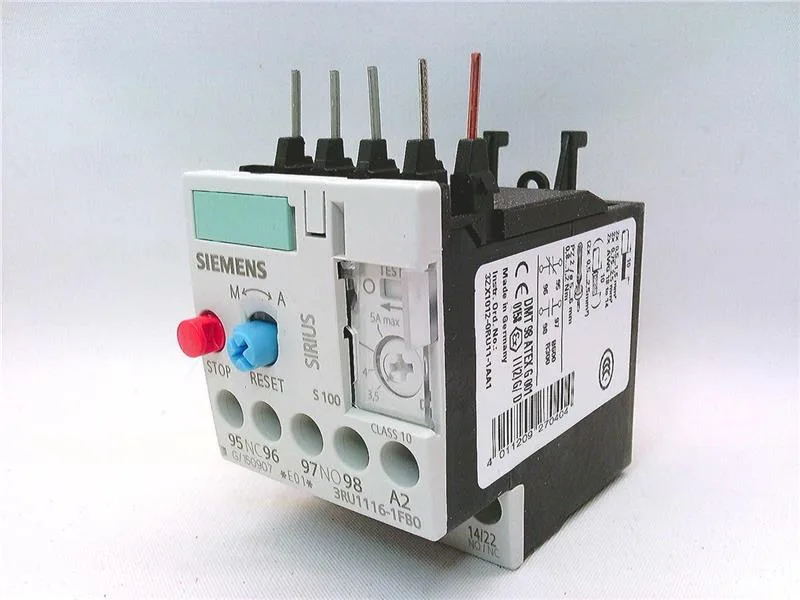

Siemens 3RU1116-1FB0 SIRIUS Thermal Overload Relay, Size S00

MPN3RU1116-1FB0

Siemens SIRIUS thermal overload relay, 3RU1116-1FB0, Size S00, 3-pole, Class 10, screw-type terminals, IP20 front protection.

$39.89Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

3RU1116-1FB0 — Identification
ParameterValue
Product brand nameSIRIUS
Product designationthermal overload relay
Frame size (overload relay)S00
Combinable contactor sizesS00
3RU1116-1FB0 — Protection & Trip
ParameterValue
Overload current setting range3.5 ... 5 A
Trip classCLASS 10
3RU1116-1FB0 — Electrical (main circuit)
ParameterValue
Poles (main circuit)3
Rated insulation voltage (AC, pollution degree 3)690 V
Rated surge withstand voltage6 kV
Main current circuitscrew-type terminals
Power loss at rated current (hot)6.6 W
Per pole2.2 W
3RU1116-1FB0 — Auxiliary contacts
ParameterValue
Auxiliary contacts: NO1
Auxiliary contacts: NC1
Auxiliary contacts: CO (changeover)0
Auxiliary switch short-circuit protection (required fuse)fuse gL/gG: 6 A, quick: 10 A
Switching current at 24 V1 A
Switching current at 110 V0.22 A
Switching current at 120 V3 A
Switching current at 125 V0.22 A
Switching current at 220 V0.11 A
Switching current at 230 V2 A
Switching current at 400 V1 A
3RU1116-1FB0 — Connection & Mounting
ParameterValue
Mounting / fastening methodContactor mounting
Mounting positionwith vertical mounting surface +/-135° rotatable, with vertical mounting surface +/- 45° tiltable to the front and back
Auxiliary/control circuit connection typescrew-type terminals
Conductor cross-section: solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section: finely stranded with ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor range (AWG), main contacts2x (20 ... 16), 2x (18 ... 14), 2x 12
Conductor range (AWG), auxiliary contacts2x (20 ... 16), 2x (18 ... 14)
3RU1116-1FB0 — Environmental
ParameterValue
Relative humidity, operating100 %
Max. installation altitude2 000 m
Shock resistance8g / 10 ms
3RU1116-1FB0 — Mechanical
ParameterValue
Width45 mm
Height87 mm
Depth78 mm
3RU1116-1FB0 — Specifications
ParameterValue
Type Of ProtectionDMT 98 ATEX G 001

Product details

Siemens 3RU1116-1FB0 SIRIUS Thermal Overload Relay

The Siemens 3RU1116-1FB0 is a Size S00 thermal overload relay from the SIRIUS family, designed to protect three-phase motor circuits against overload and phase failure. The relay mounts directly to the matching SIRIUS contactor, saving DIN-rail space and reducing wiring in the panel.

The relay mounts directly onto the SIRIUS contactor via the fastening method specified as contactor mounting — no separate DIN-rail clip needed for the relay itself, though the contactor may be DIN-rail or screw-panel mounted. The mounting position allows a vertical mounting surface with +/-135° rotation and +/-45° tilt to the front and back, giving flexibility in panel layout. The overall dimensions are 87 mm height, 45 mm width, and 78 mm depth.

MPN
3RU1116-1FB0
