Siemens SIRIUS Electronic Remote Reset, 24-30 V AC/DC, screw-type terminals, for overload relay sizes S00, S0, S2, S3.
| Parameter | Value |
|---|---|
| Product brand name | SIRIUS |
| Product designation | Electrical RESET |
| Frame size (overload relay) | S00, S0, S2, S3 |
| Parameter | Value |
|---|---|
| Conductor cross-section: solid | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Conductor cross-section: solid or stranded | 0.5 ... 2.5 mm² |
| Conductor cross-section: finely stranded with ferrule | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Parameter | Value |
|---|---|
| Operating temperature | -20 ... +70 °C |
| Storage temperature | -50 ... +80 °C |
| Parameter | Value |
|---|---|
| At DC | 24 ... 30 V |
| At 50 Hz | 24 ... 30 V |
| At 60 Hz | 24 ... 30 V |
| 1 rated value | 50 Hz |
| 2 rated value | 60 Hz |
| Design of the product | Electrical Remote RESET |
| Substance prohibitance | 07/01/2006 |
| Type of voltage of the control supply voltage | AC/DC |
| Type of electrical connection for auxiliary and control circuit | screw-type terminals |

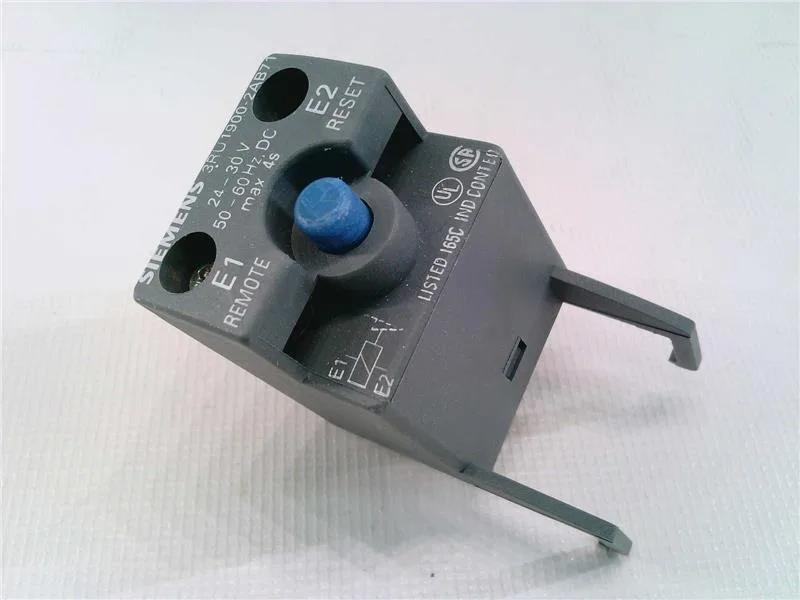

The Siemens 3RU1900-2AB71 is an electronic remote reset module from the SIRIUS family, designed to remotely reset overload relays after a trip event without requiring panel access.
This reset module mounts onto Siemens SIRIUS overload relays in frame sizes S00, S0, S2, and S3 — the full range of standard IEC motor-protection relays. The screw-type auxiliary and control terminals accept two conductors per clamp: 0.5 to 1.5 mm² or 0.75 to 2.5 mm² solid/stranded, or finely stranded with ferrule.
It fits SIRIUS overload relay frame sizes S00, S0, S2, and S3.
The control supply voltage is 24 to 30 V AC/DC, compatible with 50 Hz and 60 Hz supplies.
