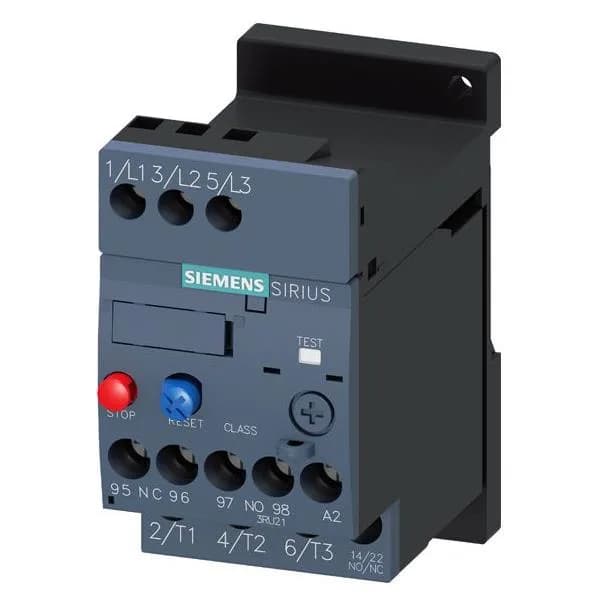

Siemens 3RU2116-0JB1 — Overload Relays

Siemens 3RU2116-0JB1 SIRIUS Thermal Overload Relay, Class 10

MPN3RU2116-0JB1
Active

Siemens SIRIUS 3RU2116-0JB1 thermal overload relay, Size S00, Class 10, 690 V rated, 1.6 W per pole, screw terminals, auxiliary switch integrated.

$36.00Ref. price · indicative, final on quote
Siemens 3RU2116-0JB1 datasheet (PDF)
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Identification

3RU2116-0JB1 — Identification
ParameterValue
Product brand nameSIRIUS
Product designationthermal overload relay
Frame size (overload relay)S00
Combinable contactor sizesS00
Reference code (IEC 81346-2)F

Protection & Trip

3RU2116-0JB1 — Protection & Trip
ParameterValue
Overload current setting range0.7 ... 1 A
Trip classCLASS 10
Overload release typethermal

Electrical (main circuit)

3RU2116-0JB1 — Electrical (main circuit)
ParameterValue
Rated operational current1 A
Poles (main circuit)3
Rated operating frequency50 ... 60 Hz
Rated insulation voltage (AC, pollution degree 3)690 V
Rated value (AC-3e), max.690 V
Rated surge withstand voltage6 kV
Main current circuitscrew-type terminals
Power loss at rated current (hot)4.8 W
Per pole1.6 W

Auxiliary contacts

3RU2116-0JB1 — Auxiliary contacts
ParameterValue
Auxiliary contacts: NO1
Auxiliary contacts: NC1
Auxiliary contacts: CO (changeover)0
Auxiliary switch short-circuit protection (required fuse)fuse gG: 6 A, quick: 10 A
Switching current at 24 V2 A
Switching current at 60 V0.3 A
Switching current at 110 V0.22 A
Switching current at 120 V3 A
Switching current at 125 V0.22 A
Switching current at 220 V0.11 A
Switching current at 230 V2 A
Switching current at 400 V1 A

Connection & Mounting

3RU2116-0JB1 — Connection & Mounting
ParameterValue
Mounting / fastening methodstand-alone installation
Mounting positionany
Main-circuit connector arrangementTop and bottom
Auxiliary/control circuit connection typescrew-type terminals
Removable aux./control terminalNo
Conductor cross-section: solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section: finely stranded with ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor range (AWG), main contacts2x (20 ... 16), 2x (18 ... 14), 2x 12
Conductor range (AWG), auxiliary contacts2x (20 ... 16), 2x (18 ... 14)

Environmental

3RU2116-0JB1 — Environmental
ParameterValue
Operating temperature-40 ... +70 °C
Storage temperature-55 ... +80 °C
Transport temperature-55 ... +80 °C
Relative humidity, operating10 ... 95 %
Max. installation altitude2 000 m

Mechanical

3RU2116-0JB1 — Mechanical
ParameterValue
Width45 mm
Height89 mm
Depth80 mm

Product details

Trip class and motor protection timing

The 3RU2116-0JB1: The thermal overload release design (bimetal + heater) provides inverse-time protection that tracks the motor's actual heating profile, not a fixed threshold.

Panel footprint and mounting

Size S00 frame — 45 mm wide, 89 mm tall, 80 mm deep — fits the standard SIRIUS S00 mounting footprint used across contactors and relays in this series.

Auxiliary contact ratings across control voltages

The note "for message 'Tripped'" indicates this auxiliary contact is wired specifically to signal the tripped state back to the PLC or annunciator, not the reset or test position.

Environmental range and temperature compensation

Operating ambient -40…+70 °C with temperature compensation active over -40…+60 °C — the compensation circuit corrects the trip point for ambient changes so the motor protection stays accurate regardless of panel heat or outdoor installation. Storage and transport range -55…+80 °C — wide enough for unheated warehouses or container shipping across climate zones.
