Siemens 3RU2116-1FC1 — Overload Relays

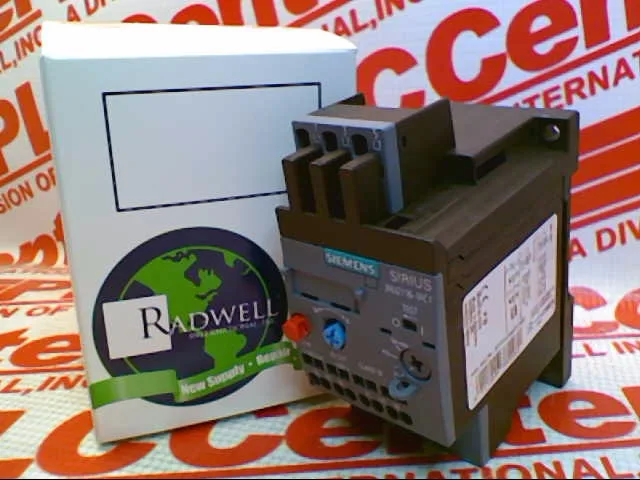

Siemens 3RU2116-1FC1 SIRIUS Thermal Overload Relay, CLASS 10

MPN3RU2116-1FC1
Active

Siemens SIRIUS thermal overload relay, 3RU2116-1FC1, CLASS 10, size S00, 690 V rated, spring-loaded terminals, stand-alone installation.

$34.29Ref. price · indicative, final on quote
Siemens 3RU2116-1FC1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RU2116-1FC1 — Identification
ParameterValue
Product brand nameSIRIUS
Product designationthermal overload relay
Frame size (overload relay)S00
Combinable contactor sizesS00
Reference code (IEC 81346-2)F
3RU2116-1FC1 — Protection & Trip
ParameterValue
Overload current setting range3.5 ... 5 A
Trip classCLASS 10
Overload release typethermal
3RU2116-1FC1 — Electrical (main circuit)
ParameterValue
Rated operational current5 A
Poles (main circuit)3
Rated operating frequency50 ... 60 Hz
Rated insulation voltage (AC, pollution degree 3)690 V
Rated value (AC-3e), max.690 V
Rated surge withstand voltage6 kV
Main current circuitspring-loaded terminals
Power loss at rated current (hot)6.6 W
Per pole2.2 W
3RU2116-1FC1 — Auxiliary contacts
ParameterValue
Auxiliary contacts: NO1
Auxiliary contacts: NC1
Auxiliary contacts: CO (changeover)0
Auxiliary switch short-circuit protection (required fuse)fuse gG: 6 A, quick: 10 A
Switching current at 24 V2 A
Switching current at 60 V0.3 A
Switching current at 110 V0.22 A
Switching current at 120 V3 A
Switching current at 125 V0.22 A
Switching current at 220 V0.11 A
Switching current at 230 V2 A
Switching current at 400 V1 A
3RU2116-1FC1 — Connection & Mounting
ParameterValue
Mounting / fastening methodstand-alone installation
Mounting positionany
Main-circuit connector arrangementTop and bottom
Auxiliary/control circuit connection typespring-loaded terminals
Removable aux./control terminalNo
Conductor cross-section: solid or stranded2x (0.5 ... 2.5 mm²)
Conductor cross-section: finely stranded with ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
3RU2116-1FC1 — Environmental
ParameterValue
Operating temperature-40 ... +70 °C
Storage temperature-55 ... +80 °C
Transport temperature-55 ... +80 °C
Relative humidity, operating10 ... 95 %
Max. installation altitude2 000 m
3RU2116-1FC1 — Mechanical
ParameterValue
Width45 mm
Height102 mm
Depth79 mm

Product details

The S00 frame size keeps it compact for 45 mm wide DIN-rail or panel mounting, and it is rated for a maximum of 690 V on the main circuit. The auxiliary contacts are integrated and rated for switching at various control voltages: 2 A at 24 V, 2 A at 230 V, 1 A at 400 V, and 0.75 A at 690 V, among others. This covers both 24 VDC PLC-level signals and 230 VAC pilot circuits without an extra interface relay.

The relay is designed for stand-alone installation — it does not require a separate base or adapter. Spring-loaded terminals on the main current circuit accept 2 × (0.5... 2.5 mm²) solid or stranded wire, and the screwdriver tip size is specified at 3.0 × 0.5 mm.

The relay carries a substance prohibitance date of 10/01/2009, aligning with early RoHS compliance.

Sourcing posture

This is a standard active catalog item, not a last-time-buy or surplus part.

Frequently asked questions

Where can I buy 3RU2116-1FC1 and how do I get a price?

This part is sourced and quoted to order against an RFQ through independent distribution. Submit an RFQ to confirm current availability and pricing at quote time.

Will 3RU2116-1FC1 drop into a panel specified around 3RT2015-2AP02?

The 3RU2116-1FC1 is a thermal overload relay, while 3RT2015-2AP02 is a contactor. They are designed to work together in the same SIRIUS system and share the S00 frame size, so the relay mounts directly onto the contactor or alongside it on the DIN rail without rewiring the main power circuit.

What is the note 'for message Tripped' on this component line?

The note indicates that the auxiliary contact position on the 3RU2116-1FC1 is labeled for the 'Tripped' message — the normally-closed contact that opens when the relay has tripped on overload, used to signal a fault condition to the PLC or annunciator.

What is 3RU2116-1FC1's listed depth?

The depth is 79 mm. Combined with a width of 45 mm and height of 102 mm, this is the standard S00 footprint.

What compliance documentation does Siemens provide for 3RU2116-1FC1?

The part carries a substance prohibitance date of 10/01/2009, indicating RoHS compliance from that date. Standard Siemens documentation includes the declaration of conformity and CE marking for the Low Voltage Directive.

MPN
3RU2116-1FC1
