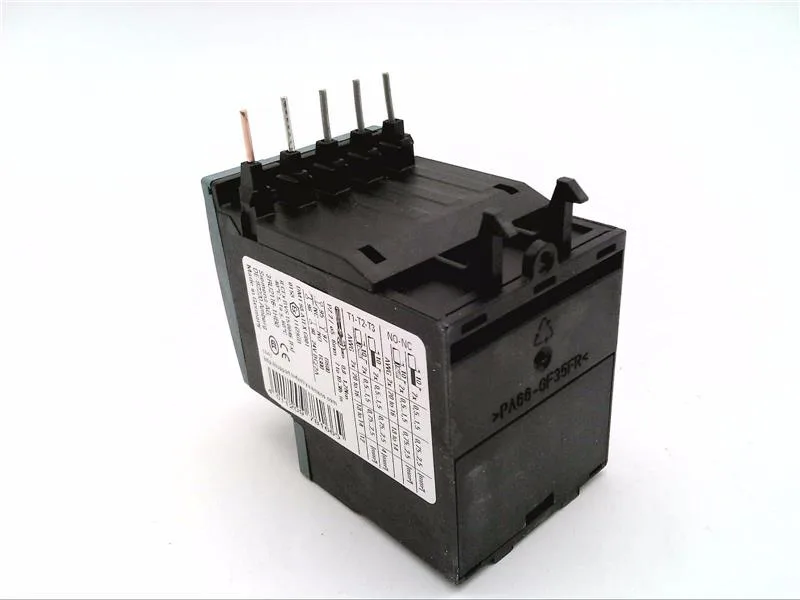

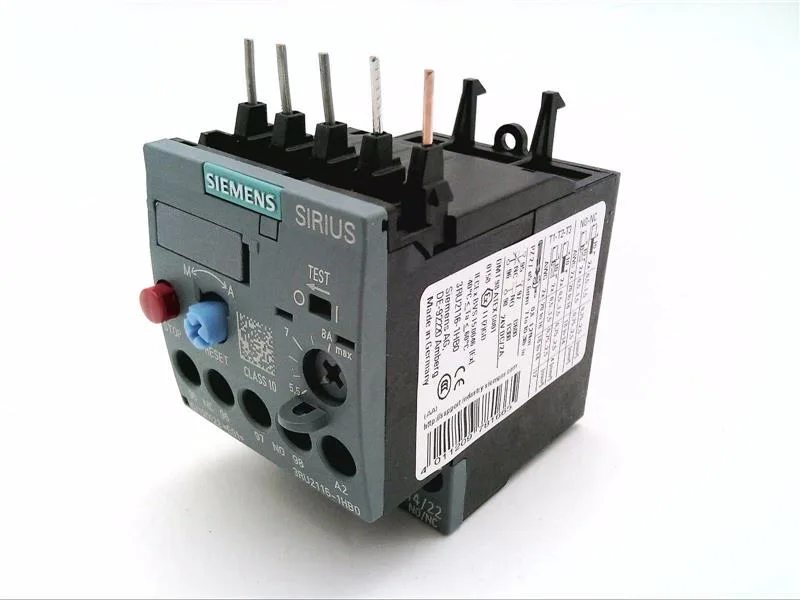

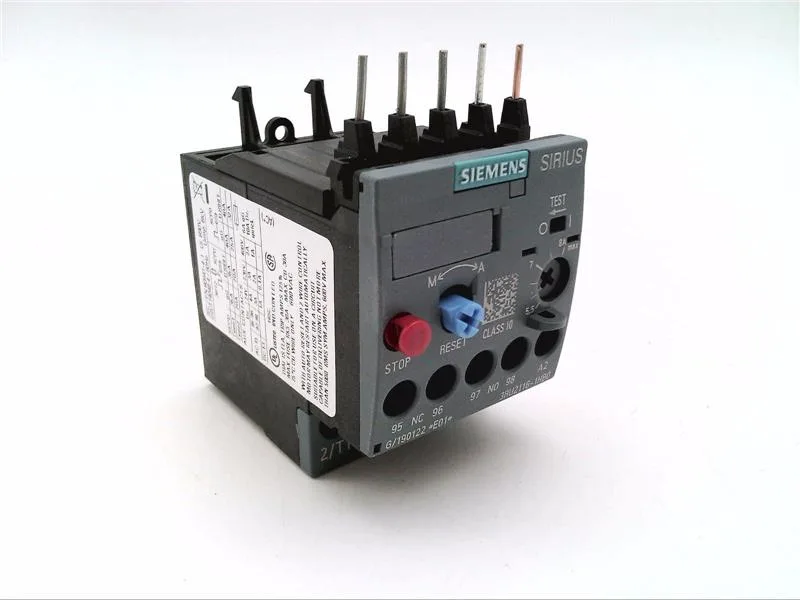

It mounts directly onto a contactor, making it a compact, integrated solution for motor starter assemblies in control panels. The relay is rated for a maximum of 690 V and carries motor power ratings of 3 kW at 400 V, 4 kW at 500 V, and 5.5 kW at 690 V. For current-based sizing, it handles 8 A at both 480 V and 600 V. The auxiliary switch is integrated into the housing, providing a single-pole changeover contact for signaling the tripped state — the front-mounted flag and the electrical contact both indicate the condition.
No need to hunt for surplus or worry about a looming end-of-life notice.
The relay fastens directly to a contactor via the contactor mounting method — no DIN rail required, though the contactor itself may be DIN-rail mounted. This saves panel space and reduces wiring between the overload and the contactor coil. Mounting position is unrestricted, so it can be placed horizontally, vertically, or at an angle without derating. Main circuit connections use screw-type terminals, accepting solid or stranded wire: 2× (0.5 to 1.5 mm²) or 2× (0.75 to 2.5 mm²). The screwdriver tip required is Pozidriv PZ2 with a shaft diameter of 5 to 6 mm.
The relay includes temperature compensation from -40 to +60 °C, so the trip curve stays accurate across the working range. The MTTF with high demand rate is 2,280 years, reflecting the reliability of the electromechanical design. The substance prohibition date of 10/01/2009 indicates compliance with RoHS-like substance restrictions from that date forward.
