Its Class 10 trip characteristic means it clears a stalled-rotor condition fast enough to protect standard induction motors — the trip curve opens within 10 seconds at 7.2× the thermal setting, which is what keeps the winding insulation intact during a jammed conveyor or crusher overload. Breaking capacity hits 100 kA at 400 V, 500 V, and 690 V — that's the full rated short-circuit current the device can interrupt without welding contacts or venting plasma. In a 480 V panel the same rating applies, so it handles the high-fault-current scenarios common in mining and heavy industrial distribution.

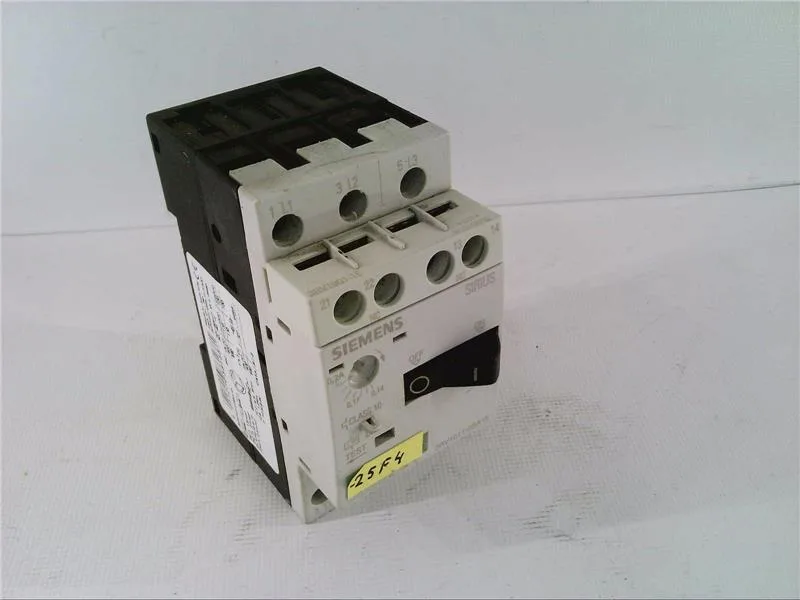

Siemens 3RV1011-0BA15 SIRIUS Circuit Breaker, 100 kA at 400
MPN3RV1011-0BA15
Active
Siemens SIRIUS circuit breaker, 3RV1011-0BA15, Class 10 trip, 100 kA breaking capacity at 400 V, screw and snap-on mounting on 35 mm DIN rail.
$37.03Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SIRIUS |
| Product designation | Circuit breaker |
| Frame size | S00 |
| Parameter | Value |
|---|---|
| Rated operational current (Ie) | 0.2 A |
| Rated voltage | 20 ... 690 V |
| Rated voltage, AC-3 (max.) | 690 V |
| Rated frequency | 50 ... 60 Hz |
| Rated insulation voltage (Ui), pollution degree 3 | 690 V |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Number of poles | 3 |
| Power loss (AC, hot) | 5.5 W |
| Power loss, per pole (AC, hot) | 1.8 W |
| Parameter | Value |
|---|---|
| Overload release setting range | 0.14 ... 0.2 A |
| Instantaneous short-circuit trip current | 2.6 A |
| Trip class | CLASS 10 |
| Breaking capacity at 240 V (AC) | 100 kA |
| Breaking capacity at 400 V (AC) | 100 kA |
| Breaking capacity at 500 V (AC) | 100 kA |
| Breaking capacity at 690 V (AC) | 100 kA |
| Breaking capacity at 240 V | 100 kA |
| Breaking capacity at 690 V | 100 kA |
| Short-circuit trip type | magnetic |
| Overload release type | thermal |
| Short-circuit protection | Yes |
| Phase-failure detection | Yes |
| Ground-fault detection | No |
| Auxiliary switch extendable | Yes |
| Parameter | Value |
|---|---|
| Endurance, main contacts (typ.) | 100 000 |
| Endurance, auxiliary contacts (typ.) | 100 000 |
| Switching frequency, AC-3 (max.) | 15 1/h |
| Auxiliary CO (changeover) contacts | 0 |
| Parameter | Value |
|---|---|
| Main-circuit terminal type | screw-type terminals |
| Main-circuit connector arrangement | Top and bottom |
| Conductor cross-section, solid / stranded | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Conductor cross-section, finely stranded with ferrule | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Parameter | Value |
|---|---|
| Height | 90 mm |
| Width | 45 mm |
| Depth | 75 mm |
| Mounting method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715 |
| Mounting position | any |
| Parameter | Value |
|---|---|
| Operating temperature | -20 ... +60 °C |
| Storage temperature | -50 ... +80 °C |
| Transport temperature | -50 ... +80 °C |
| Relative humidity (operation) | 10 ... 95 % |
| Max. installation altitude | 2 000 m |
| Parameter | Value |
|---|---|
| Design Of The Product | For motor protection |
