Siemens 3RV1011-0CA15 — Motor Protection Circuit Breakers (MPCB)

Siemens SIRIUS 3RV1011-0CA15 Circuit Breaker, Trip Class 10,

MPN3RV1011-0CA15
Active

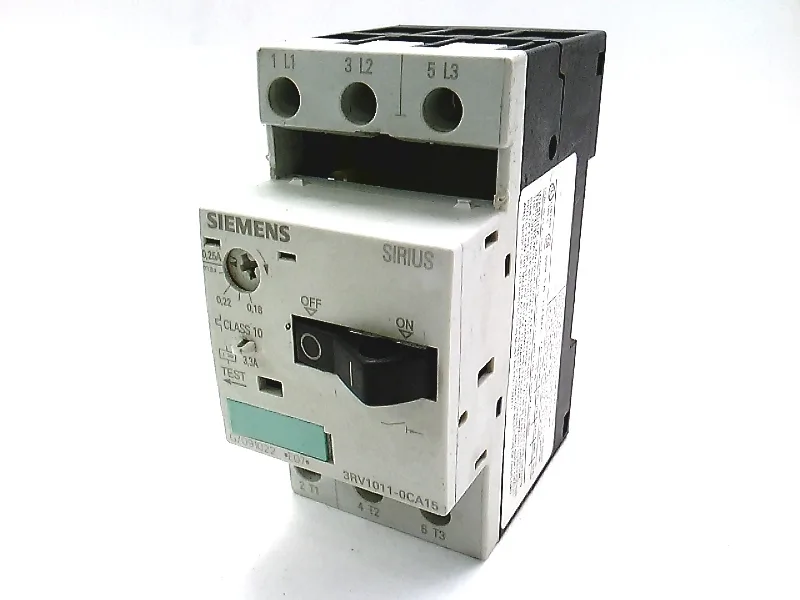

Siemens SIRIUS, Circuit breaker, 3RV1011-0CA15, Trip Class 10, 100 kA breaking capacity at 400 V, 45 mm width, screw and snap-on mounting onto 35 mm DIN rail.

$36.58Ref. price · indicative, final on quote
Siemens 3RV1011-0CA15 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RV1011-0CA15 — Identification
ParameterValue
SeriesSIRIUS
Product designationCircuit breaker
Frame sizeS00
3RV1011-0CA15 — Electrical
ParameterValue
Rated operational current (Ie)0.25 A
Rated voltage20 ... 690 V
Rated voltage, AC-3 (max.)690 V
Rated frequency50 ... 60 Hz
Rated insulation voltage (Ui), pollution degree 3690 V
Rated impulse withstand voltage (Uimp)6 kV
Number of poles3
Power loss (AC, hot)5.5 W
Power loss, per pole (AC, hot)1.8 W
3RV1011-0CA15 — Protection & Tripping
ParameterValue
Overload release setting range0.18 ... 0.25 A
Instantaneous short-circuit trip current3.3 A
Trip classCLASS 10
Breaking capacity at 240 V (AC)100 kA
Breaking capacity at 400 V (AC)100 kA
Breaking capacity at 500 V (AC)100 kA
Breaking capacity at 690 V (AC)100 kA
Breaking capacity at 240 V100 kA
Breaking capacity at 690 V100 kA
Short-circuit trip typemagnetic
Overload release typethermal
Short-circuit protectionYes
Phase-failure detectionYes
Ground-fault detectionNo
Auxiliary switch extendableYes
3RV1011-0CA15 — Endurance & Switching
ParameterValue
Endurance, main contacts (typ.)100 000
Endurance, auxiliary contacts (typ.)100 000
Switching frequency, AC-3 (max.)15 1/h
Auxiliary CO (changeover) contacts0
3RV1011-0CA15 — Connections
ParameterValue
Main-circuit terminal typescrew-type terminals
Main-circuit connector arrangementTop and bottom
Conductor cross-section, solid / stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, finely stranded with ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
3RV1011-0CA15 — Mechanical
ParameterValue
Height90 mm
Width45 mm
Depth75 mm
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting positionany
3RV1011-0CA15 — Environmental
ParameterValue
Operating temperature-20 ... +60 °C
Storage temperature-50 ... +80 °C
Transport temperature-50 ... +80 °C
Relative humidity (operation)10 ... 95 %
Max. installation altitude2 000 m
3RV1011-0CA15 — Specifications
ParameterValue
Design Of The ProductFor motor protection

Product details

The Siemens SIRIUS 3RV1011-0CA15 is a circuit breaker rated for motor protection with Trip Class 10, meaning it trips within 10 seconds at 7.2× the thermal setting — the standard for standard-duty induction motor starts. The 45 mm width fits standard comb-busbar spacing, and the M3 main-contact terminals accept 2× (0.5 to 1.5 mm²) solid or stranded, or 2× (0.75 to 2.5 mm²) — no special ferrules needed for panel wiring.

Deployment context

The 20 mm clearance required upwards and downwards, and 9 mm at the side, means it fits standard DIN-rail enclosures without forced derating — but verify side clearance if packing multiple units on a single rail.

Rated voltage range is 20 to 690 V, covering 24 V control circuits through 400/480/690 V power systems. The auxiliary contact ratings vary by voltage: 1 A at 24 V, 2 A at 110/120/125 V, 0.5 A at 230 V, and no rating required at 240/400/500/690 V — meaning the auxiliary is not intended for switching those higher voltages. Maximum switching frequency is 15 operations per hour in AC-3 and AC-3e duty, which governs motor start frequency.

Frequently asked questions

Where can I buy 3RV1011-0CA15?

This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.

What is the breaking capacity of 3RV1011-0CA15?

100 kA at 400 V, 500 V, and 690 V — rated for high-fault industrial panels without cascading upstream breakers.

What is the trip class of 3RV1011-0CA15?

Trip Class 10, meaning it trips within 10 seconds at 7.2× the thermal setting — standard for standard-duty induction motor starts.

Will 3RV1011-0CA15 drop into a panel specified around 3RV1011-0GA10 without rewiring?

Both are SIRIUS circuit breakers in the same 45 mm wide footprint with screw and snap-on DIN rail mounting, so the mechanical fit and busbar spacing are identical. However, verify the thermal setting range and auxiliary contact configuration against the 0GA10 variant — the 0CA15 may have a different trip current rating.

MPN
3RV1011-0CA15
