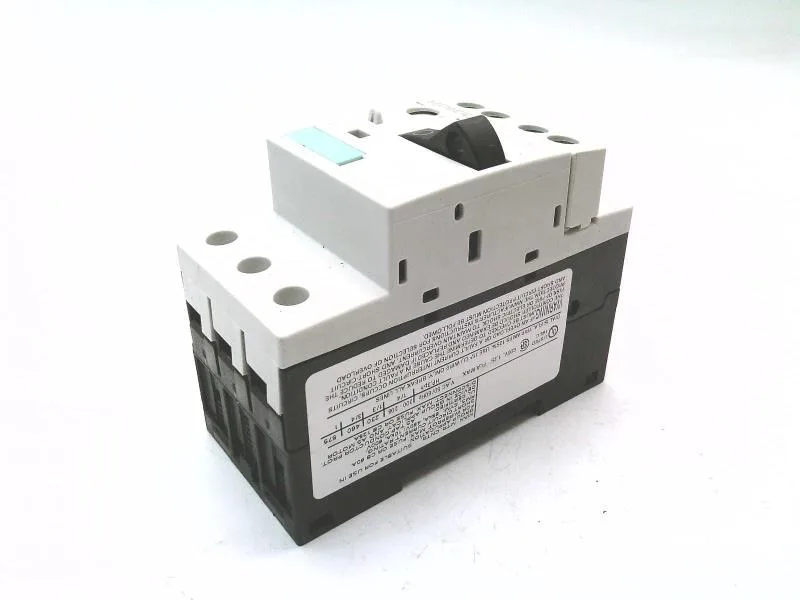

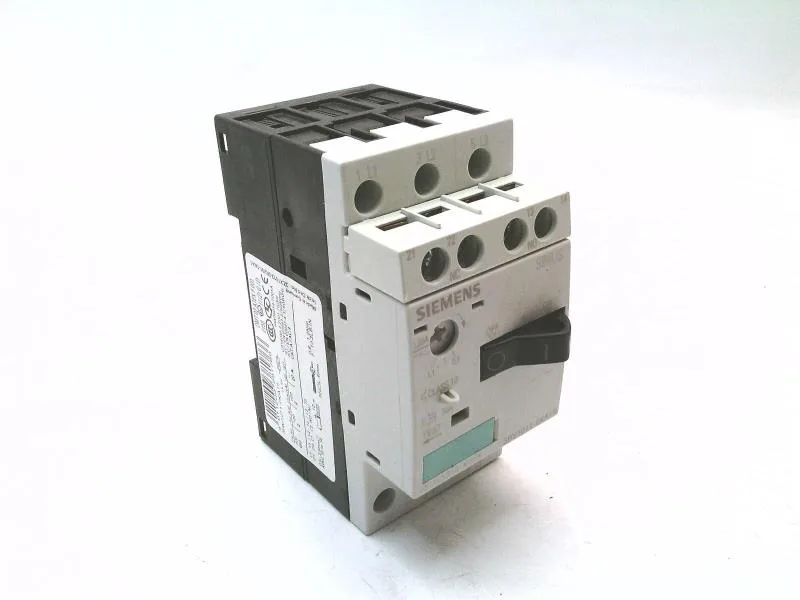

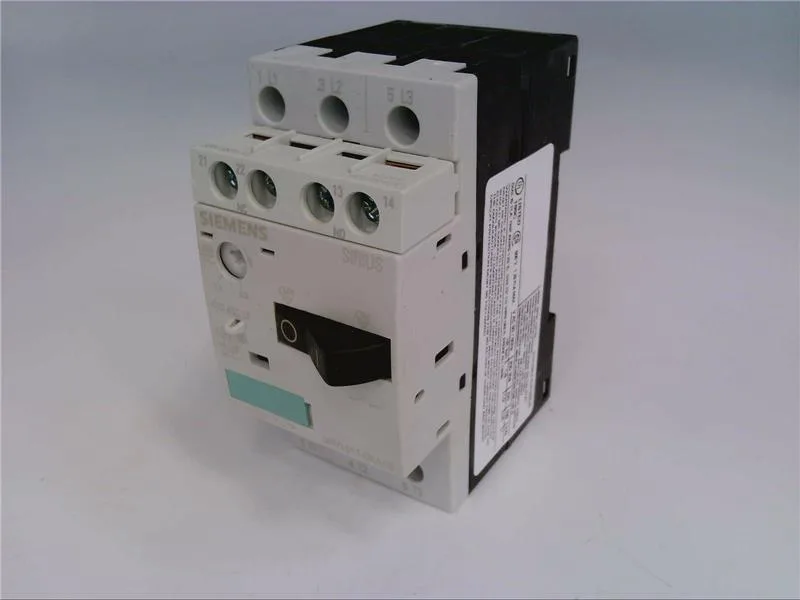

Siemens 3RV1011-0KA15 — Motor Protection Circuit Breakers (MPCB)

Siemens 3RV1011-0KA15 SIRIUS Circuit Breaker, 100 kA at 400

MPN3RV1011-0KA15
Active

Siemens SIRIUS circuit breaker, 3RV1011-0KA15, Class 10 trip, 100 kA breaking capacity at 400 V, screw and snap-on mounting on 35 mm DIN rail.

$45.72Ref. price · indicative, final on quote
Siemens 3RV1011-0KA15 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RV1011-0KA15 — Identification
ParameterValue
SeriesSIRIUS
Product designationCircuit breaker
Frame sizeS00
3RV1011-0KA15 — Electrical
ParameterValue
Rated operational current (Ie)1.25 A
Rated voltage20 ... 690 V
Rated voltage, AC-3 (max.)690 V
Rated frequency50 ... 60 Hz
Rated insulation voltage (Ui), pollution degree 3690 V
Rated impulse withstand voltage (Uimp)6 kV
Number of poles3
Power loss (AC, hot)5.5 W
Power loss, per pole (AC, hot)1.8 W
3RV1011-0KA15 — Protection & Tripping
ParameterValue
Overload release setting range0.9 ... 1.25 A
Instantaneous short-circuit trip current16 A
Trip classCLASS 10
Breaking capacity at 240 V (AC)100 kA
Breaking capacity at 400 V (AC)100 kA
Breaking capacity at 500 V (AC)100 kA
Breaking capacity at 690 V (AC)2 kA
Breaking capacity at 240 V100 kA
Breaking capacity at 690 V2 kA
Short-circuit trip typemagnetic
Overload release typethermal
Short-circuit protectionYes
Phase-failure detectionYes
Ground-fault detectionNo
Auxiliary switch extendableYes
3RV1011-0KA15 — Endurance & Switching
ParameterValue
Endurance, main contacts (typ.)100 000
Endurance, auxiliary contacts (typ.)100 000
Switching frequency, AC-3 (max.)15 1/h
Auxiliary CO (changeover) contacts0
3RV1011-0KA15 — Connections
ParameterValue
Main-circuit terminal typescrew-type terminals
Main-circuit connector arrangementTop and bottom
Conductor cross-section, solid / stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, finely stranded with ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
3RV1011-0KA15 — Mechanical
ParameterValue
Height90 mm
Width45 mm
Depth75 mm
Mounting methodscrew and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715
Mounting positionany
3RV1011-0KA15 — Environmental
ParameterValue
Operating temperature-20 ... +60 °C
Storage temperature-50 ... +80 °C
Transport temperature-50 ... +80 °C
Relative humidity (operation)10 ... 95 %
Max. installation altitude2 000 m
3RV1011-0KA15 — Specifications
ParameterValue
Design Of The ProductFor motor protection

Product details

The 45 mm width and 75 mm depth leave room for adjacent contactors or overload relays on the same rail — a common layout in motor starter combos.

Trip class and switching duty

Maximum switching rate is 15 operations per hour under AC-3 duty, which covers the typical starting cycle of a motor starter.

Fuse backup coordination

For installations where the prospective fault current exceeds the breaker's rated breaking capacity, the evidence lists required upstream fuse sizes: gL/gG 20 A at 400 V, 16 A at 500 V, and 16 A at 690 V. This lets the panel designer coordinate the breaker with a smaller upstream fuse rather than oversizing the entire branch.

Frequently asked questions

What is the breaking capacity of 3RV1011-0KA15?

The breaking capacity is 100 kA at 400 V, 100 kA at 500 V, and 2 kA at 690 V.

Where can I buy 3RV1011-0KA15?

This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.

Will 3RV1011-0KA15 drop into a panel specified around 3RV1011-0GA10?

Both mount on 35 mm DIN rail per DIN EN 60715, so the mechanical fit is the same. Verify the thermal setting range and auxiliary contact configuration against your BOM — the 0KA15 carries a Class 10 trip, which may differ from the 0GA10's characteristic.
