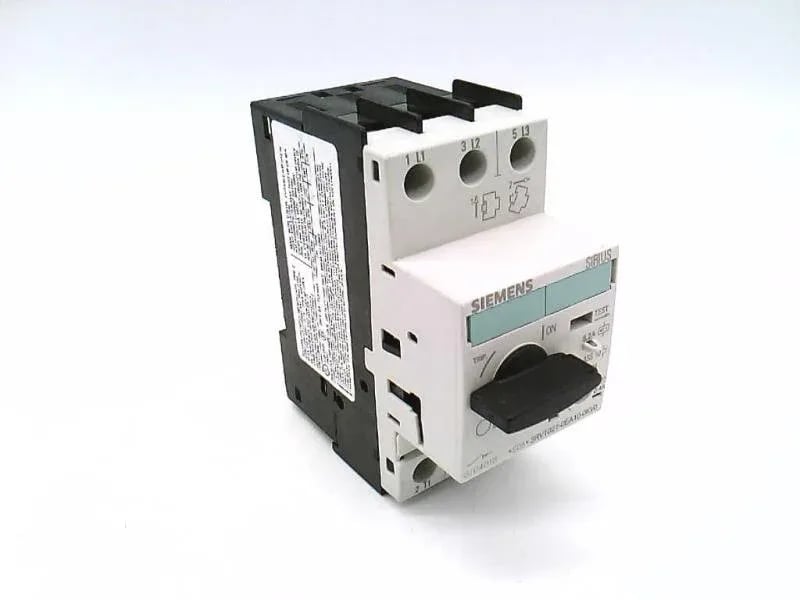

Siemens 3RV1021-0EA10-0FJ0-ZX95 — Motor Protection Circuit Breakers (MPCB)

Siemens 3RV1021-0EA10-0FJ0-ZX95 SIRIUS Motor Protection Circ

MPN3RV1021-0EA10-0FJ0-ZX95

Siemens SIRIUS motor protection circuit breaker, 3RV1021-0EA10-0FJ0-ZX95, 0.4 A rated continuous current, CLASS 10 trip class, 100 kA breaking capacity at 400 V AC, screw-type terminals, DIN rail mount.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RV1021-0EA10-0FJ0-ZX95 — Identification
ParameterValue
SeriesSIRIUS
Product designationcircuit breaker
3RV1021-0EA10-0FJ0-ZX95 — Electrical
ParameterValue
Rated voltage690 V
Rated voltage, AC-3 (max.)690 V
Rated impulse withstand voltage (Uimp)6 000 V
Number of poles3
Power loss (AC, hot)5.5 W
Power loss, per pole (AC, hot)1.8 W
3RV1021-0EA10-0FJ0-ZX95 — Protection & Tripping
ParameterValue
Trip classCLASS 10
Breaking capacity at 240 V (AC)100 kA
Breaking capacity at 400 V (AC)100 kA
Breaking capacity at 500 V (AC)100 kA
Breaking capacity at 690 V (AC)100 kA
Phase-failure detectionYes
Ground-fault detectionNo
3RV1021-0EA10-0FJ0-ZX95 — Endurance & Switching
ParameterValue
Endurance, main contacts (typ.)100 000
Switching frequency, AC-3 (max.)15 1/h
3RV1021-0EA10-0FJ0-ZX95 — Connections
ParameterValue
Main-circuit terminal typescrew-type terminals
Main-circuit connector arrangementfront side
Conductor cross-section, finely stranded with ferrule2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²)
3RV1021-0EA10-0FJ0-ZX95 — Mechanical
ParameterValue
Height97 mm
Width45 mm
Depth96 mm
Mounting positionany
3RV1021-0EA10-0FJ0-ZX95 — Environmental
ParameterValue
Operating temperature-20 ... +60 °C
Storage temperature-50 ... +80 °C
Transport temperature-50 ... +80 °C
3RV1021-0EA10-0FJ0-ZX95 — Specifications
ParameterValue
Design Of The Productfor motor protection

Product details

Motor protection circuit breaker for 0.4 A loads

Phase failure detection and trip class

Built-in phase failure detection protects the motor against single-phasing — a leading cause of winding burnout in delta-connected loads. The CLASS 10 trip class is the standard for general-purpose squirrel-cage motors; it allows the inrush transient to pass while still clearing a sustained overload before the motor insulation reaches its thermal limit. The 0.09 kW power rating at 400 V confirms the motor size this breaker is designed to protect.

The 45 mm width occupies a single modular unit, leaving room for a contactor and overload relay in the same row. Front face carries IP20 protection — safe for finger-probe access inside an enclosure.

Frequently asked questions

What is the breaking capacity of this circuit breaker?

The 3RV1021-0EA10-0FJ0-ZX95 has a breaking capacity of 100 kA at 400 V AC, 100 kA at 500 V AC, and 100 kA at 690 V AC.

Where can I buy 3RV1021-0EA10-0FJ0-ZX95?

This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock or lead-time figures are published here.

Will 3RV1021-0EA10-0FJ0-ZX95 drop into a panel specified around 3RV1011-0GA10?

Both are SIRIUS motor protection circuit breakers with the same 45 mm width and DIN-rail mounting, so the footprint is identical. The key difference is the rated current: this unit is 0.4 A, while the 3RV1011-0GA10 carries a different current rating. Verify the motor FLA before substituting — the terminals and trip class are compatible.

MPN
3RV1021-0EA10-0FJ0-ZX95
