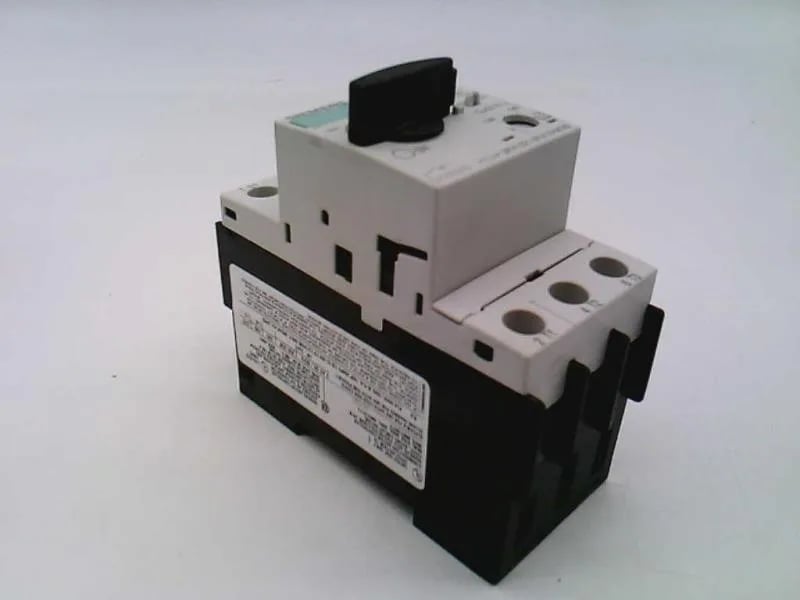

Siemens 3RV1021-0FA10-0FJ0-ZX95 — Motor Protection Circuit Breakers (MPCB)

Siemens 3RV1021-0FA10-0FJ0-ZX95 SIRIUS Motor Protection Circ

MPN3RV1021-0FA10-0FJ0-ZX95

Siemens SIRIUS 3RV1021-0FA10-0FJ0-ZX95 motor protection circuit breaker, 0.5 A continuous current, CLASS 10 trip class, 100 kA breaking capacity at 400 V AC, screw-type terminals, DIN rail mount.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RV1021-0FA10-0FJ0-ZX95 — Identification
ParameterValue
SeriesSIRIUS
Product designationcircuit breaker
3RV1021-0FA10-0FJ0-ZX95 — Electrical
ParameterValue
Rated voltage690 V
Rated voltage, AC-3 (max.)690 V
Rated impulse withstand voltage (Uimp)6 000 V
Number of poles3
Power loss (AC, hot)5.5 W
Power loss, per pole (AC, hot)1.8 W
3RV1021-0FA10-0FJ0-ZX95 — Protection & Tripping
ParameterValue
Trip classCLASS 10
Breaking capacity at 240 V (AC)100 kA
Breaking capacity at 400 V (AC)100 kA
Breaking capacity at 500 V (AC)100 kA
Breaking capacity at 690 V (AC)100 kA
Phase-failure detectionYes
Ground-fault detectionNo
3RV1021-0FA10-0FJ0-ZX95 — Endurance & Switching
ParameterValue
Endurance, main contacts (typ.)100 000
Switching frequency, AC-3 (max.)15 1/h
3RV1021-0FA10-0FJ0-ZX95 — Connections
ParameterValue
Main-circuit terminal typescrew-type terminals
Main-circuit connector arrangementfront side
Conductor cross-section, finely stranded with ferrule2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²)
3RV1021-0FA10-0FJ0-ZX95 — Mechanical
ParameterValue
Height97 mm
Width45 mm
Depth96 mm
Mounting positionany
3RV1021-0FA10-0FJ0-ZX95 — Environmental
ParameterValue
Operating temperature-20 ... +60 °C
Storage temperature-50 ... +80 °C
Transport temperature-50 ... +80 °C
3RV1021-0FA10-0FJ0-ZX95 — Specifications
ParameterValue
Design Of The Productfor motor protection

Product details

That's a standard feature on SIRIUS breakers, not an add-on option.

Short-circuit breaking capacity is 100 kA at 400 V AC — the same rating holds at 240 V, 500 V, and 690 V AC. That's a full-range 100 kA rating, not a derated curve.

The 45 mm width takes one standard module slot. Depth is 96 mm, height 97 mm. Terminals are screw-type for the main circuit, accepting 2x (1 to 2.5 mm²) solid or stranded, or 2x (2.5 to 6 mm²). AWG equivalents are 2x (14 to 10). No auxiliary contacts are included — if you need a remote trip signal, you'll add the separate auxiliary switch block (confirms it's compatible).

Shock resistance is 25 g for 11 ms. Mounting position is any.

Frequently asked questions

Will 3RV1021-0FA10-0FJ0-ZX95 drop into a panel specified around 3RV1011-0GA10 without rewiring?

Both are SIRIUS motor protection breakers with the same 45 mm width and DIN rail mounting, so the footprint is the same. However, the 3RV1021 series has a different terminal layout and internal construction than the 3RV1011 series — verify the terminal positions and wiring access against your panel layout before assuming a drop-in swap. The screw-type terminals accept the same wire ranges (2x 1 to 2.5 mm² solid or stranded, or 2x 2.5 to 6 mm²), so rewiring the same conductors is possible if the terminal positions align.
