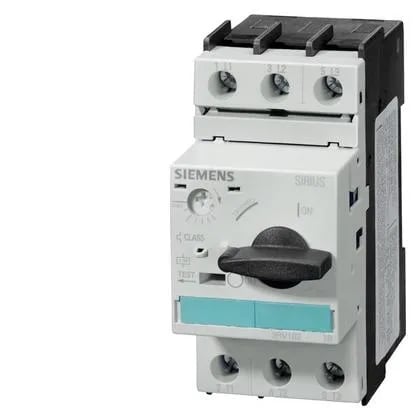

Siemens 3RV1021-1HA10-ZX95 — Motor Protection Circuit Breakers (MPCB)

Siemens 3RV1021-1HA10-ZX95 SIRIUS Motor Protection Circuit B

MPN3RV1021-1HA10-ZX95

Siemens SIRIUS 3RV1021-1HA10-ZX95 motor protection circuit breaker, 3-pole, 8 A continuous, Trip Class 10, 100 kA breaking capacity at 400 V AC, screw terminals, DIN rail mount.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RV1021-1HA10-ZX95 — Identification
ParameterValue
SeriesSIRIUS
Product designationcircuit breaker
3RV1021-1HA10-ZX95 — Electrical
ParameterValue
Rated voltage690 V
Rated voltage, AC-3 (max.)690 V
Rated impulse withstand voltage (Uimp)6 000 V
Number of poles3
Power loss (AC, hot)9.25 W
Power loss, per pole (AC, hot)3.1 W
3RV1021-1HA10-ZX95 — Protection & Tripping
ParameterValue
Overload release setting range5.5 ... 8 A
Trip classCLASS 10
Breaking capacity at 240 V (AC)100 kA
Breaking capacity at 400 V (AC)100 kA
Breaking capacity at 500 V (AC)42 kA
Breaking capacity at 690 V (AC)6 kA
Phase-failure detectionYes
Ground-fault detectionNo
Auxiliary switch extendableYes
3RV1021-1HA10-ZX95 — Endurance & Switching
ParameterValue
Auxiliary CO (changeover) contacts0
3RV1021-1HA10-ZX95 — Connections
ParameterValue
Main-circuit terminal typescrew-type terminals
Main-circuit connector arrangementfront side
Conductor cross-section, finely stranded with ferrule2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²)
Conductor range, AWG (main contacts)2x (14 ... 10)
3RV1021-1HA10-ZX95 — Mechanical
ParameterValue
Height97 mm
Width45 mm
Depth96 mm
Mounting methodscrew and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
Mounting positionany
3RV1021-1HA10-ZX95 — Environmental
ParameterValue
Operating temperature-20 ... +60 °C
Storage temperature-50 ... +80 °C
Transport temperature-50 ... +80 °C
Max. installation altitude2 000 m
3RV1021-1HA10-ZX95 — Specifications
ParameterValue
Design Of The Productfor motor protection

Product details

The Siemens 3RV1021-1HA10-ZX95 is a SIRIUS motor protection circuit breaker rated for 8 A continuous current with a Trip Class 10 thermal-magnetic trip curve, sized for a 3 kW motor at 400 V AC.

Compared to the 3RV1011-1HA10, the 3RV1021-1HA10-ZX95 shares the same 45 mm width and 35 mm DIN-rail snap-on footprint, so it drops into a panel specified around the older sibling without rewiring. The key difference is the 3RV1021's higher breaking capacity — 100 kA at 400 V versus the 3RV1011's lower rating — making it the better fit for a panel with a high available fault current.

The 45 mm width and 96 mm depth fit a standard 45 mm-wide DIN-rail slot — no extra side clearance needed (0 mm backwards, 0 mm at the side). Screw-type terminals on both main and auxiliary circuits accept solid or stranded wire: 2x (1…2.5 mm²) and 2x (2.5…6 mm²), or AWG 14–10.

Frequently asked questions

Where can I buy 3RV1021-1HA10-ZX95 and how do I get a price?

The 3RV1021-1HA10-ZX95 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm price and lead time.

Will 3RV1021-1HA10-ZX95 drop into a panel that was specified around 3RV1011-1HA10 without rewiring?

Yes, the 3RV1021-1HA10-ZX95 shares the same 45 mm width and 35 mm DIN-rail snap-on footprint as the 3RV1011-1HA10, so it drops into the same panel slot without rewiring. The terminal wire ranges are identical.

What compliance documentation does this brand provide for 3RV1021-1HA10-ZX95 (RoHS, REACH, UL, IEC)?

The part carries a substance prohibition date of 01.05.2012, confirming RoHS compliance from that date. Siemens provides declarations for RoHS, REACH, UL, and IEC via its standard documentation portal.
