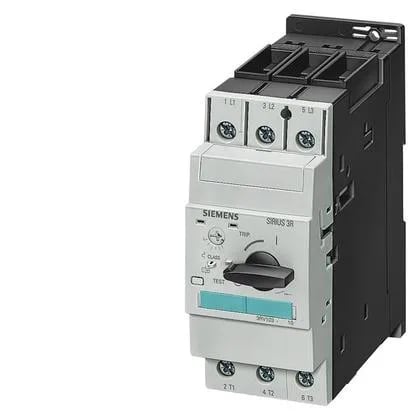

Siemens 3RV1031-4FA10-0BA0 — Motor Protection Circuit Breakers (MPCB)

Siemens 3RV1031-4FA10-0BA0 SIRIUS Motor Protection Circuit B

MPN3RV1031-4FA10-0BA0

Siemens SIRIUS motor protection circuit breaker, 3RV1031-4FA10-0BA0, 40 A continuous, CLASS 10 trip, 50 kA breaking capacity at 400 V AC, screw terminals, IP20 front.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RV1031-4FA10-0BA0 — Identification
ParameterValue
SeriesSIRIUS
Product designationcircuit breaker
3RV1031-4FA10-0BA0 — Electrical
ParameterValue
Rated voltage690 V
Rated voltage, AC-3 (max.)690 V
Rated impulse withstand voltage (Uimp)6 000 V
Number of poles3
Power loss (AC, hot)29 W
Power loss, per pole (AC, hot)9.7 W
3RV1031-4FA10-0BA0 — Protection & Tripping
ParameterValue
Overload release setting range28 ... 40 A
Trip classCLASS 10
Breaking capacity at 240 V (AC)100 kA
Breaking capacity at 400 V (AC)50 kA
Breaking capacity at 500 V (AC)10 kA
Breaking capacity at 690 V (AC)4 kA
Phase-failure detectionYes
Ground-fault detectionNo
Auxiliary switch extendableYes
3RV1031-4FA10-0BA0 — Endurance & Switching
ParameterValue
Auxiliary CO (changeover) contacts0
3RV1031-4FA10-0BA0 — Connections
ParameterValue
Main-circuit terminal typescrew-type terminals with box terminals
Main-circuit connector arrangementfront side
Conductor cross-section, finely stranded with ferrule2x (0.75 ... 16 mm²), 0.75 ... 25 mm²
Conductor range, AWG (main contacts)2x (18 ... 2), 1x (18 ... 2)
3RV1031-4FA10-0BA0 — Mechanical
ParameterValue
Height140 mm
Width55 mm
Depth149 mm
Mounting methodscrew and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
Mounting positionany
3RV1031-4FA10-0BA0 — Environmental
ParameterValue
Operating temperature-50 ... +60 °C
Storage temperature-50 ... +80 °C
Transport temperature-50 ... +80 °C
Max. installation altitude2 000 m
3RV1031-4FA10-0BA0 — Specifications
ParameterValue
Design Of The Productfor motor protection

Product details

The Siemens 3RV1031-4FA10-0BA0 is a SIRIUS motor protection circuit breaker rated for 40 A continuous current and 18.5 kW motor power at 400 V AC. Ground fault detection is not included, so if that is required, an external ground-fault module or relay must be added.

The 55 mm width and 140 mm height are standard for this SIRIUS frame size; depth of 149 mm leaves clearance for the screw-type box terminals on the main circuit and the auxiliary contact block on top. Zero clearance required at the back or sides, so adjacent devices can butt directly against it — no derating for side-by-side packing in a crowded panel. The auxiliary and control circuit also uses screw terminals. Terminal capacity is generous for the 40 A rating — no need to pigtail down to a smaller wire.

Frequently asked questions

Where can I buy 3RV1031-4FA10-0BA0?

This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.

What is the breaking capacity at 400 V?

50 kA at 400 V AC. At 240 V it is 100 kA, at 500 V it is 10 kA, and at 690 V it is 4 kA.

Does it include phase failure protection?

Yes, phase failure detection is built in. Ground fault detection is not included.
