Siemens 3RV1041-4FA10 — Motor Protection Circuit Breakers (MPCB)

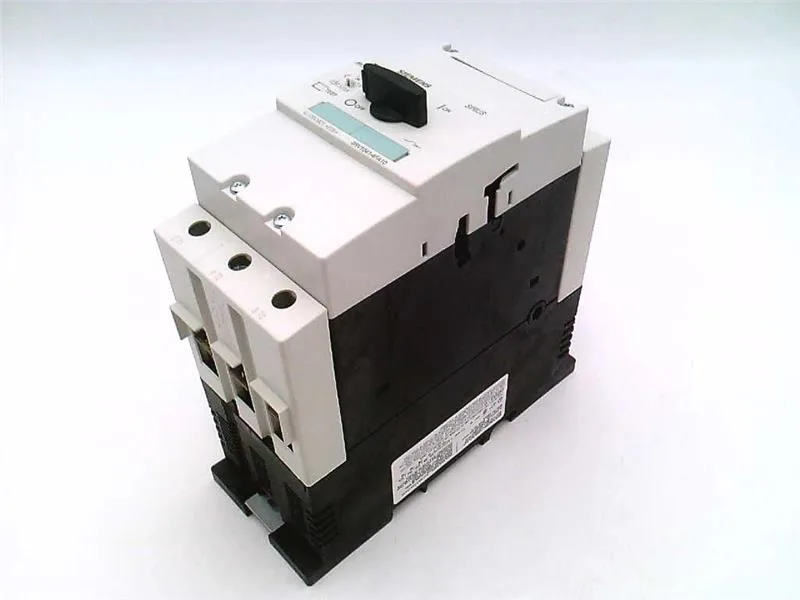

Siemens 3RV1041-4FA10 SIRIUS Motor Circuit Breaker, 40 A, CL

MPN3RV1041-4FA10

Siemens SIRIUS motor-protective circuit breaker, 3RV1041-4FA10, 40 A continuous, CLASS 10 trip, 18.5 kW at 400 V, 50 kA breaking capacity, screw-type terminals, snap-on 35 mm DIN rail.

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

3RV1041-4FA10 — Identification
ParameterValue
SeriesSIRIUS
Product designationcircuit breaker
3RV1041-4FA10 — Electrical
ParameterValue
Rated voltage690 V
Rated voltage, AC-3 (max.)690 V
Rated impulse withstand voltage (Uimp)6 000 V
Number of poles3
Power loss (AC, hot)23 W
Power loss, per pole (AC, hot)7.7 W
3RV1041-4FA10 — Protection & Tripping
ParameterValue
Overload release setting range28 ... 40 A
Trip classCLASS 10
Breaking capacity at 240 V (AC)100 kA
Breaking capacity at 400 V (AC)50 kA
Breaking capacity at 500 V (AC)12 kA
Breaking capacity at 690 V (AC)6 kA
Phase-failure detectionYes
Ground-fault detectionNo
Auxiliary switch extendableYes
3RV1041-4FA10 — Endurance & Switching
ParameterValue
Auxiliary CO (changeover) contacts0
3RV1041-4FA10 — Connections
ParameterValue
Main-circuit terminal typescrew-type terminals with box terminals
Main-circuit connector arrangementfront side
Conductor cross-section, finely stranded with ferrule2x (2.5 ... 35 mm²), 2.5 ... 50 mm²
3RV1041-4FA10 — Mechanical
ParameterValue
Height165 mm
Width70 mm
Depth174 mm
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022
Mounting positionany
3RV1041-4FA10 — Environmental
ParameterValue
Operating temperature-20 ... +60 °C
Storage temperature-50 ... +80 °C
Transport temperature-50 ... +80 °C
Max. installation altitude2 000 m
3RV1041-4FA10 — Specifications
ParameterValue
Design Of The Productfor motor protection

Product details

SIRIUS 3RV1041-4FA10 — Motor-Protective Circuit Breaker, 40 A, CLASS 10

The Siemens 3RV1041-4FA10 is a SIRIUS motor-protective circuit breaker rated for 40 A continuous current with a CLASS 10 trip characteristic, sized for motor loads up to 18.5 kW at 400 V AC.

At 400 V AC the unit interrupts 50 kA; at 240 V AC it handles 100 kA, at 500 V AC 12 kA, and at 690 V AC 6 kA. That 50 kA at 400 V gives solid headroom for most industrial panel SCCR requirements — the breaker clears a fault before upstream devices need to act, which simplifies selectivity studies.

The main circuit terminals accept solid conductors 2x (2.5…16 mm²) and stranded 2x (10…50 mm²) or 1x (10…70 mm²). Auxiliary and control circuits use separate screw terminals. Finger-safe touch protection (IP20 on the front) means it can sit near the panel door without an extra cover.

Protection Functions and Environment

Built-in phase failure detection trips the breaker if one phase drops out — critical for preventing single-phasing damage on a motor. No ground-fault detection onboard, so that function stays with the upstream RCD or drive. Shock rated at 25g / 11 ms. Power dissipation at rated load is 23 W (7.7 W per pole).

Frequently asked questions

Where can I buy 3RV1041-4FA10?

Sourced and quoted to order against an RFQ through independent distribution; availability and current pricing confirmed at quote time.

What is the breaking capacity of 3RV1041-4FA10 at 400 V?

50 kA at 400 V AC, with 100 kA at 240 V, 12 kA at 500 V, and 6 kA at 690 V.

What compliance documentation does 3RV1041-4FA10 have?

The substance prohibition date of 07/01/2006 aligns with RoHS compliance; the part carries IP20 front protection and is designed per IEC/EN standards for motor protection.

Will 3RV1041-4FA10 drop into a panel specified for 3RV6021-4DA10?

Both are 3-pole SIRIUS motor-protective breakers on 35 mm DIN rail, but the 3RV6021-4DA10 is a different frame size with different terminal layouts and breaking capacities — verify terminal positions and panel cutout dimensions before substitution.
