Siemens 3RV2011-0EA10 — Motor Protection Circuit Breakers (MPCB)

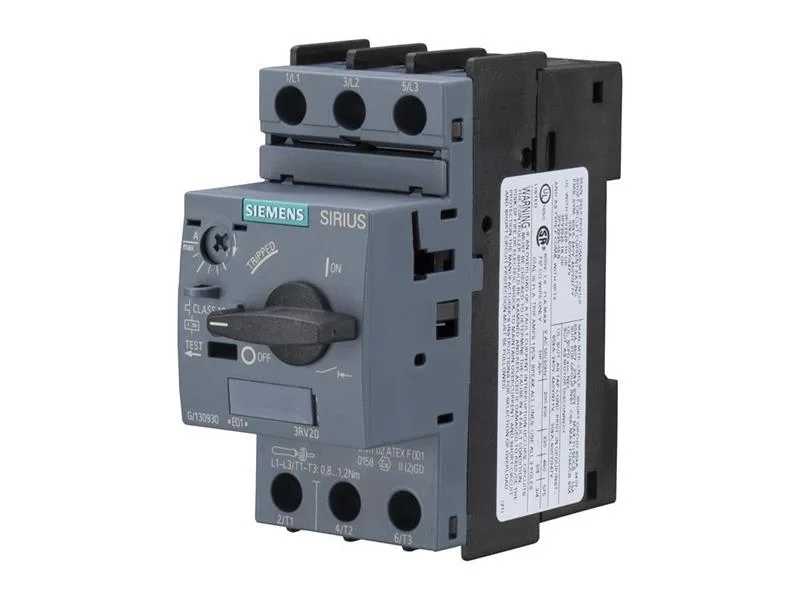

Siemens 3RV2011-0EA10 SIRIUS Motor Protection Circuit Breake

MPN3RV2011-0EA10
Active

Siemens SIRIUS motor protection circuit breaker, size S00, Trip Class 10, 100 kA breaking capacity at 400 V AC, screw-type terminals, 45 mm wide, for 35 mm DIN rail.

$27.94Ref. price · indicative, final on quote
Siemens 3RV2011-0EA10 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RV2011-0EA10 — Identification
ParameterValue
SeriesSIRIUS
Product designationCircuit breaker
Frame sizeS00
3RV2011-0EA10 — Electrical
ParameterValue
Rated operational current (Ie)0.4 A
Rated voltage20 ... 690 V
Rated voltage, AC-3 (max.)690 V
Rated frequency50 ... 60 Hz
Rated insulation voltage (Ui), pollution degree 3690 V
Rated impulse withstand voltage (Uimp)6 kV
Number of poles3
Power loss (AC, hot)5.5 W
Power loss, per pole (AC, hot)1.8 W
3RV2011-0EA10 — Protection & Tripping
ParameterValue
Overload release setting range0.28 ... 0.4 A
Instantaneous short-circuit trip current5.2 A
Trip classCLASS 10
Breaking capacity at 240 V (AC)100 kA
Breaking capacity at 400 V (AC)100 kA
Breaking capacity at 500 V (AC)100 kA
Breaking capacity at 690 V (AC)100 kA
Breaking capacity at 240 V100 kA
Breaking capacity at 690 V100 kA
Short-circuit trip typemagnetic
Overload release typethermal
Short-circuit protectionYes
Phase-failure detectionYes
Ground-fault detectionNo
Auxiliary switch extendableYes
3RV2011-0EA10 — Endurance & Switching
ParameterValue
Endurance, main contacts (typ.)100 000
Endurance, auxiliary contacts (typ.)100 000
Switching frequency, AC-3 (max.)15 1/h
Auxiliary CO (changeover) contacts0
3RV2011-0EA10 — Connections
ParameterValue
Main-circuit terminal typescrew-type terminals
Main-circuit connector arrangementTop and bottom
Conductor cross-section, solid / stranded2x (0,75 ... 2,5 mm²), 2x 4 mm²
Conductor cross-section, finely stranded with ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor range, AWG (main contacts)2x (18 ... 14), 2x 12
3RV2011-0EA10 — Mechanical
ParameterValue
Height97 mm
Width45 mm
Depth97 mm
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting positionany
3RV2011-0EA10 — Environmental
ParameterValue
Operating temperature-20 ... +60 °C
Storage temperature-50 ... +80 °C
Transport temperature-50 ... +80 °C
Relative humidity (operation)10 ... 95 %
Max. installation altitude2 000 m
3RV2011-0EA10 — Specifications
ParameterValue
Design Of The ProductFor motor protection

Product details

It carries a Trip Class 10, meaning it trips within 10 seconds at 7.2× the thermal setting current — fast enough to protect standard induction motors during a locked-rotor event. The 100 kA breaking capacity at 400 V AC (and up to 690 V AC) means it can safely interrupt high fault currents without upstream fuses in most panel designs, simplifying coordination.

The 45 mm width and 97 mm depth fit standard S00 footprint — drops into existing panels without re-drilling. Requires 50 mm clearance above and below and 30 mm at the sides for heat dissipation and wiring access. Any mounting position allowed.

Electrical ratings and protection

Rated insulation voltage 20 to 690 V. Main circuit uses screw-type terminals, accepting 2× 0.75–2.5 mm² or 2× 4 mm² solid/stranded. Maximum switching frequency at AC-3 duty is 15 cycles per hour. Operating temperature range -20 to +60 °C; storage/transport -50 to +80 °C.

Frequently asked questions

How do I get pricing and availability for 3RV2011-0EA10?

Submit an RFQ through this listing. The part is sourced to order; current pricing and lead time are confirmed at quote time.

What is the closest functional second-source for 3RV2011-0EA10?

The 3RV2011-0AA10 is a close functional peer — same size S00, same Trip Class 10, same 100 kA breaking capacity, same DIN rail footprint. The -0EA10 differs in its specific thermal setting range (not listed in evidence), so verify the overload setting matches your motor FLA before substituting.

Will 3RV2011-0EA10 drop into a panel specified for 3RV2011-0AA10?

Yes — both are size S00, same 45 mm width, same DIN rail mounting, same screw terminal pattern. No rewiring or panel modification needed for the swap.

What compliance documentation does Siemens provide for 3RV2011-0EA10?

Siemens typically provides RoHS, REACH, and CE declarations for SIRIUS circuit breakers. UL and IEC certifications are standard for this series. Specific document numbers are available on request with the RFQ.
