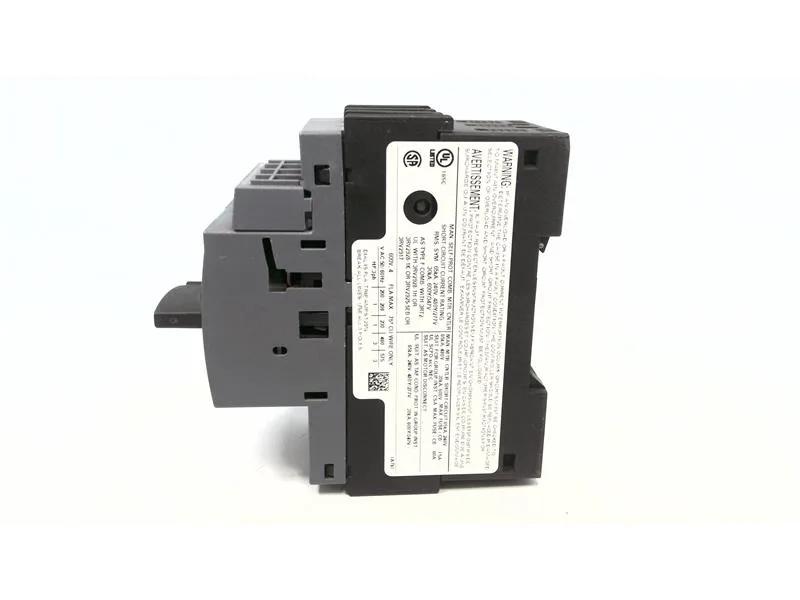

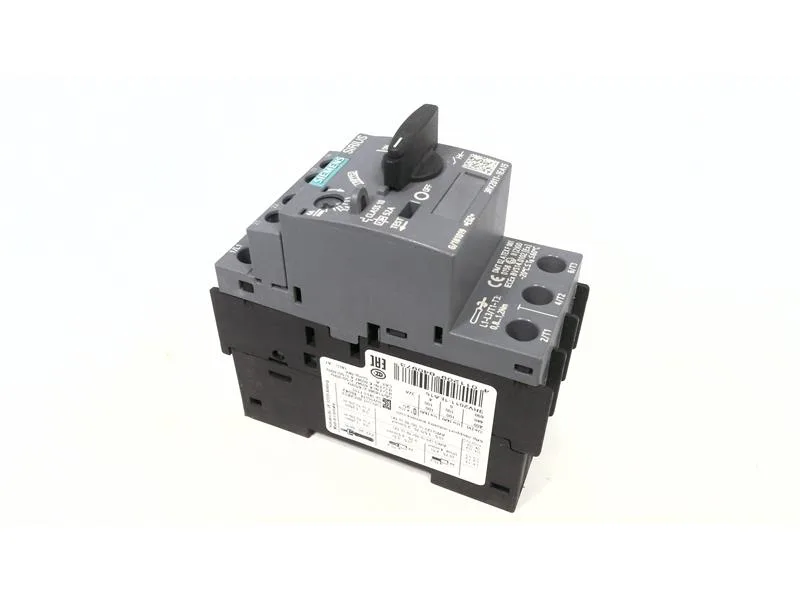

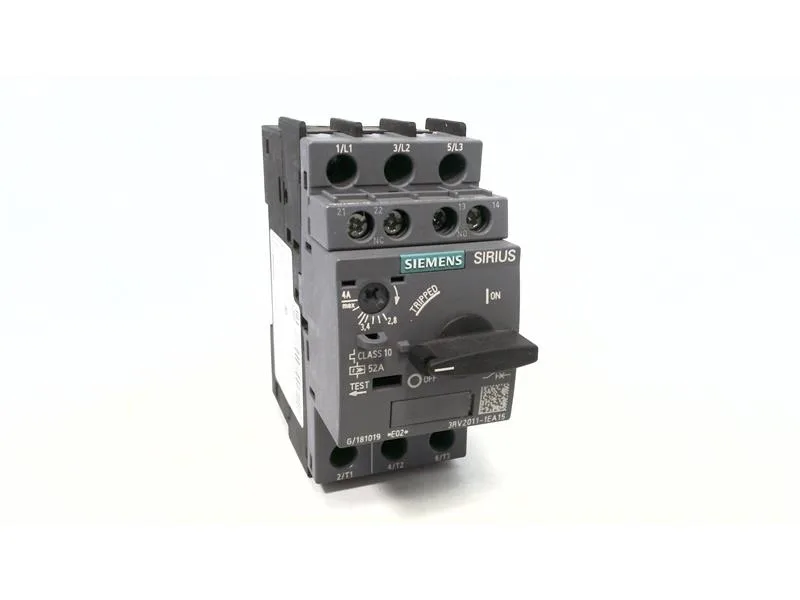

Siemens 3RV2011-0EA15 — Motor Protection Circuit Breakers (MPCB)

Siemens 3RV2011-0EA15 SIRIUS Motor Protection CB, Class 10,

MPN3RV2011-0EA15
Active

Siemens SIRIUS 3RV2011-0EA15 motor protection circuit breaker, Class 10 trip, 100 kA breaking capacity at 400 V AC, 45 mm wide, screw and snap-on 35 mm DIN rail mount.

$35.56Ref. price · indicative, final on quote
Siemens 3RV2011-0EA15 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RV2011-0EA15 — Identification
ParameterValue
SeriesSIRIUS
Product designationCircuit breaker
Frame sizeS00
3RV2011-0EA15 — Electrical
ParameterValue
Rated operational current (Ie)0.4 A
Rated voltage20 ... 690 V
Rated voltage, AC-3 (max.)690 V
Rated frequency50 ... 60 Hz
Rated insulation voltage (Ui), pollution degree 3690 V
Rated impulse withstand voltage (Uimp)6 kV
Number of poles3
Power loss (AC, hot)5.5 W
Power loss, per pole (AC, hot)1.8 W
3RV2011-0EA15 — Protection & Tripping
ParameterValue
Overload release setting range0.28 ... 0.4 A
Instantaneous short-circuit trip current5.2 A
Trip classCLASS 10
Breaking capacity at 240 V (AC)100 kA
Breaking capacity at 400 V (AC)100 kA
Breaking capacity at 500 V (AC)100 kA
Breaking capacity at 690 V (AC)100 kA
Breaking capacity at 240 V100 kA
Breaking capacity at 690 V100 kA
Short-circuit trip typemagnetic
Overload release typethermal
Short-circuit protectionYes
Phase-failure detectionYes
Ground-fault detectionNo
Auxiliary switch extendableYes
3RV2011-0EA15 — Endurance & Switching
ParameterValue
Endurance, main contacts (typ.)100 000
Endurance, auxiliary contacts (typ.)100 000
Switching frequency, AC-3 (max.)15 1/h
Auxiliary CO (changeover) contacts0
3RV2011-0EA15 — Connections
ParameterValue
Main-circuit terminal typescrew-type terminals
Main-circuit connector arrangementTop and bottom
Conductor cross-section, solid / stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, finely stranded with ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
3RV2011-0EA15 — Mechanical
ParameterValue
Height97 mm
Width45 mm
Depth97 mm
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting positionany
3RV2011-0EA15 — Environmental
ParameterValue
Operating temperature-20 ... +60 °C
Storage temperature-50 ... +80 °C
Transport temperature-50 ... +80 °C
Relative humidity (operation)10 ... 95 %
Max. installation altitude2 000 m
3RV2011-0EA15 — Specifications
ParameterValue
Design Of The ProductFor motor protection

Product details

Breaking capacity and fault handling

Rated breaking capacity hits 100 kA at 240 V, 400 V, 500 V, and 690 V AC — that's full-rated interruption up to the supply transformer's fault current, no upstream fuse needed in most panels. No ground-fault detection on this variant.

Depth is 97 mm, height 97 mm — a compact cube that leaves room for side-by-side grouping on the rail. Main circuit terminals are M3 screw-type, accepting 2× (0.5 to 1.5 mm²) solid or 2× (0.75 to 2.5 mm²) stranded. Mounting position is any orientation, so vertical or horizontal rail layouts both work. Clearance: 50 mm above and below, 30 mm to the side, 0 mm forward and backward — meaning you can butt units front-to-back without derating.

Frequently asked questions

Where can I buy 3RV2011-0EA15 and how do I get a price?

Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm price and lead time.

Will 3RV2011-0EA15 drop into a panel specified around 3RV2011-0AA10 without rewiring?

Both share the same 45 mm width, 97 mm depth, and screw-type M3 terminals on 35 mm DIN rail — mechanical fit is identical. The 0EA15 carries a higher breaking capacity (100 kA vs the 0AA10's lower rating) and includes phase failure detection, so it's a functional upgrade with the same footprint.
