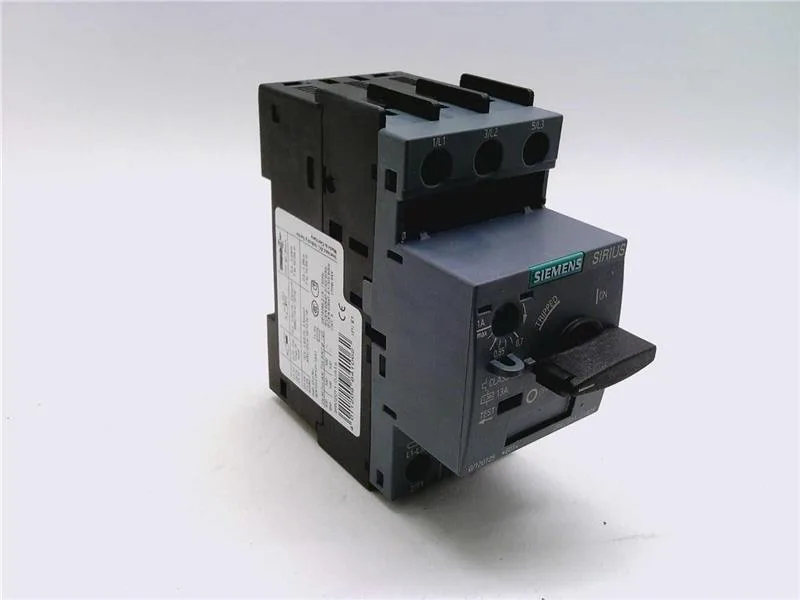

Siemens 3RV2011-0JA15 — Motor Protection Circuit Breakers (MPCB)

Siemens 3RV2011-0JA15 SIRIUS Motor Protection Circuit Breake

MPN3RV2011-0JA15
Active

Siemens SIRIUS motor-protection circuit breaker, 3RV2011-0JA15, Trip Class 10, 100 kA breaking capacity at 400 V, screw-type terminals, 45 mm width.

$36.83Ref. price · indicative, final on quote
Siemens 3RV2011-0JA15 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RV2011-0JA15 — Identification
ParameterValue
SeriesSIRIUS
Product designationCircuit breaker
Frame sizeS00
3RV2011-0JA15 — Electrical
ParameterValue
Rated operational current (Ie)1 A
Rated voltage20 ... 690 V
Rated voltage, AC-3 (max.)690 V
Rated frequency50 ... 60 Hz
Rated insulation voltage (Ui), pollution degree 3690 V
Rated impulse withstand voltage (Uimp)6 kV
Number of poles3
Power loss (AC, hot)7.25 W
Power loss, per pole (AC, hot)2.4 W
3RV2011-0JA15 — Protection & Tripping
ParameterValue
Overload release setting range0.7 ... 1 A
Instantaneous short-circuit trip current13 A
Trip classCLASS 10
Breaking capacity at 240 V (AC)100 kA
Breaking capacity at 400 V (AC)100 kA
Breaking capacity at 500 V (AC)100 kA
Breaking capacity at 690 V (AC)100 kA
Breaking capacity at 240 V100 kA
Breaking capacity at 690 V100 kA
Short-circuit trip typemagnetic
Overload release typethermal
Short-circuit protectionYes
Phase-failure detectionYes
Ground-fault detectionNo
Auxiliary switch extendableYes
3RV2011-0JA15 — Endurance & Switching
ParameterValue
Endurance, main contacts (typ.)100 000
Endurance, auxiliary contacts (typ.)100 000
Switching frequency, AC-3 (max.)15 1/h
Auxiliary CO (changeover) contacts0
3RV2011-0JA15 — Connections
ParameterValue
Main-circuit terminal typescrew-type terminals
Main-circuit connector arrangementTop and bottom
Conductor cross-section, solid / stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, finely stranded with ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor range, AWG (main contacts)2x (18 ... 14), 2x 12
3RV2011-0JA15 — Mechanical
ParameterValue
Height97 mm
Width45 mm
Depth97 mm
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting positionany
3RV2011-0JA15 — Environmental
ParameterValue
Operating temperature-20 ... +60 °C
Storage temperature-50 ... +80 °C
Transport temperature-50 ... +80 °C
Relative humidity (operation)10 ... 95 %
Max. installation altitude2 000 m
3RV2011-0JA15 — Specifications
ParameterValue
Design Of The ProductFor motor protection

Product details

The Siemens 3RV2011-0JA15 is a SIRIUS motor-protection circuit breaker designed for protecting three-phase motors against overload and short circuit. Breaking capacity reaches 100 kA at 400 V and 690 V, so it can interrupt high fault currents without upstream fuses in most panel designs.

Width is 45 mm, depth 97 mm, height 97 mm. Mounting position is any, which simplifies layout in crowded panels. Clearance requirements: 50 mm above and below, 30 mm to the side, 0 mm forward and backward — so it can be stacked tight front-to-back against a backplate or another device.

Frequently asked questions

Where can I buy 3RV2011-0JA15?

This part is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.

What is the breaking capacity of 3RV2011-0JA15?

Breaking capacity is 100 kA at 240 V, 400 V, 500 V, and 690 V, making it suitable for high-fault-current industrial panels.

Does 3RV2011-0JA15 detect phase failure?

Yes, phase failure detection is included, protecting motors from single-phasing damage.
