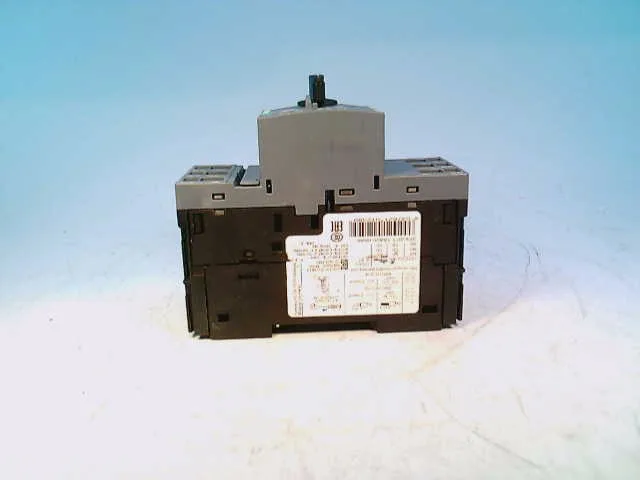

Siemens 3RV2011-1AA20-0BA0 — Motor Protection Circuit Breakers (MPCB)

Siemens 3RV2011-1AA20-0BA0 SIRIUS Motor Protection Circuit B

MPN3RV2011-1AA20-0BA0
Active

Siemens SIRIUS, motor protection circuit breaker, Size S00, 3RV2011-1AA20-0BA0, Trip Class 10, 100 kA breaking capacity at 400 V AC, spring-loaded terminals, screw and snap-on mounting onto 35 mm DIN rail.

$45.72Ref. price · indicative, final on quote
Siemens 3RV2011-1AA20-0BA0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RV2011-1AA20-0BA0 — Identification
ParameterValue
SeriesSIRIUS
Product designationCircuit breaker
Frame sizeS00
3RV2011-1AA20-0BA0 — Electrical
ParameterValue
Rated operational current (Ie)1.6 A
Rated voltage20 ... 690 V
Rated voltage, AC-3 (max.)690 V
Rated frequency50 ... 60 Hz
Rated insulation voltage (Ui), pollution degree 3690 V
Rated impulse withstand voltage (Uimp)6 kV
Number of poles3
Power loss (AC, hot)7.25 W
Power loss, per pole (AC, hot)2.4 W
3RV2011-1AA20-0BA0 — Protection & Tripping
ParameterValue
Overload release setting range1.1 ... 1.6 A
Instantaneous short-circuit trip current21 A
Trip classCLASS 10
Breaking capacity at 240 V (AC)100 kA
Breaking capacity at 400 V (AC)100 kA
Breaking capacity at 500 V (AC)100 kA
Breaking capacity at 690 V (AC)100 kA
Breaking capacity at 240 V100 kA
Breaking capacity at 690 V100 kA
Short-circuit trip typemagnetic
Overload release typethermal
Short-circuit protectionYes
Phase-failure detectionYes
Ground-fault detectionNo
Auxiliary switch extendableYes
3RV2011-1AA20-0BA0 — Endurance & Switching
ParameterValue
Endurance, main contacts (typ.)500
Endurance, auxiliary contacts (typ.)500
Switching frequency, AC-3 (max.)15 1/h
Auxiliary CO (changeover) contacts0
3RV2011-1AA20-0BA0 — Connections
ParameterValue
Main-circuit terminal typespring-loaded terminals
Main-circuit connector arrangementTop and bottom
Conductor cross-section, solid / stranded2x (0,5 ... 4 mm²)
Conductor cross-section, finely stranded with ferrule2x (0.5 ... 2.5 mm²)
3RV2011-1AA20-0BA0 — Mechanical
ParameterValue
Height106 mm
Width45 mm
Depth97 mm
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting positionany
3RV2011-1AA20-0BA0 — Environmental
ParameterValue
Operating temperature-50 ... +60 °C
Storage temperature-50 ... +80 °C
Transport temperature-50 ... +80 °C
Relative humidity (operation)10 ... 95 %
Max. installation altitude2 000 m
3RV2011-1AA20-0BA0 — Specifications
ParameterValue
Design Of The ProductFor motor protection

Product details

Motor protection circuit breaker, Size S00 — 100 kA SCCR, Trip Class 10

No ground fault detection on this variant; if you need that, you are looking at a different module in the SIRIUS family.

Mounting and wiring — DIN rail, spring terminals, any position

No screw torque to check; just strip to 8 mm and push in. The screwdriver shaft diameter is 3 mm for the auxiliary contact terminals. Dimensions: 45 mm wide, 106 mm high, 97 mm deep. Clearance requirements: 50 mm upwards, 50 mm downwards, 30 mm to the side, zero forwards or backwards. That zero forwards/backwards clearance means it can sit flush against the panel door or back wall — handy in shallow enclosures.
