Siemens 3RV2011-1EA10 — Motor Protection Circuit Breakers (MPCB)

Siemens 3RV2011-1EA10 SIRIUS Motor Protection Circuit Breake

MPN3RV2011-1EA10

Active

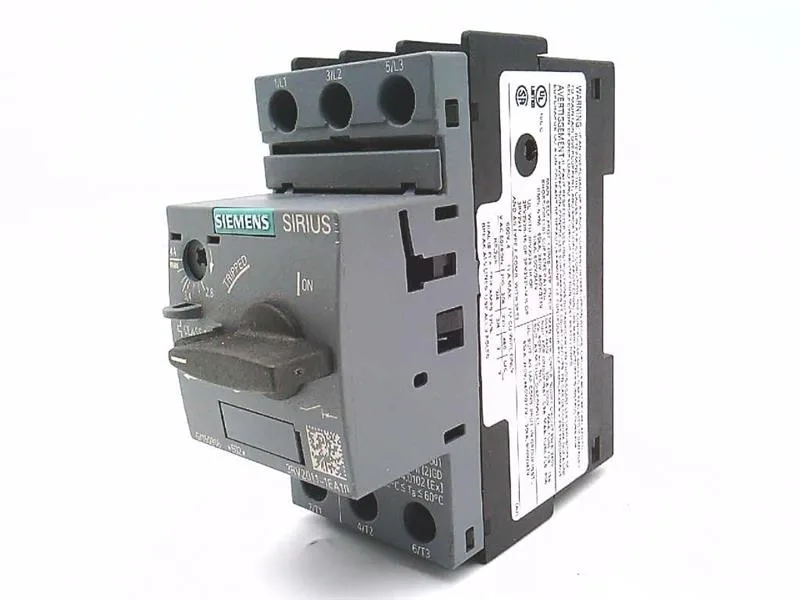

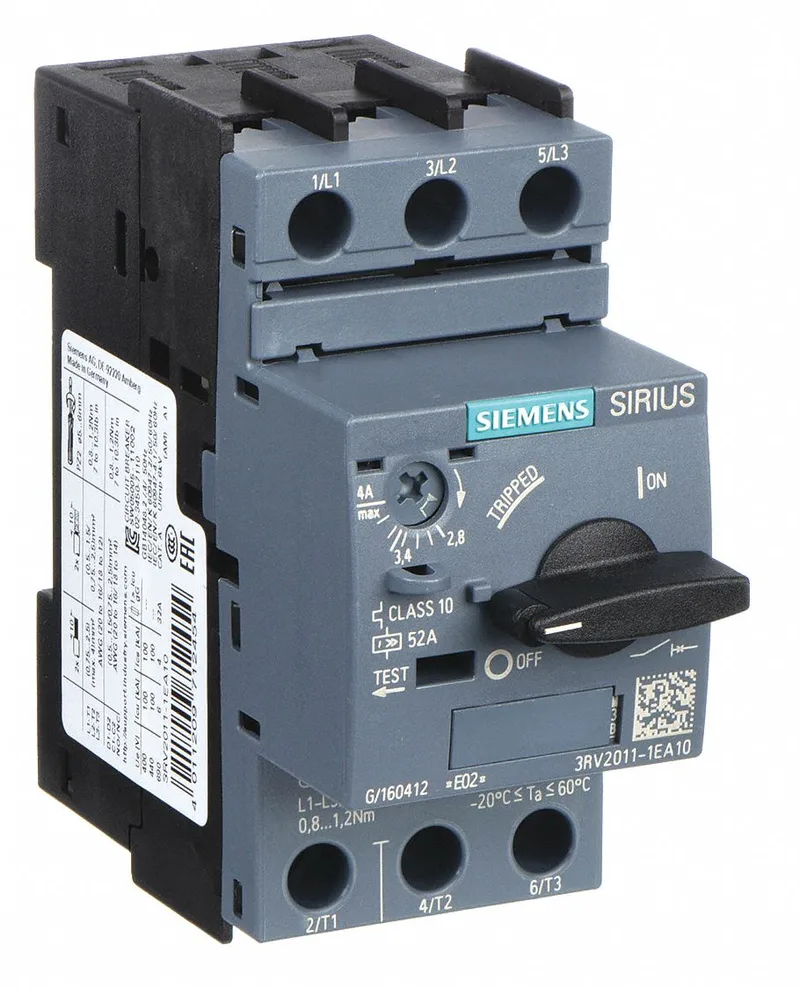

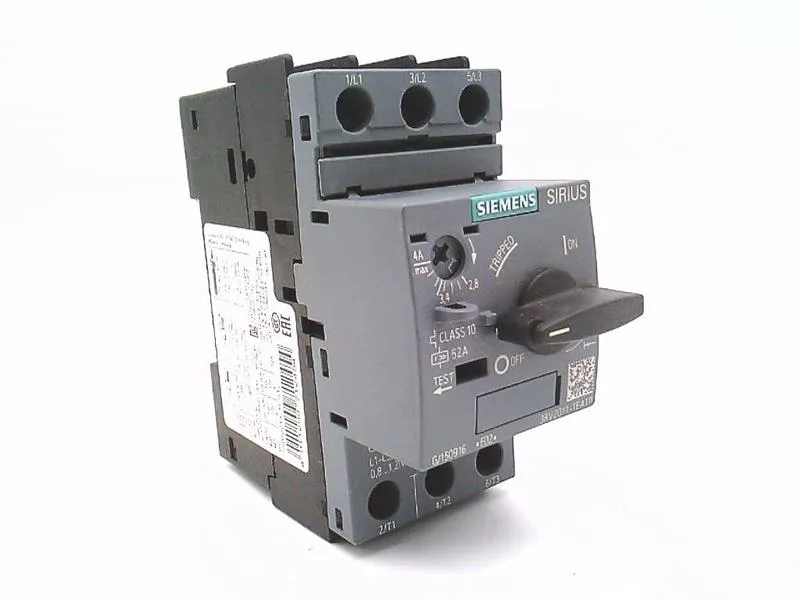

Siemens SIRIUS 3RV2011-1EA10 motor protection circuit breaker, Trip Class 10, 45 mm width, 100 kA breaking capacity at 400 V, screw and snap-on DIN rail mount.

$30.48Ref. price · indicative, final on quote

Add to RFQ

Siemens 3RV2011-1EA10 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RV2011-1EA10 — Identification
Parameter	Value
Series	SIRIUS
Product designation	Circuit breaker
Frame size	S00

3RV2011-1EA10 — Electrical
Parameter	Value
Rated operational current (Ie)	4 A
Rated voltage	20 ... 690 V
Rated voltage, AC-3 (max.)	690 V
Rated frequency	50 ... 60 Hz
Rated insulation voltage (Ui), pollution degree 3	690 V
Rated impulse withstand voltage (Uimp)	6 kV
Number of poles	3
Power loss (AC, hot)	7.25 W
Power loss, per pole (AC, hot)	2.4 W

3RV2011-1EA10 — Protection & Tripping
Parameter	Value
Overload release setting range	2.8 ... 4 A
Instantaneous short-circuit trip current	52 A
Trip class	CLASS 10
Breaking capacity at 240 V (AC)	100 kA
Breaking capacity at 400 V (AC)	100 kA
Breaking capacity at 500 V (AC)	100 kA
Breaking capacity at 690 V (AC)	6 kA
Breaking capacity at 240 V	100 kA
Breaking capacity at 690 V	4 kA
Short-circuit trip type	magnetic
Overload release type	thermal
Short-circuit protection	Yes
Phase-failure detection	Yes
Ground-fault detection	No
Auxiliary switch extendable	Yes

3RV2011-1EA10 — Endurance & Switching
Parameter	Value
Endurance, main contacts (typ.)	100 000
Endurance, auxiliary contacts (typ.)	100 000
Switching frequency, AC-3 (max.)	15 1/h
Auxiliary CO (changeover) contacts	0

3RV2011-1EA10 — Connections
Parameter	Value
Main-circuit terminal type	screw-type terminals
Main-circuit connector arrangement	Top and bottom
Conductor cross-section, solid / stranded	2x (0,75 ... 2,5 mm²), 2x 4 mm²
Conductor cross-section, finely stranded with ferrule	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor range, AWG (main contacts)	2x (18 ... 14), 2x 12

3RV2011-1EA10 — Mechanical
Parameter	Value
Height	97 mm
Width	45 mm
Depth	97 mm
Mounting method	screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting position	any

3RV2011-1EA10 — Environmental
Parameter	Value
Operating temperature	-20 ... +60 °C
Storage temperature	-50 ... +80 °C
Transport temperature	-50 ... +80 °C
Relative humidity (operation)	10 ... 95 %
Max. installation altitude	2 000 m

3RV2011-1EA10 — Specifications
Parameter	Value
Design Of The Product	For motor protection

Product details

Motor Protection Circuit Breaker for Panel-Build and Retrofit

Mounting and Clearance

Clearance requirements: 50 mm above and below, 30 mm to the side, and 0 mm forward/backward from the mounting surface — no extra breathing space needed behind the DIN rail. Dimensions are 97 mm deep by 97 mm high, so it sits flush in a standard 100 mm deep enclosure.

Rated operational voltage spans 20 to 690 V. Short-circuit breaking capacity at 500 V is also 100 kA, dropping to 4 kA at 690 V — still adequate for most 690 V distribution systems.
