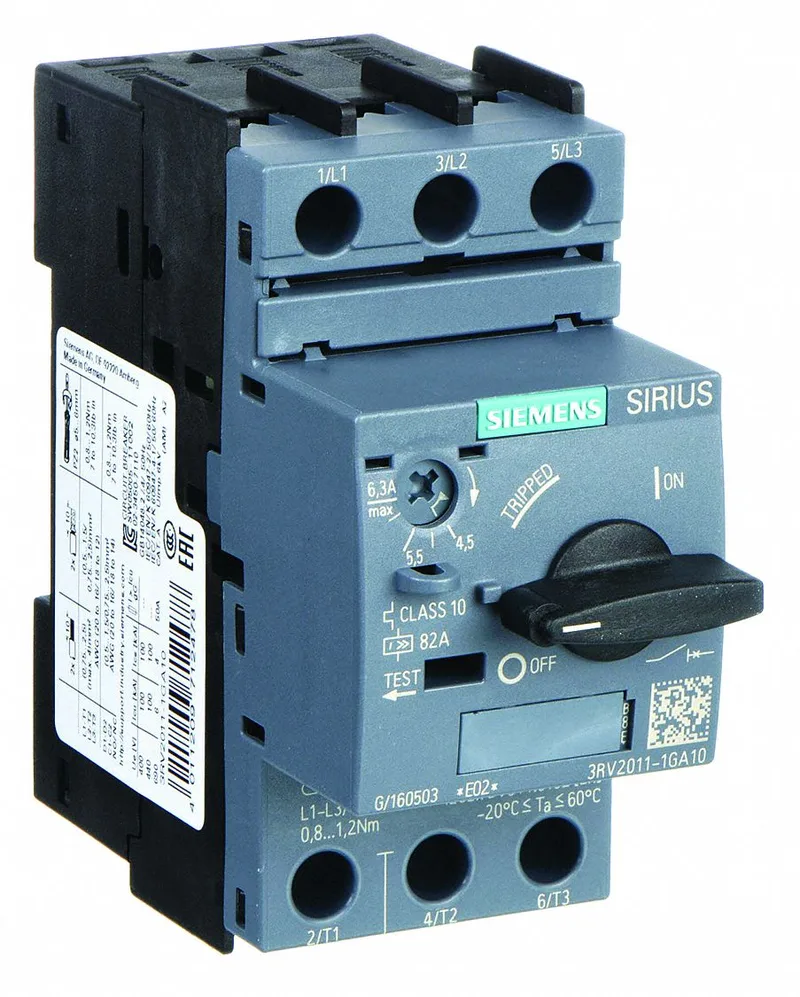

Siemens SIRIUS 3RV2011-1GA10 motor protection circuit breaker, 6.3 A at 480/600 V, 100 kA breaking capacity at 400 V, Class 10 trip, phase failure detection, screw terminals.
| Parameter | Value |
|---|---|
| Series | SIRIUS |
| Product designation | Circuit breaker |
| Frame size | S00 |
| Parameter | Value |
|---|---|
| Rated operational current (Ie) | 6.3 A |
| Rated voltage | 20 ... 690 V |
| Rated voltage, AC-3 (max.) | 690 V |
| Rated frequency | 50 ... 60 Hz |
| Rated insulation voltage (Ui), pollution degree 3 | 690 V |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Number of poles | 3 |
| Power loss (AC, hot) | 7.25 W |
| Power loss, per pole (AC, hot) | 2.4 W |
| Parameter | Value |
|---|---|
| Overload release setting range | 4.5 ... 6.3 A |
| Instantaneous short-circuit trip current | 82 A |
| Trip class | CLASS 10 |
| Breaking capacity at 240 V (AC) | 100 kA |
| Breaking capacity at 400 V (AC) | 100 kA |
| Breaking capacity at 500 V (AC) | 100 kA |
| Breaking capacity at 690 V (AC) | 6 kA |
| Breaking capacity at 240 V | 100 kA |
| Breaking capacity at 690 V | 4 kA |
| Short-circuit trip type | magnetic |
| Overload release type | thermal |
| Short-circuit protection | Yes |
| Phase-failure detection | Yes |
| Ground-fault detection | No |
| Auxiliary switch extendable | Yes |
| Parameter | Value |
|---|---|
| Endurance, main contacts (typ.) | 100 000 |
| Endurance, auxiliary contacts (typ.) | 100 000 |
| Switching frequency, AC-3 (max.) | 15 1/h |
| Auxiliary CO (changeover) contacts | 0 |
| Parameter | Value |
|---|---|
| Main-circuit terminal type | screw-type terminals |
| Main-circuit connector arrangement | Top and bottom |
| Conductor cross-section, solid / stranded | 2x (0,75 ... 2,5 mm²), 2x 4 mm² |
| Conductor cross-section, finely stranded with ferrule | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Conductor range, AWG (main contacts) | 2x (18 ... 14), 2x 12 |
| Parameter | Value |
|---|---|
| Height | 97 mm |
| Width | 45 mm |
| Depth | 97 mm |
| Mounting method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715 |
| Mounting position | any |
| Parameter | Value |
|---|---|
| Operating temperature | -20 ... +60 °C |
| Storage temperature | -50 ... +80 °C |
| Transport temperature | -50 ... +80 °C |
| Relative humidity (operation) | 10 ... 95 % |
| Max. installation altitude | 2 000 m |
| Parameter | Value |
|---|---|
| Design Of The Product | For motor protection |
Rated at 6.3 A at both 480 V and 600 V, it delivers a breaking capacity of 100 kA at 400 V — enough to handle high-fault utility feeds without cascading upstream breakers.
Clearance requirements: 50 mm above and below, 30 mm to the side, and zero forward or backward clearance needed. That zero backward clearance means you can butt it against a backplane or another rail-mounted device.
Rated 6.3 A at 480 V and 600 V, with a breaking capacity of 100 kA at 400 V. Trip class is Class 10. Phase failure detection is included.
Snap-on or screw mount on 35 mm DIN rail per DIN EN 60715. Requires 50 mm clearance above and below, 30 mm to the side, and zero forward/backward clearance.
