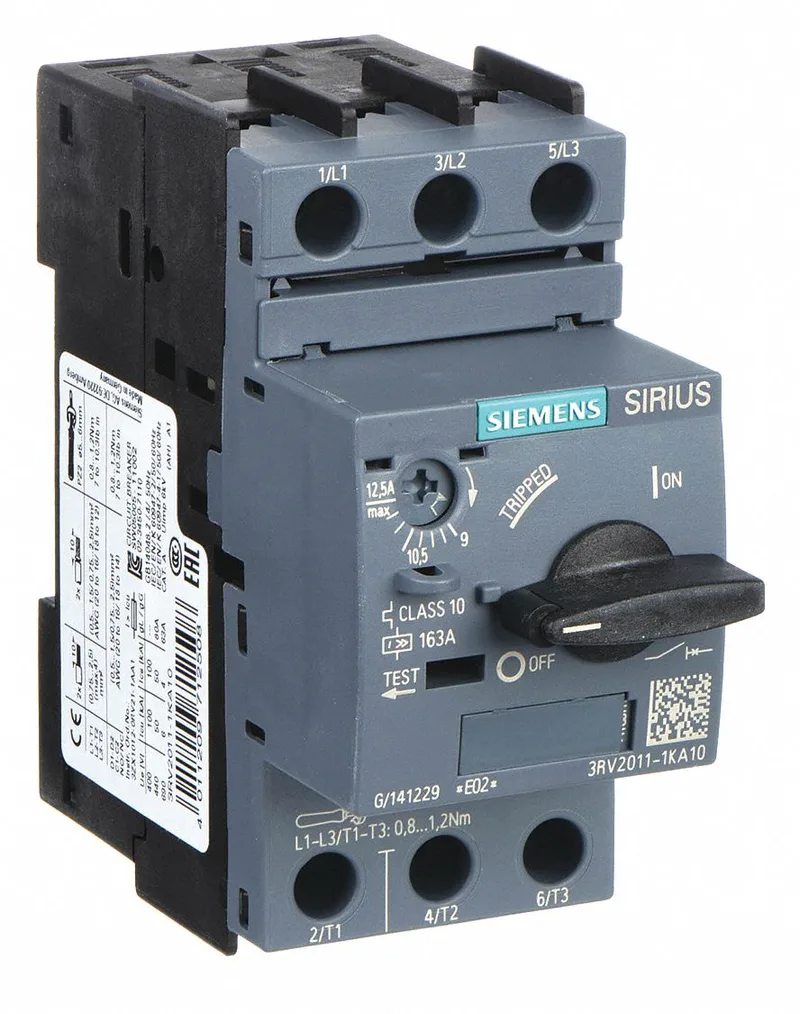

Siemens 3RV2011-1KA10 — Motor Protection Circuit Breakers (MPCB)

Siemens 3RV2011-1KA10 SIRIUS Motor Protection Circuit Breake

MPN3RV2011-1KA10
Active

Siemens SIRIUS motor protection circuit breaker, 3RV2011-1KA10, Class 10 trip, 100 kA breaking capacity at 400 V, phase failure detection, screw terminals.

$33.15Ref. price · indicative, final on quote
Siemens 3RV2011-1KA10 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RV2011-1KA10 — Identification
ParameterValue
SeriesSIRIUS
Product designationCircuit breaker
Frame sizeS00
3RV2011-1KA10 — Electrical
ParameterValue
Rated operational current (Ie)12.5 A
Rated voltage20 ... 690 V
Rated voltage, AC-3 (max.)690 V
Rated frequency50 ... 60 Hz
Rated insulation voltage (Ui), pollution degree 3690 V
Rated impulse withstand voltage (Uimp)6 kV
Number of poles3
Power loss (AC, hot)9.25 W
Power loss, per pole (AC, hot)3.1 W
3RV2011-1KA10 — Protection & Tripping
ParameterValue
Overload release setting range9 ... 12.5 A
Instantaneous short-circuit trip current163 A
Trip classCLASS 10
Breaking capacity at 240 V (AC)100 kA
Breaking capacity at 400 V (AC)100 kA
Breaking capacity at 500 V (AC)42 kA
Breaking capacity at 690 V (AC)6 kA
Breaking capacity at 240 V100 kA
Breaking capacity at 690 V4 kA
Short-circuit trip typemagnetic
Overload release typethermal
Short-circuit protectionYes
Phase-failure detectionYes
Ground-fault detectionNo
Auxiliary switch extendableYes
3RV2011-1KA10 — Endurance & Switching
ParameterValue
Endurance, main contacts (typ.)100 000
Endurance, auxiliary contacts (typ.)100 000
Switching frequency, AC-3 (max.)15 1/h
Auxiliary CO (changeover) contacts0
3RV2011-1KA10 — Connections
ParameterValue
Main-circuit terminal typescrew-type terminals
Main-circuit connector arrangementTop and bottom
Conductor cross-section, solid / stranded2x (0,75 ... 2,5 mm²), 2x 4 mm²
Conductor cross-section, finely stranded with ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor range, AWG (main contacts)2x (18 ... 14), 2x 12
3RV2011-1KA10 — Mechanical
ParameterValue
Height97 mm
Width45 mm
Depth97 mm
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting positionany
3RV2011-1KA10 — Environmental
ParameterValue
Operating temperature-20 ... +60 °C
Storage temperature-50 ... +80 °C
Transport temperature-50 ... +80 °C
Relative humidity (operation)10 ... 95 %
Max. installation altitude2 000 m
3RV2011-1KA10 — Specifications
ParameterValue
Design Of The ProductFor motor protection

Product details

The 97 mm cube footprint and 45 mm width fit standard 45 mm module spacing on 35 mm DIN rail. Screw terminals for the main circuit accept 2x (0.75–2.5 mm²) solid or stranded, or 2x 4 mm² — sized for motor branch circuit conductors. The gL/gG fuse backup values at 400 V (63 A,), 500 V (50 A,), and 690 V (40 A,) define the upstream fuse limits for selective coordination.

Mounting position is any, with clearance requirements: 50 mm upward and downward, 30 mm at the side, zero forward and backward. The M3 main contact screws are standard for panel wiring.

Frequently asked questions

What is the short-circuit breaking capacity of this breaker?

100 kA at both 240 V and 400 V. At 500 V it is rated 42 kA, and at 690 V it is 4 kA.

Does the 3RV2011-1KA10 include phase failure detection?

Yes, phase failure detection is built into this device. Ground fault detection is not included.

What trip class is this circuit breaker?

Class 10, which means it will trip within 10 seconds at 7.2× the thermal current setting — standard for general-purpose motor protection.

MPN
3RV2011-1KA10
